In this process, the tooth profile of gears is ground using a gear profile grinding machine. A grinding wheel shaped to match the gear's tooth profile moves up and down while cutting material from the entire tooth surface, achieving precise forming and fine finishing that meets stringent design requirements.

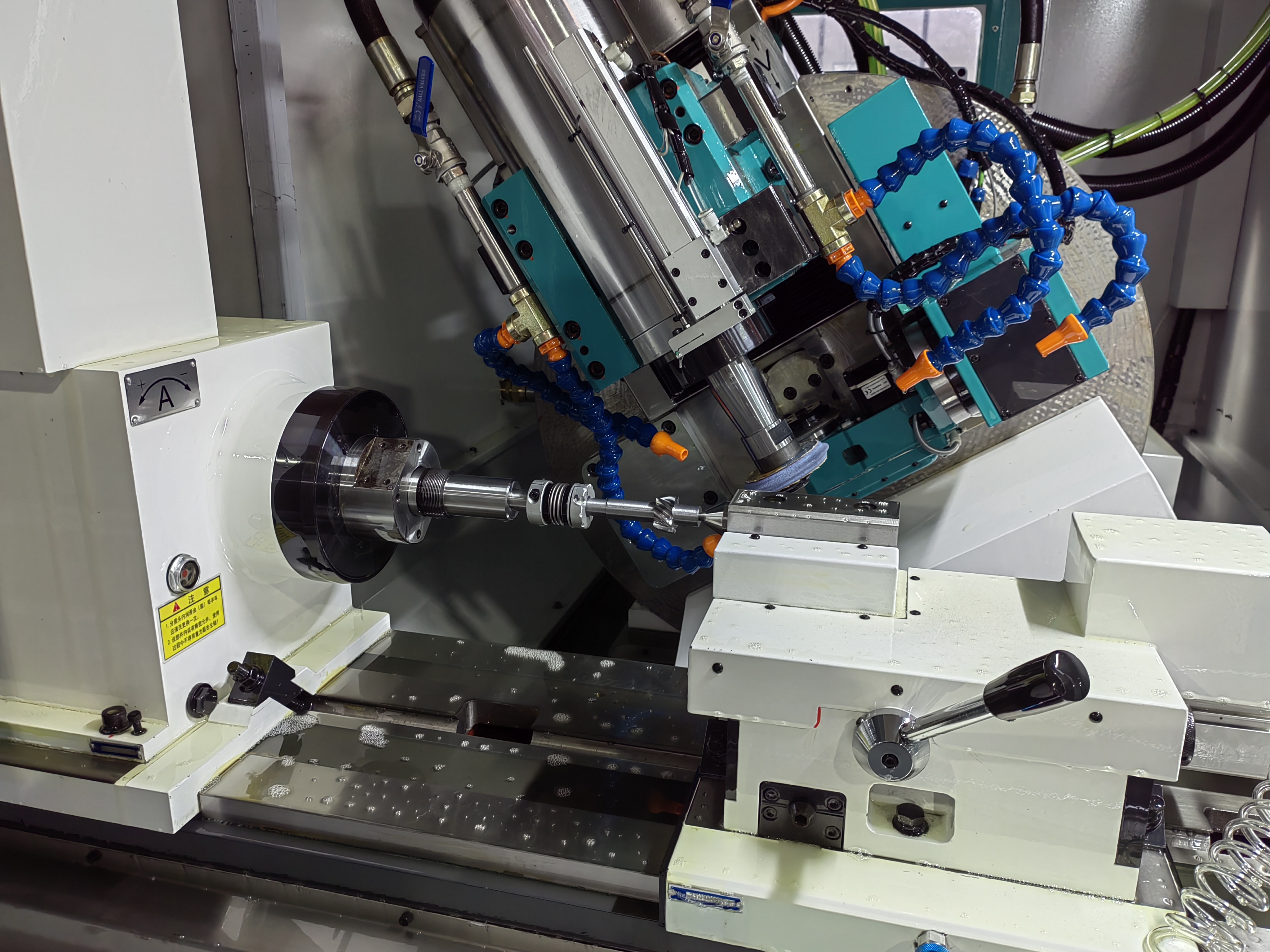

A gear profile grinding machine specifically targets the processing of gear tooth profiles. During this process, a grinding wheel whose shape matches the gear's tooth profile rotates, cutting material from the entire tooth slot while the workpiece itself also rotates. This synchronized rotation ensures uniform material removal, guaranteeing accurate formation and fine finishing of the gear teeth, meeting strict design specifications. Forming grinding is typically carried out using specialized equipment known as a gear profile grinding machine.
- Real-time Monitoring: The online measurement system of a gear profile grinding machine can monitor the dimensions and shape of the gear in real time during the grinding process, providing immediate feedback to the control system for
- Reduced Scrap Rate: By promptly detecting and correcting errors, it significantly reduces the number of gears with dimensional inaccuracies, saving on material costs.
- Optimized Process Parameters: Data collected allows engineers to analyze and optimize grinding parameters such as feed rate and wheel speed, finding the optimal balance for processing.
- Shortened Inspection Time: Allows this process to be completed without stopping the machine, reducing non-value-added time consumption.
- Automated Workflow: When integrated into automated production lines, it enables continuous production and unattended operation, further enhancing productivity.
- Fire Risk Prevention: Sparks or high temperatures generated during grinding can ignite flammable materials nearby, especially when handling oil-based coolants. The fire extinguisher port can quickly release fire suppression agents upon detection of fire hazards.
- Protection of Equipment and Personnel: Rapid response mechanisms help prevent damage to equipment and potential personal injury, ensuring a safe factory environment.
Due to their superior performance, gear profile grinding machines are widely used in industries such as automotive manufacturing, aerospace, and mechanical engineering. Many critical components in these industries require forming grinding to ensure dimensional accuracy and smoothness, thereby safeguarding the overall performance and reliability of machinery.
1. Workpiece Preparation and Installation: Clean the workpiece of dirt or debris before carefully installing the gear to be processed onto the worktable and securely clamping it.
2. Grinding Wheel Preparation and Alignment: Use the dressing tool on the gear profile grinding machine to dress the grinding wheel so its contour matches the target gear; use precision measuring equipment to ensure the wheel's position relative to the gear is accurately aligned for processing accuracy.
3. Parameter Setting and Programming: Input process parameters such as feed rate and wheel speed into the control panel of the gear profile grinding machine.

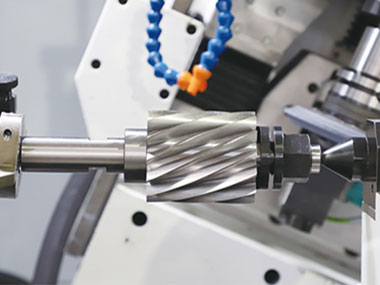

4. Gear Grinding: Follow the preset program to grind each tooth surface and slot, maintaining continuous contact between the wheel and workpiece to ensure accurate tooth formation.
5. Online Measurement: After grinding, inspect and measure the gear to ensure compliance with requirements.
6. Post-processing (Optional): Depending on application needs, additional surface treatments such as coating or hardening may be applied to the gear.
7. Packaging and Delivery: To prevent damage, package high-quality gears in wooden crates before sending them to customers.
The entire grinding process with a gear profile grinding machine emphasizes the importance of each step from workpiece preparation to final quality inspection, ensuring every gear produced meets strict quality standards. Additionally, modern gear profile grinding machines often come equipped with advanced automation and measurement technologies, further improving production efficiency and product quality.
Gear profile grinding machine plays an essential role in precision manufacturing, starting with workpiece preparation and installation, followed by precise alignment and positioning of the grinding wheel, then meticulous grinding of the gear tooth surfaces, and finally, rigorous inspection and measurement to verify the quality of the finished product.
The advantages brought about by adopting the gear profile grinding machine process include enhanced gear quality, effective cost reduction, significant increases in production efficiency, and optimized machining accuracy. This not only ensures the performance of the final product but also provides economic benefits to manufacturers.
