Views: 0 Author: Site Editor Publish Time: 2025-09-19 Origin: Site
Ever wondered how gears are precisely crafted for heavy-duty applications? These machines ensure accuracy and efficiency in manufacturing. In this post, you'll learn about the importance of gear cutting in heavy-duty production and discover the capabilities of the 12 module capacity CNC vertical gear cutter.
CNC vertical gear cutting uses computer numerical control to automate the cutting process on a vertical axis. This method machines gears by rotating the workpiece vertically while the cutting tool shapes the gear teeth. It allows precise control over gear dimensions and tooth profiles, essential in heavy-duty gear production. The CNC system programs the machine to follow exact specifications, reducing human error and improving repeatability.
Vertical Spindle Orientation: The cutting tool moves vertically, which improves chip evacuation and cooling efficiency during cutting.
Direct Drive Spindles: These provide high rigidity and reduce vibrations, leading to more accurate gear teeth.
High Rigidity Machine Structure: Heavy, stable frames minimize deflection and maintain precision during heavy cutting loads.
Advanced CNC Controls: Fanuc or Siemens controls enable user-friendly programming, allowing quick setup and flexible gear design changes.
Automation Compatibility: Integration with loaders and robots supports continuous production and reduces manual handling.
Multi-Process Capability: Machines can perform hobbing, skiving, milling, and finishing on one platform, increasing versatility.
Improved Precision: Vertical orientation and direct-drive spindles ensure consistent tooth profiles and tight tolerances.
Faster Cycle Times: Efficient chip removal and stable cutting conditions allow higher cutting speeds.
Enhanced Surface Quality: Reduced vibration and precise tool control produce smoother gear tooth surfaces.
Reduced Tool Wear: Better cooling and chip evacuation extend tool life, lowering operating costs.
Space Efficiency: Vertical machines have a smaller footprint compared to horizontal counterparts, saving factory floor space.
Flexibility: They handle a wide range of gear sizes and types, from small shafts to large gear wheels.
Tip: Ensure your CNC vertical gear cutter is equipped with direct drive spindles and advanced CNC controls to maximize precision and reduce cycle times in heavy-duty gear manufacturing.
The 12 module capacity CNC vertical gear cutter is designed to handle medium to large gear modules, typically up to 12 mm. It supports workpiece diameters up to approximately 500 mm and lengths reaching 800 mm, making it ideal for heavy-duty gear production. The machine features a direct drive workpiece spindle, ensuring high rigidity and minimal vibration during cutting. Its vertical spindle orientation optimizes chip evacuation and cooling, which helps maintain tool life and cutting accuracy.
The machine frame is constructed from heavy-duty materials, often weighing over 16 tons, to provide stability and reduce deflection under heavy cutting loads. Advanced CNC controls from industry leaders like Fanuc or Siemens allow for precise programming and quick setup changes. Optional automation systems, such as 2- or 4-station ring loaders and robotic loaders, enable continuous operation and reduce manual handling.
This gear cutter significantly boosts production efficiency through several mechanisms. First, its high rigidity and direct drive spindles allow higher cutting speeds without sacrificing precision, reducing cycle times. The vertical configuration improves chip removal, preventing heat buildup and tool wear, which lowers downtime for tool changes and maintenance.
Automation options streamline loading and unloading, enabling near-continuous operation and reducing labor costs. The machine's multi-process capability—performing hobbing, skiving, milling, and finishing on a single platform—eliminates the need for multiple setups, further speeding production.
Additionally, the CNC system's user-friendly interface and dialog-based programming simplify complex gear profiles, allowing faster changeovers between different gear types and sizes. This flexibility optimizes machine utilization and supports just-in-time manufacturing demands.

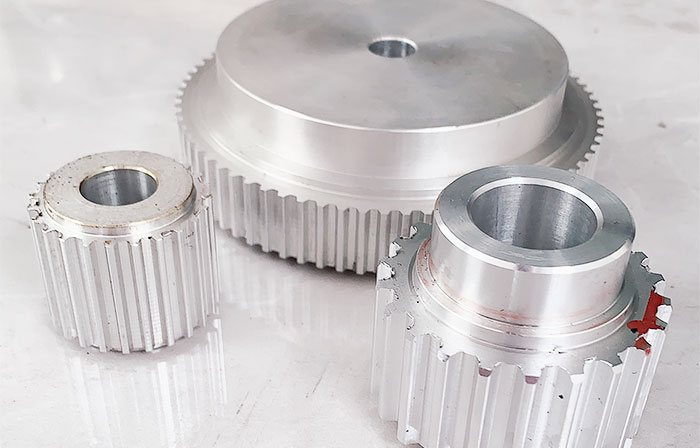

The 12 module capacity vertical gear cutter handles a broad range of gear types, including spur gears, worm gears, and gear shafts. It machines both individual parts and series production efficiently. Its capability to work on various materials, including steel and optionally non-ferrous metals, broadens its application scope.
The machine accommodates gears with diameters up to 500 mm and lengths up to 800 mm, covering many heavy-duty applications in automotive, aerospace, and industrial machinery sectors. Its adaptability extends to different cutting processes, from roughing to finishing, ensuring consistent high-quality gear teeth across diverse production needs.
The 12 module capacity CNC vertical gear cutter dramatically increases production speed. Its high rigidity and direct drive spindles allow cutting at faster speeds while maintaining accuracy. The vertical orientation promotes efficient chip evacuation, preventing heat buildup that could slow down the process. Automation options, such as ring loaders or robotic loaders, enable continuous operation by reducing manual loading and unloading times. Combined, these factors shrink cycle times and boost throughput, helping manufacturers meet tight deadlines and large order volumes.
Precision is critical in heavy-duty gear production. This CNC vertical gear cutter excels by providing consistent tooth profiles and tight tolerances. The machine's stable, heavy frame minimizes vibrations during cutting, which improves surface finish quality. Direct drive spindles reduce backlash, ensuring smooth, accurate tool movement. Advanced CNC controls allow precise programming of complex gear profiles, guaranteeing repeatability across production runs. The result: gears that meet stringent industry standards for durability and performance, reducing rework and scrap rates.
Downtime can cripple productivity. This gear cutter's design helps minimize it through reliable components and smart features. Efficient chip evacuation and cooling extend tool life, reducing the frequency of tool changes. The machine's robust construction withstands heavy loads, lowering the risk of breakdowns. Optional automation systems reduce manual handling errors that could cause delays. Furthermore, advanced CNC diagnostics assist in early detection of issues, allowing preventative maintenance before major failures occur. Together, these factors maximize machine uptime and production continuity.
Tip: Implement automation systems like robotic loaders on your CNC vertical gear cutter to reduce manual intervention and maximize continuous heavy-duty gear production.
The 12 module capacity CNC vertical gear cutter fits seamlessly into existing manufacturing setups. It supports popular CNC controls like Fanuc and Siemens, making programming and integration easier. Its design allows connection to standard automation systems, including ring loaders and robotic arms. These features ensure it works well alongside other machines and production lines without major modifications. Manufacturers can upgrade their gear cutting capabilities without disrupting current workflows or investing heavily in new infrastructure.
Automation plays a key role in maximizing the cutter's potential. The machine supports automated loading and unloading, reducing manual labor and speeding up production cycles. Optional robotic loaders can handle parts directly at the spindle, minimizing handling errors and boosting safety. Advanced CNC diagnostics enable real-time monitoring of machine health and performance. This data supports predictive maintenance, helping avoid unexpected downtime. Integration with smart factory systems allows remote control and process optimization, aligning the cutter with Industry 4.0 standards.
This gear cutter offers scalability for growing production demands. Its modular design lets manufacturers add automation stations or upgrade control systems as needed. It can handle a wide range of gear sizes and types, supporting diverse product lines without extra machines. The machine's flexible programming accommodates new gear profiles quickly, facilitating product changes and expansions. Its robust frame and reliable components ensure long-term operation even as production scales. This adaptability future-proofs investments, allowing businesses to expand capacity without replacing core equipment.

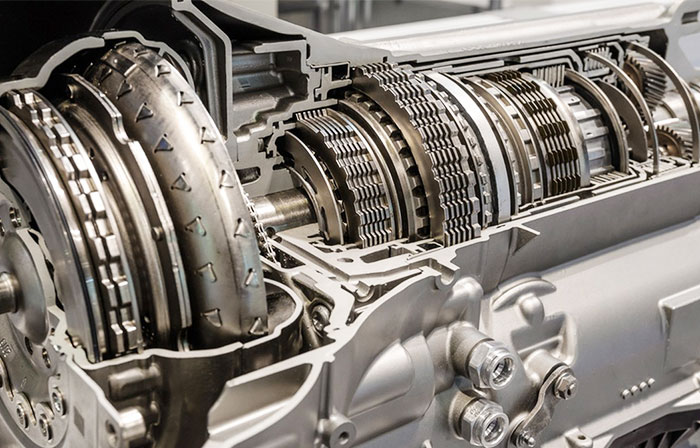

Several heavy-duty industries have adopted the 12 module capacity CNC vertical gear cutter to enhance their production capabilities. For example, automotive manufacturers producing large transmission gears report significant improvements in cycle times and gear quality. One manufacturer reduced gear production time by 30%, enabling faster delivery to assembly lines. Similarly, aerospace component producers use this cutter to machine gear shafts with complex profiles, achieving repeatable precision critical for safety and performance.
Industrial machinery makers benefit too. A company producing heavy equipment gears noted a drastic reduction in tool wear and maintenance downtime, thanks to the cutter's efficient chip evacuation and robust construction. This led to higher machine availability and lower operating costs. These success stories highlight the cutter's ability to handle demanding applications, delivering consistent results across diverse sectors.
Compared to traditional horizontal or manual gear cutting, the vertical CNC gear cutter offers clear advantages. Traditional methods often require multiple setups, increasing labor and time costs. In contrast, the vertical cutter performs hobbing, skiving, and finishing in one machine, streamlining workflows. Its direct drive spindle and heavy frame reduce vibrations, improving gear tooth accuracy beyond what manual or older machines can achieve.
Cycle times shrink considerably. For instance, a typical gear that took 45 minutes to hob manually can be produced in under 30 minutes using the CNC vertical cutter. The machine's automation options further cut non-cutting time by automating loading and unloading. This efficiency gain translates into higher throughput and lower per-part costs.
Quality improvements also stand out. Vertical CNC cutters produce smoother gear surfaces and tighter tolerances, reducing rework and scrap rates. Maintenance demands drop thanks to better cooling and chip management, unlike traditional machines prone to overheating and tool wear.
Users praise the 12 module capacity CNC vertical gear cutter for its reliability and ease of use. A gear production manager commented, "The machine's stability and precision have transformed our workflow. We can run longer shifts without quality dips." Another operator noted the intuitive CNC controls simplify programming complex gear profiles, speeding changeovers.
Maintenance teams appreciate the machine's robust design and diagnostic tools. One technician shared, "Downtime has decreased significantly because we catch issues early. The heavy-duty frame keeps vibrations low, extending tool life."
Automation integration receives positive feedback too. A factory supervisor said, "Robotic loaders reduced manual handling errors and improved safety. Our operators focus on quality control rather than repetitive tasks."
The 12 module capacity CNC vertical gear cutter enhances heavy-duty gear production with precision, speed, and flexibility. It offers efficient chip removal, reduced tool wear, and automation compatibility, significantly boosting throughput. This technology is poised for future advancements in smart manufacturing and scalability. Wuxi Geepro Gear Technology Co.,Ltd. provides this innovative solution, ensuring high-quality gear production and seamless integration into existing systems. Their product supports diverse industries, promising improved productivity and cost-effectiveness.
Q：What is a CNC Vertical Gear Cutting Machine?
A：A CNC Vertical Gear Cutting Machine automates the gear cutting process using computer numerical control on a vertical axis. It ensures precise gear dimensions and tooth profiles, essential for heavy-duty gear production.
Q：How does a CNC Vertical Gear Cutting Machine improve production efficiency?
A：It boosts efficiency with high rigidity, direct drive spindles, and automation options, allowing faster cutting speeds, reduced cycle times, and continuous operation, minimizing manual handling.
Q：Why choose a CNC Vertical Gear Cutting Machine over traditional methods?
A：It offers faster cycle times, improved precision, reduced tool wear, and enhanced surface quality compared to traditional horizontal or manual gear cutting methods.
Q：What are the benefits of using a CNC Vertical Gear Cutting Machine?
A：Benefits include improved precision, faster cycle times, enhanced surface quality, reduced tool wear, space efficiency, and flexibility in handling various gear sizes and types.
Q：How can I troubleshoot issues with a CNC Vertical Gear Cutting Machine?
A：Utilize advanced CNC diagnostics for early issue detection, ensure proper maintenance, and optimize chip evacuation and cooling to prevent common problems.
