Have you ever wondered how manufacturers achieve ultra-smooth, high-quality surfaces in precision components? The answer lies in the super finishing process.
Super finishing enhances surface quality, reduces friction, and improves durability. It works in tandem with techniques like surface lapping to achieve the finest finishes.
In this article, we’ll dive into the typical motions involved in a super finishing operation and explain how they contribute to exceptional results. Get ready to explore the details behind these precise movements.
Super finishing is a precise machining process used to improve the surface quality of metal components. It involves removing a very thin layer of material (0.005 to 0.02 mm) to achieve ultra-smooth finishes. This technique is often used after other finishing processes to refine surfaces further.
Super finishing aims for a high-quality finish that reduces friction and enhances durability. The process is different from regular grinding or polishing. It focuses on making the surface smoother and more uniform at microscopic levels.
While super finishing focuses on the finest surface finishes, other techniques like surface lapping and flat lapping also play a role in improving surface quality.
Surface lapping is typically used for polishing flat surfaces, removing imperfections, and improving dimensional accuracy.
Flat lapping uses an abrasive material to achieve a very fine surface by rubbing it against a workpiece in a controlled manner.
Unlike super finishing, these techniques tend to remove more material and focus on larger-scale smoothing, not the fine precision achieved in super finishing.
Super finishing can be applied to a wide range of materials, including:
Steel: Commonly used in automotive and aerospace applications.
Cast iron: Often used in engine parts and machinery.
Non-ferrous alloys: Such as aluminum, brass, and copper, typically in electronics and medical devices.
Each material requires specific techniques and abrasives to achieve the desired surface finish. Super finishing ensures that even hard-to-process materials like non-ferrous alloys can achieve exceptional surface smoothness and performance.
In super finishing, precise motions play a vital role in achieving a flawless surface finish. Let's explore the typical movements involved.
A key characteristic of super finishing is the use of light spring pressure. The tool, typically an abrasive stick, is held against the workpiece with just enough force to avoid over-cutting or creating uneven surfaces. This pressure ensures a smooth finish without damaging the material.
Oscillating motions involve the abrasive tool moving back and forth in short strokes, usually 2 to 5 mm. The frequency of these motions—ranging from 500 to 1,800 strokes per minute—helps refine the surface at a microscopic level. It smooths out the surface by gently abrading high points without affecting the overall shape of the component.
Feeding motions describe how the workpiece moves relative to the abrasive. Typically, the workpiece moves longitudinally at a slow pace, around 0.1 to 0.15 mm per revolution. This slow movement ensures that the abrasive is evenly distributed across the surface, enhancing uniformity and precision.
The rotational motion of the workpiece is another crucial factor. It rotates slowly, typically between 2 to 20 meters per minute, which ensures that the abrasive tool touches the surface evenly. Slower speeds are essential for achieving the finest surface finish by reducing the risk of introducing new defects.

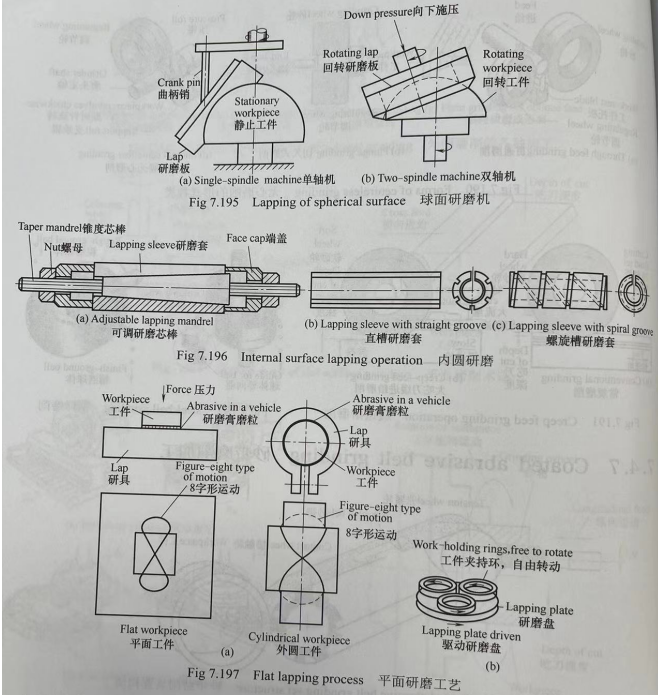

In addition to these basic motions, internal surface lapping can also be used. It involves fine-tuning the internal surfaces of cylindrical parts, often using an abrasive slurry. This process complements the primary motions of super finishing, ensuring that even the most difficult-to-reach areas are polished to perfection.
Understanding how each motion contributes to the surface finish is key to mastering super finishing. Let's dive into the details of how these motions impact the final result.
The oscillating motion of the abrasive tool has a direct effect on surface precision. When the frequency and amplitude of the oscillations are carefully controlled, it results in smoother surfaces. Higher frequencies (500–1,800 strokes per minute) help refine the surface at a micro-level, smoothing out tiny imperfections without affecting the overall shape. The smaller the amplitude (2-5 mm), the more precise the surface finish becomes.
Feeding motions, or the workpiece’s slow movement during super finishing, are essential for maintaining uniformity. The workpiece moves longitudinally, usually at 0.1 to 0.15 mm per revolution. This ensures that the abrasive is evenly distributed, which minimizes surface roughness. A controlled feed rate allows for a gradual, consistent finish, preventing unwanted grooves or inconsistencies.
Rotational speed plays a crucial role in controlling micro imperfections on the surface. With slow speeds (2 to 20 m/min), the abrasive tool can remove minute imperfections and achieve a high-quality finish. At higher speeds, there's a risk of uneven abrasion, which can introduce unwanted defects. Slower rotations provide a more controlled process, ensuring the surface is refined to perfection.
Internal surface lapping is a finishing technique used to smooth internal components, such as bores and cylinders. When paired with super finishing, it ensures that even the most intricate surfaces receive the same level of refinement. The abrasive slurry used in lapping complements the motions of super finishing, removing imperfections that may be left behind in areas difficult to reach. This combination enhances the overall quality of the finished product, especially in parts with complex geometries.
In super finishing, several specialized tools are used to achieve a smooth, high-quality surface finish. The most common tool is the abrasive stick. These sticks, made of fine-grit abrasives, are held against the workpiece under light spring pressure. They move in precise oscillating motions, rubbing the surface to remove small amounts of material. The oscillating motion ensures that no part of the workpiece is missed, creating an even finish across the surface.
Another common tool in super finishing is the abrasive tape. It moves in a similar oscillating motion, but it is more flexible, allowing it to conform to different shapes and contours of the workpiece. The abrasive tape can be used for both external and internal surface finishes.
Super finishing can be done using general-purpose machines or specialized machines designed for specific tasks.
General-purpose machines include lathes and grinding machines, which are versatile and can handle a variety of components. However, they may not be as precise as special-purpose machines for tasks like super finishing and flat lapping.
Special-purpose machines are built for specific types of super finishing tasks. For example, machines designed for flat lapping have a flat surface where the workpiece is held, and abrasives move in specific patterns to achieve a very fine finish. These machines are more precise and are often used for critical applications such as aerospace or automotive components.
Motors are the driving force behind the movements of super finishing tools. In general-purpose machines, motors control the rotation and oscillation of the tools. The precision of the finish depends on how accurately the motor can control the speed and movement of the tool. For example, slow rotational speeds (2 to 20 m/min) allow the abrasive to make precise contact with the surface, ensuring an even finish.
In specialized machines, motors provide even more control, adjusting the speed, pressure, and motion to meet the specific requirements of the workpiece. This fine-tuned control ensures that super finishing can be applied with a high degree of accuracy, improving the overall quality of the product.
The combination of precise tool movements and the power of motors is key to achieving the exceptional surface finishes associated with super finishing.
Understanding the typical motions in super finishing is essential for achieving high-quality, durable surfaces. Mastering these motions ensures precise results.
Integrating surface lapping, flat lapping, and internal surface lapping enhances the overall finishing process, ensuring superior finishes on complex components.
Choosing the right motor and controlling these motions optimize product quality and manufacturing efficiency, leading to better performance and longer-lasting parts.
