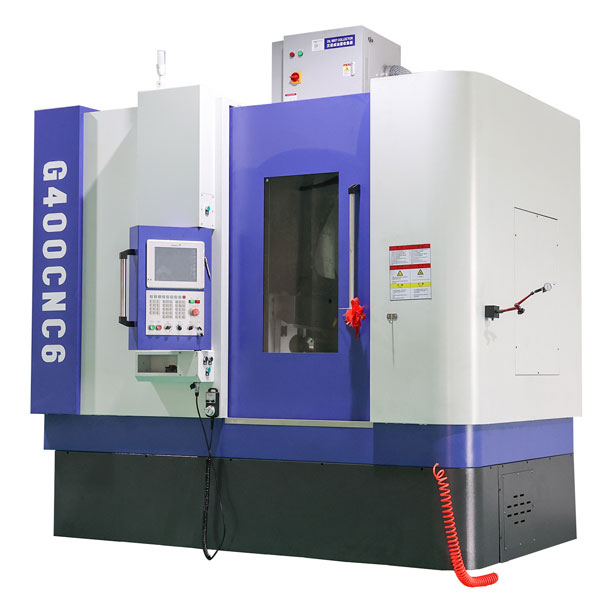

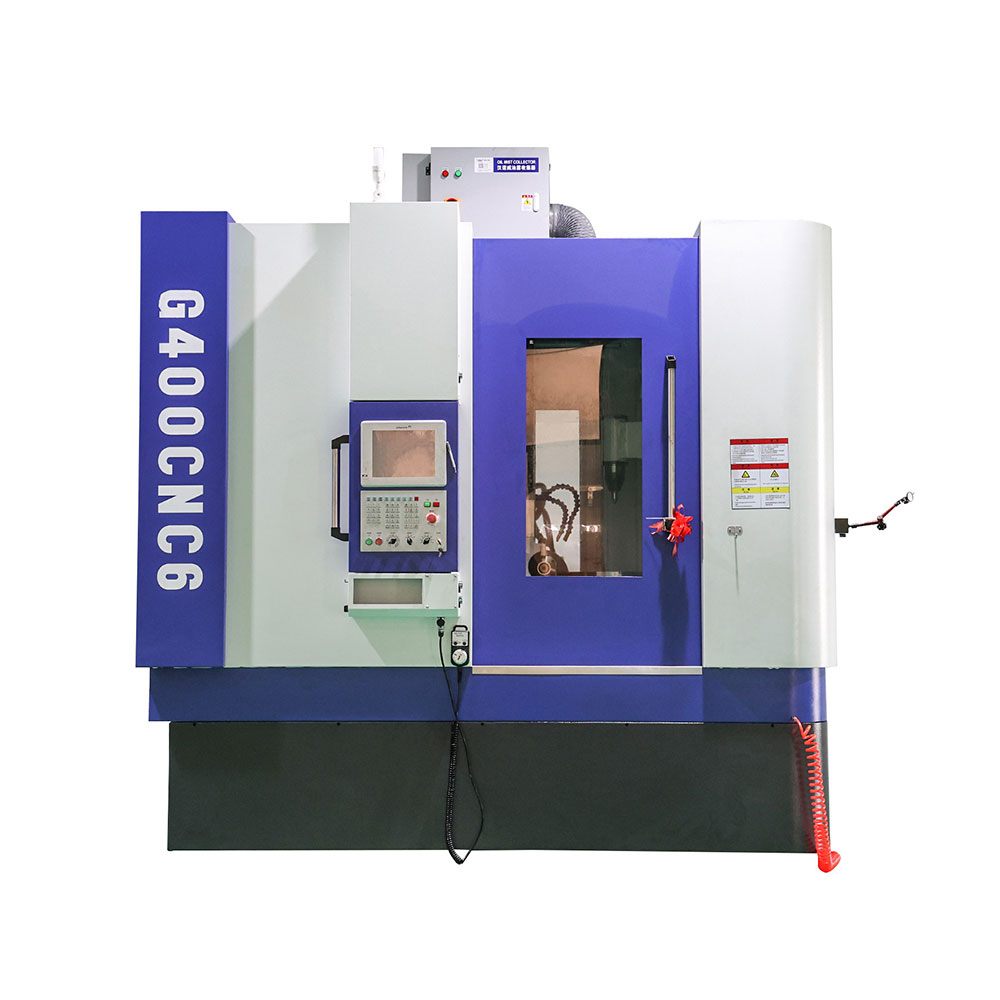

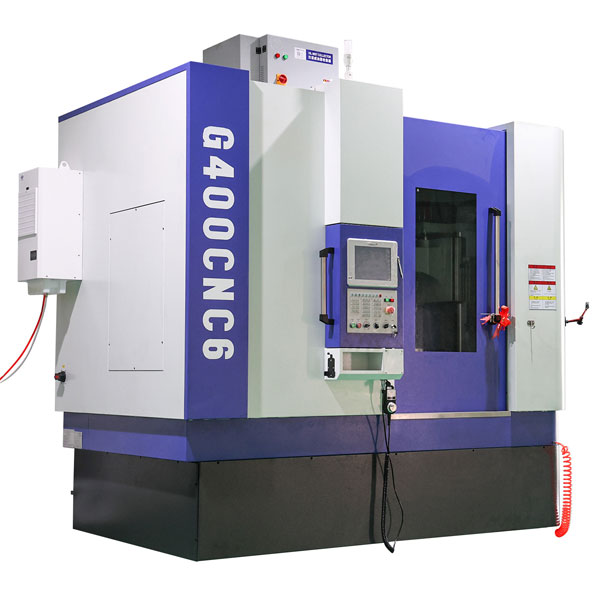

G400 Vertical 6 Axis CNC Hobbing Machine for Helical Spur Gear

G400 Vertical gear hobbing machine

1. The machine is equipped with an electronic gearbox (EGB).

2. Equipped with automatic chip removal device to automatically discharge iron foam;

3. Adopting Germany Siemens 828D numerical control system

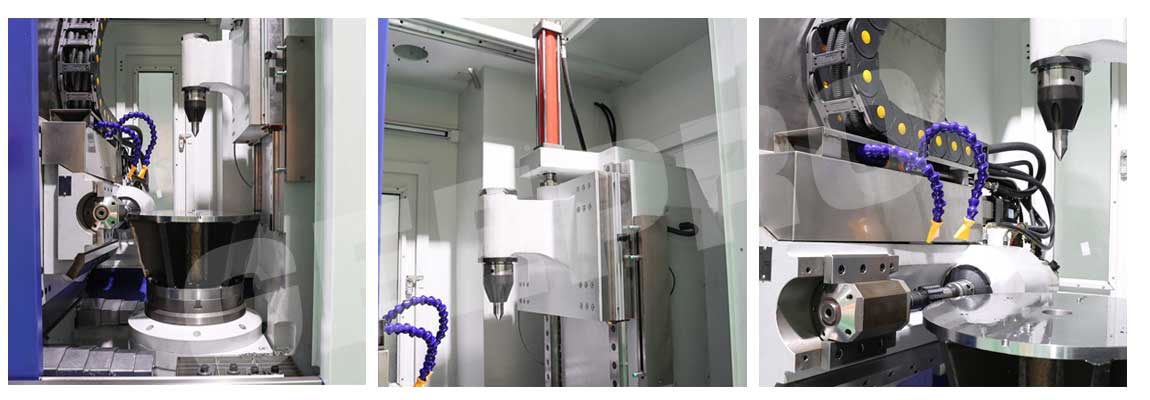

4. The clamping method of tool bar (tool spindle) is hydraulic automatic clamping and tensioning, hydraulic automatic loosening.

5. the electrical system has a fault diagnosis function

1. With a 6-axis vertical automation-loader, this machine guarantees a smooth transition from loading to unloading and from one piece of work to the next, maximizing productivity and minimizing downtime. The automation function eliminates the need for human intervention, this function allows for uninterrupted operation and increased production.

2. This series is capable of manufacturing 0.3-6 different models of cylindrical spur, helical gear, drum gear and small taper gear. Additionally, can be used to machine splines, synchronous pulleys, sprockets, worms, and various other non-conventional gearings.

3. The spindle's function is to automatically tension and release the tool's rod, this facilitates the operation. Its CNC abilities provide exceptional accuracy and consistency, which ensures that every operation produces the same exact results.

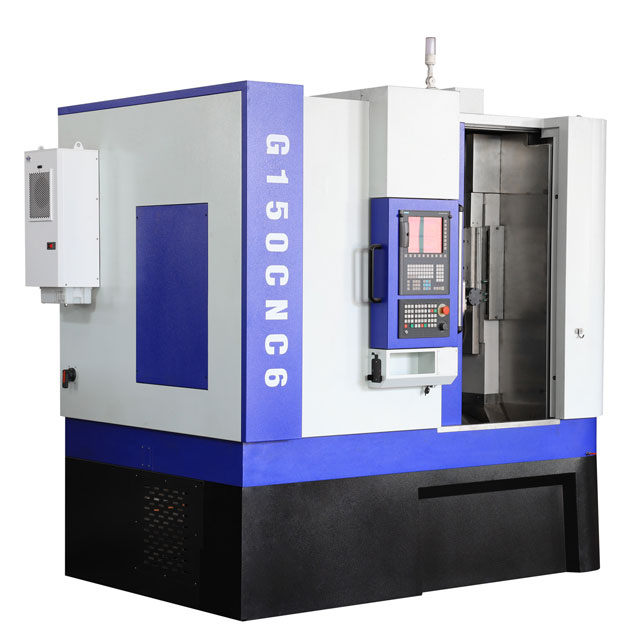

G150

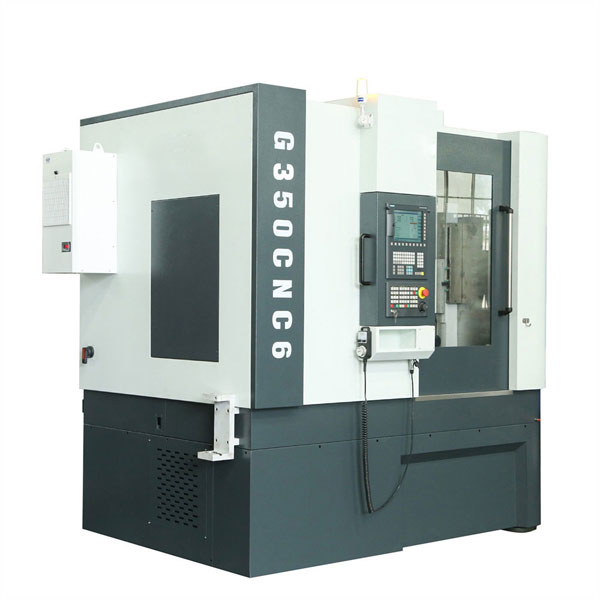

G350

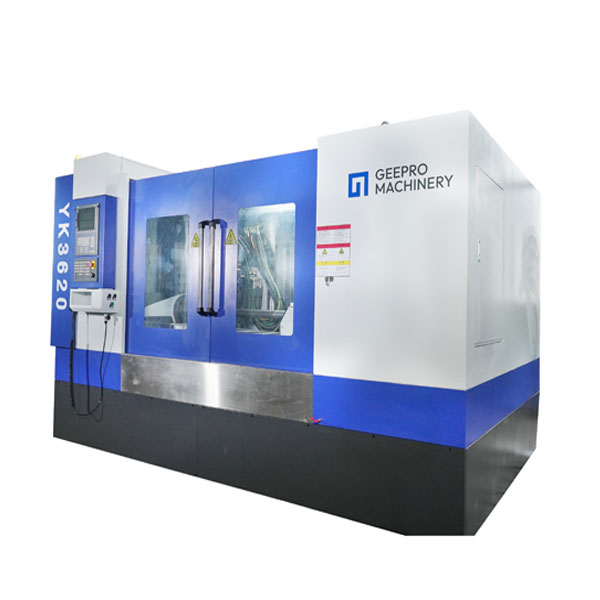

YK3620
