Product Description

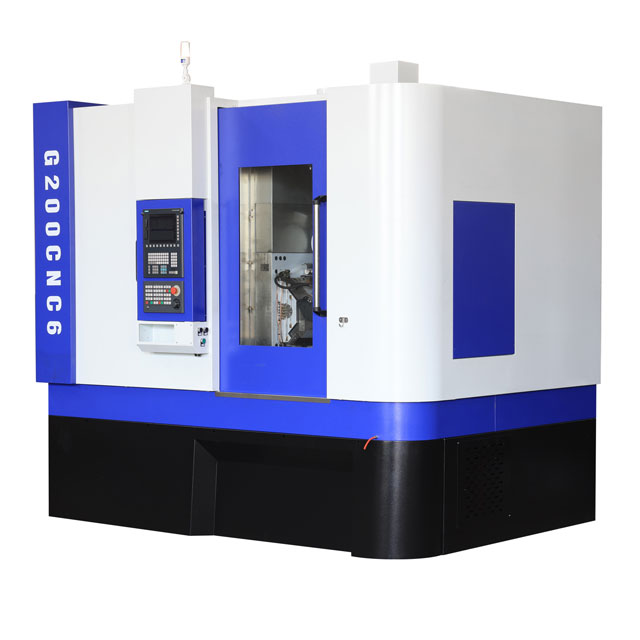

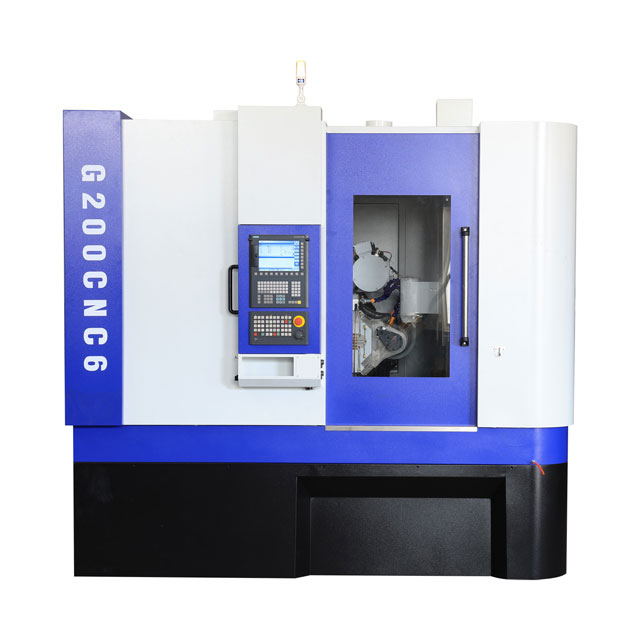

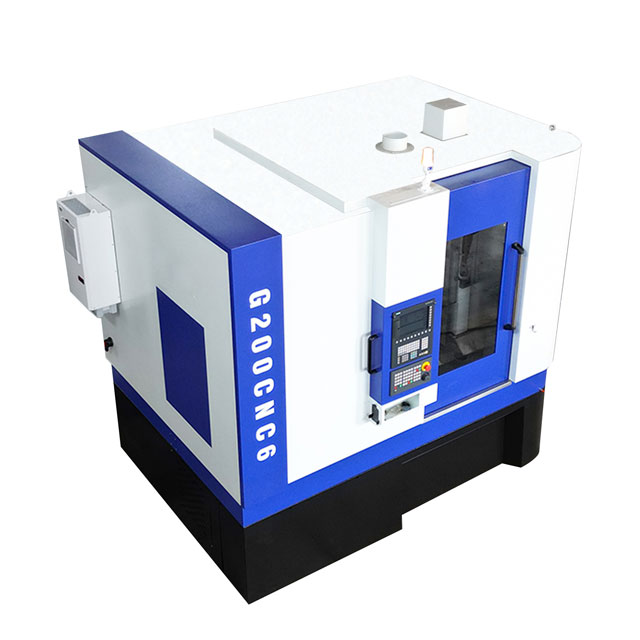

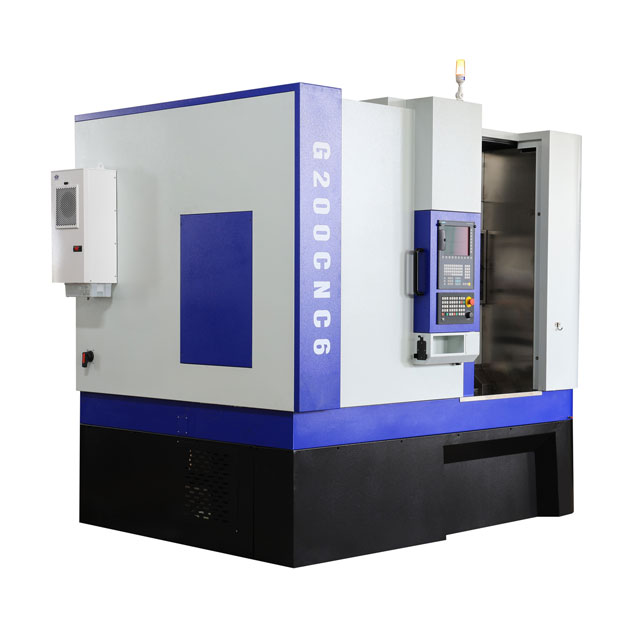

High-speed direct-drive CNC hobbing machine, processing the most common gears are straight-tooth cylindrical gears, used for transmission between parallel shafts; helical-tooth cylindrical gears, the tooth direction of the spiral, to provide a smoother transmission and load-bearing capacity;
High degree of automation: supports automated product lines, and can automatically complete the entire process from material clamping to finished product unloading; it also has an optional automatic tool changer to improve production efficiency;
Multifunctional design: processing spur gears, helical gears, worm gears, sprockets and other types of gears;
Siemens system drive;
It has been exported to many countries and regions and has received praise and recognition;
1. Although the machining diameter is 200 mm, the actual machining range is affected by the specific specifications of the machine, the configuration of the accessories and the process limitations, e.g. some machines may be limited by the choice of tools and the stability of the machining in the case of large diameters and small module sizes.
2. The CNC friendly interface facilitates the learning of the machine's operation, and it can also be operated via a short educational regimen.
3. 3-5 modulus, diameter 200 CNC gear hobbing machine, the need for customers to provide the modulus and the maximum diameter, you can carry out machine selection, and then through a series of conversions, to get the tooth depth, tooth width, number of teeth, and so on. In practice, it is also necessary to consider the hardness of the material, surface roughness requirements, heat treatment and other factors, as well as the precision level of the machine tool, tool configuration, etc., in order to ensure processing quality and efficiency.
| G200 The main technical parameters | ||
| The largest processing module | Mn | 5/6 |
| The largest machining diameter | mm | 200 |
| Tilt angle of tool rest | deg | 45L/R |
| Axial stroke | mm | 300 |
| Maximum speed of workpiece shaft | rpm | 210 |
| Maximum speed of hob shaft | rpm | 2500 or 1500 |
| Distance from hob center to workbench center | mm | 20-170 |
| Total power | Kw | 35 |
| Maximum hob diameter∗length | mm | 120∗180 |
| Specification of tool bar | mm | 16.22.27 |
| Machine tool appearance size | mm | 2780×2860×2760 |
| Total weight of machine tool | Kg | 8000 |

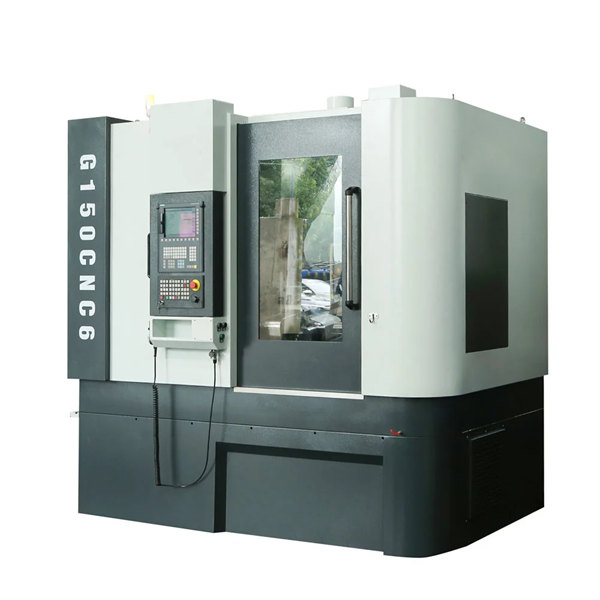

G150 gear hobbing machine

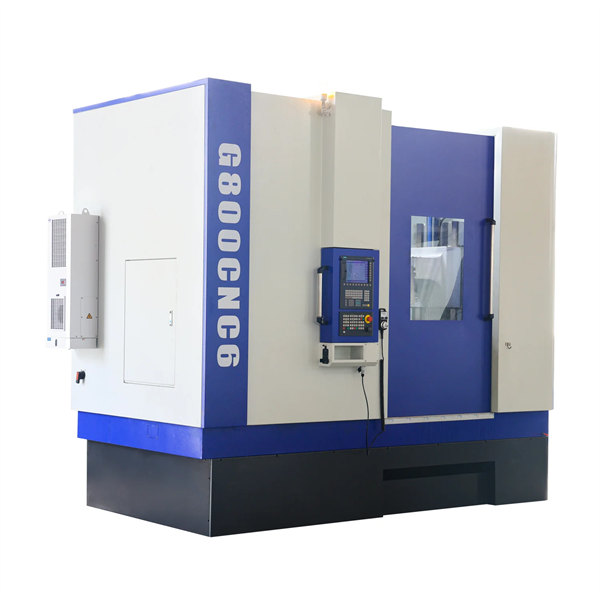

G800 gear hobber

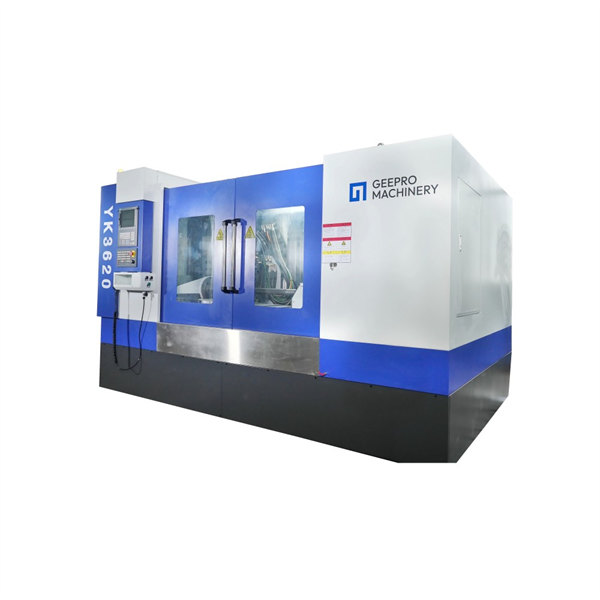

YK3620 gear cutting machine
