G Series G500 CNC Gear Hobbing Machine with Wet Cutting

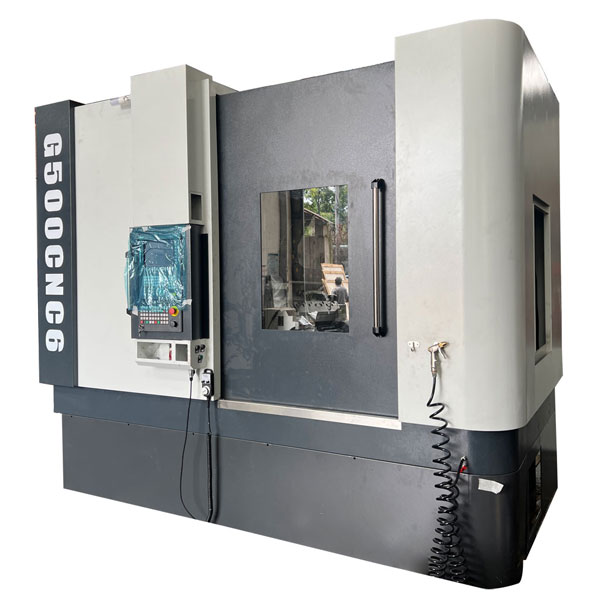

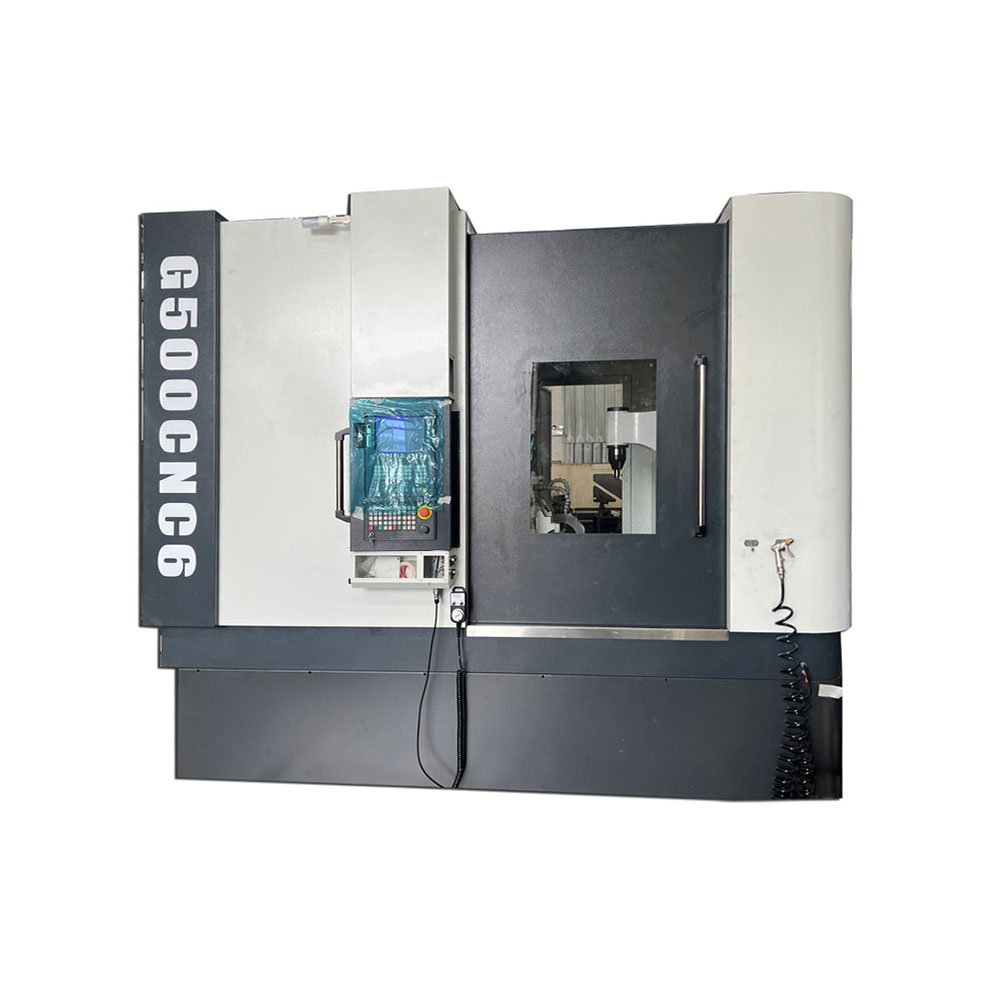

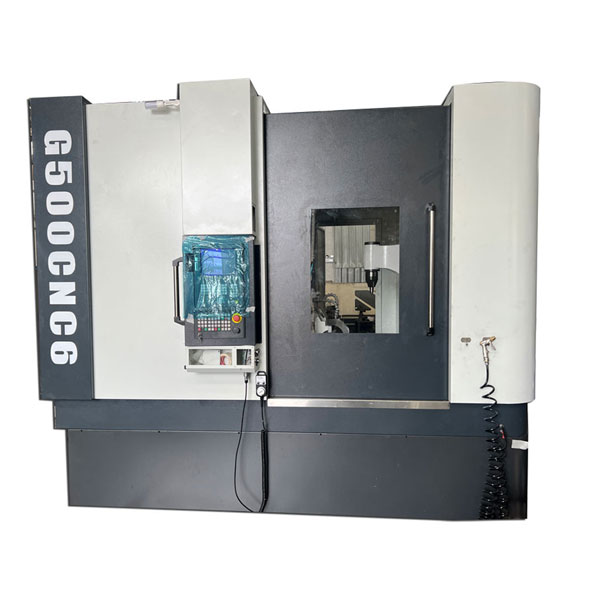

G500 gear hobbing machine

The Vertical G500 CNC Gear Hobbing machine with Siemens' system for horizontal/bevelged cutting is a universal CNC machine that has 6 different axes, and is designed to be used with the method of spreading out for the purpose of machining spurges, helical cuts, and timing belt pulleys, among other things.

The full automatic CNC hobbing machine's layout includes a hobbing axis and a movable table.

Exports to Europe: Belgium, the Netherlands, Russia, Belarus

Siemens system drive;

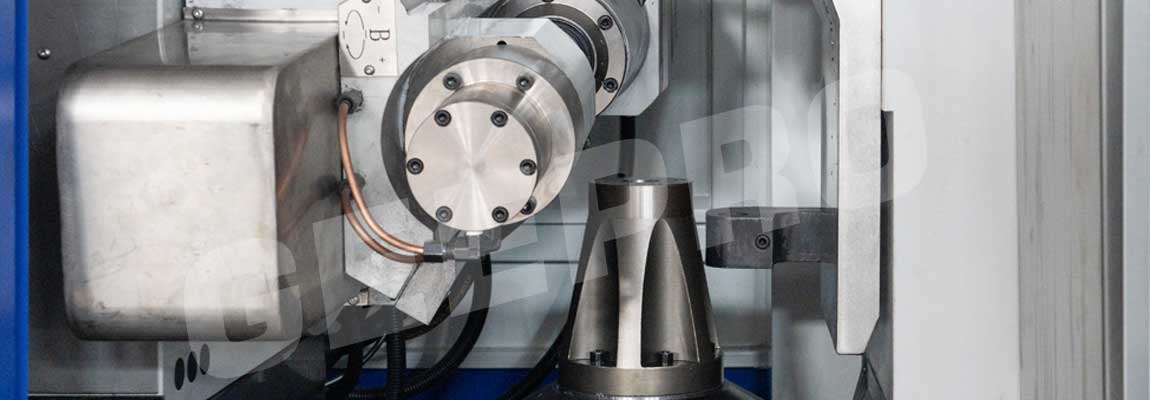

• The table is equipped with a hydraulic cylinder that moves the hobbing axis, and a ball screw is underneath the guideway to facilitate movement. In order to utilize the entire length of the worm's cutting mechanism, a cyclic motion around the axis is provided. This is accomplished with the help of Siemens' numerical control; a chip conveyor is also present; a programmable controller, operator's panel, and a loading and unloading device are all present. To personalize a geared hobbing machine, customers must supply the module number, machining diameter, tooth height/ tooth depth, and it is best to have a drawing, our technical experts can provide the correct product description.

• To customize a gear hobbing machine, customers are required to provide the module number, machining diameter, tooth height/tooth depth, it is better to have a drawing, our technical engineers can provide the product model more accurately.

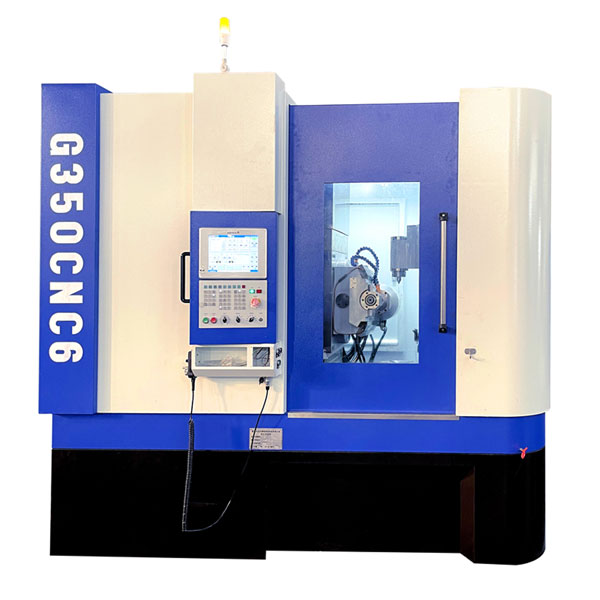

G350

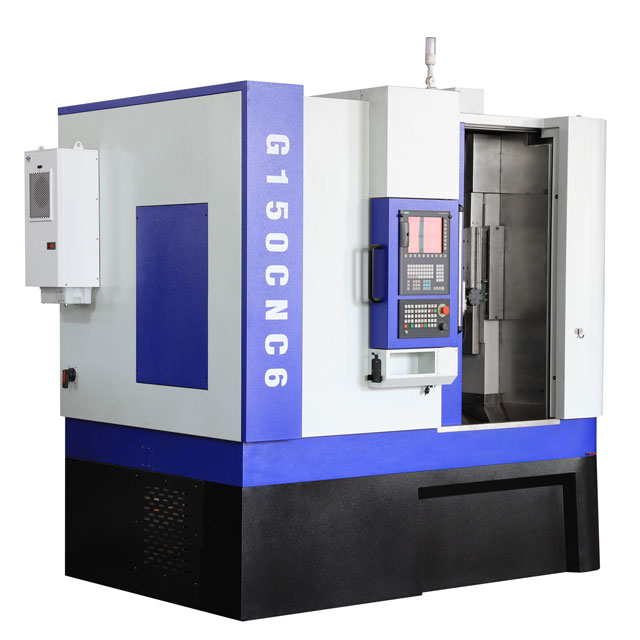

G150

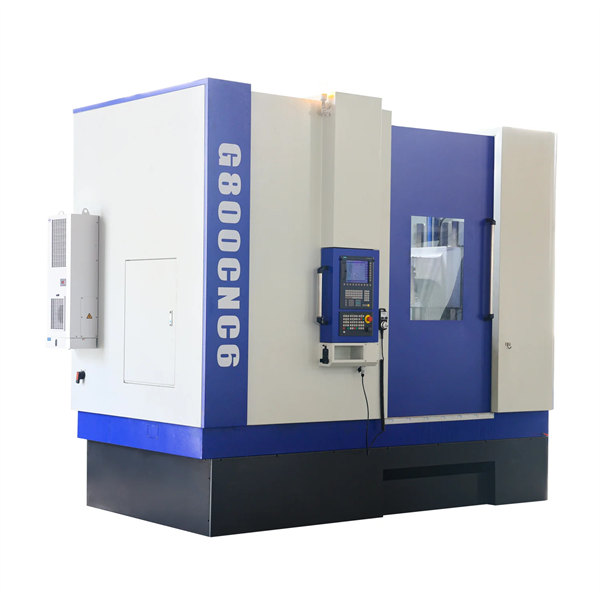

G800
