CNC Gear Chamfering Machine

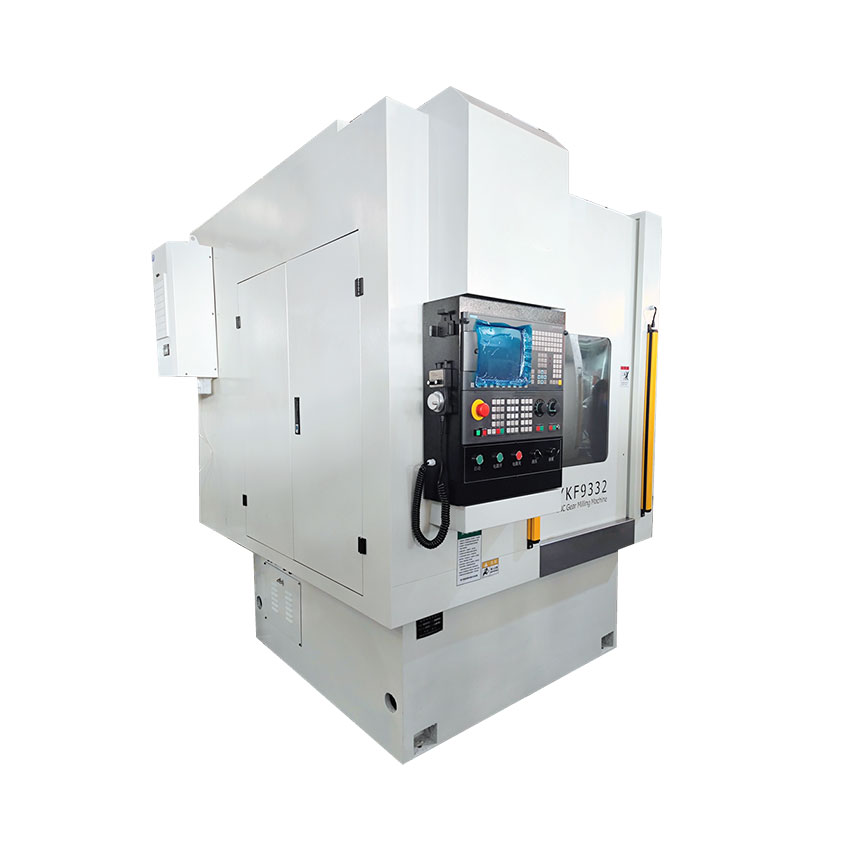

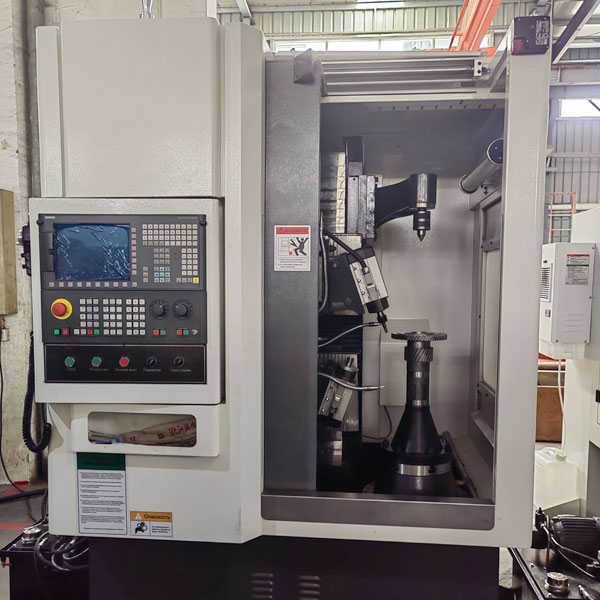

CNC gear chamfering machine

CNC gear chamfering machine plays a vital role in the gear manufacturing industry by virtue of its automation, precision and efficient processing capability.

Adopting advanced CNC control system, the angle, depth and width of chamfering can be accurately controlled to achieve fine adjustment of chamfering parameters and meet the needs of chamfering gears of different specifications and precision levels.

Automatic chamfering processing:

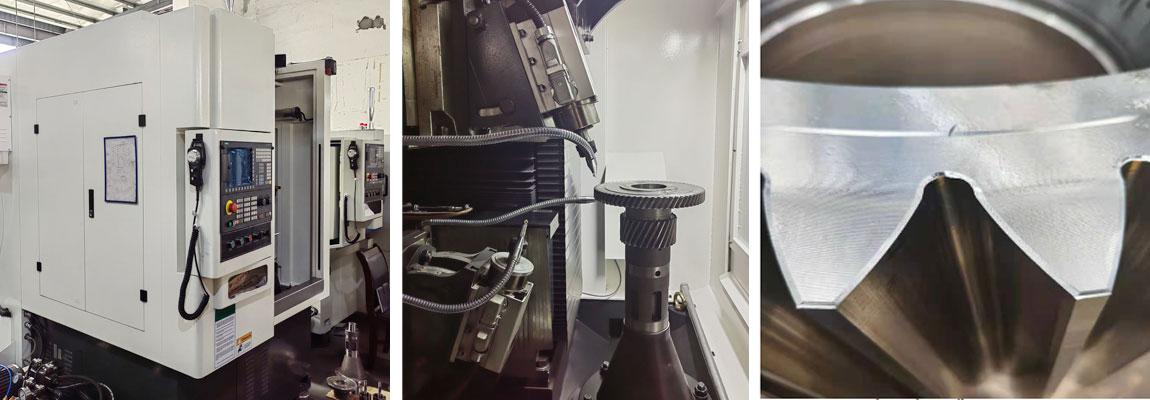

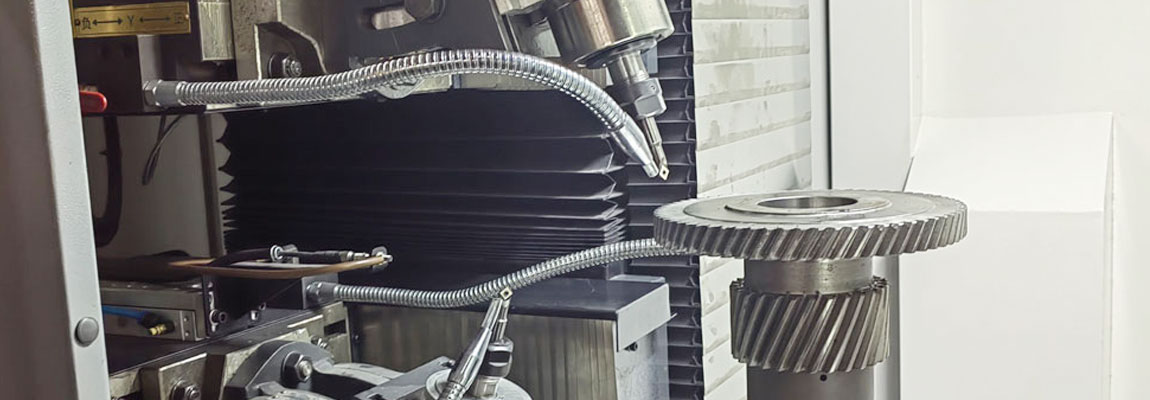

the core function of CNC gear chamfering machine is to precisely chamfer the root part of gears to eliminate burrs, reduce stress concentration and improve the fatigue strength and service life of gears.

Diversified processing:

It is suitable for different types and specifications of gears, including but not limited to straight teeth, helical teeth, curved teeth, bevel teeth, etc., and it is also capable of chamfering gears made of different materials (e.g. cast iron, steel, aluminium, etc.).

Automatic operation:

Equipped with automatic loading and unloading system, it can realize automatic loading, positioning, processing and unloading of workpieces, which greatly improves the production efficiency and consistency, and reduces the manual labour intensity.

Online detection and feedback:

some high-grade CNC gear chamfering machines are also equipped with online detection function, which can monitor the chamfering quality in real time during the machining process, and correct the machining parameters in a timely manner according to the detection results, so as to ensure the quality of the products.

Flexible programming:

Users can write or call the existing processing procedures according to the gear drawings and technical requirements to achieve one-key start, simplify the process and improve production flexibility.

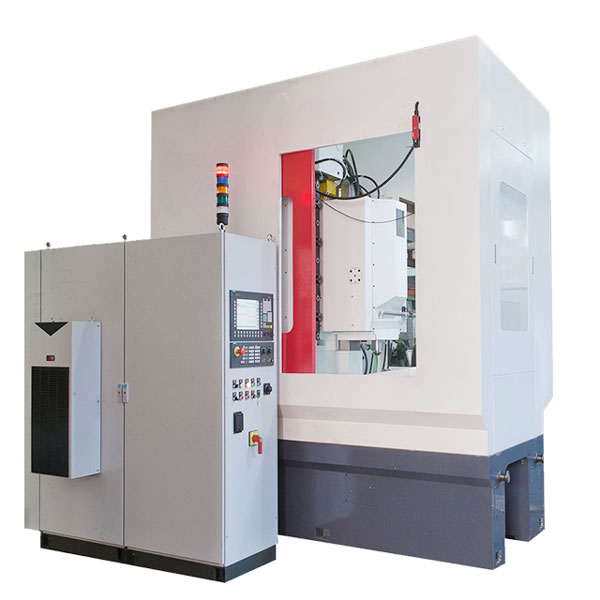

gear shaping machine

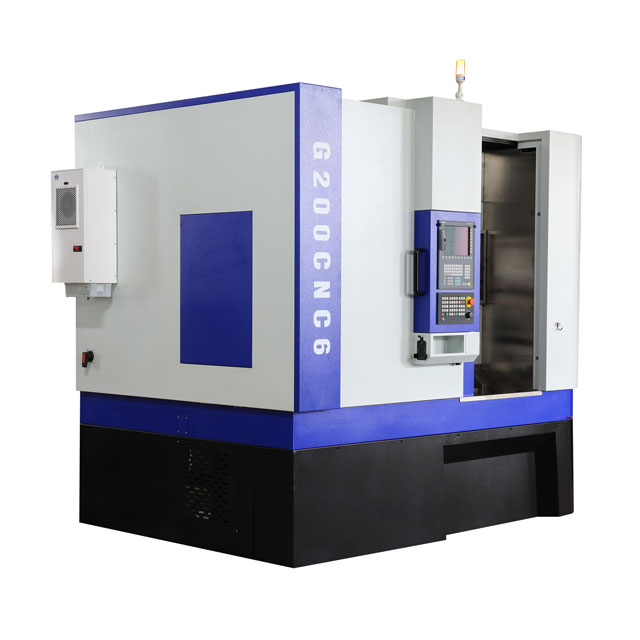

G200 gear hobber

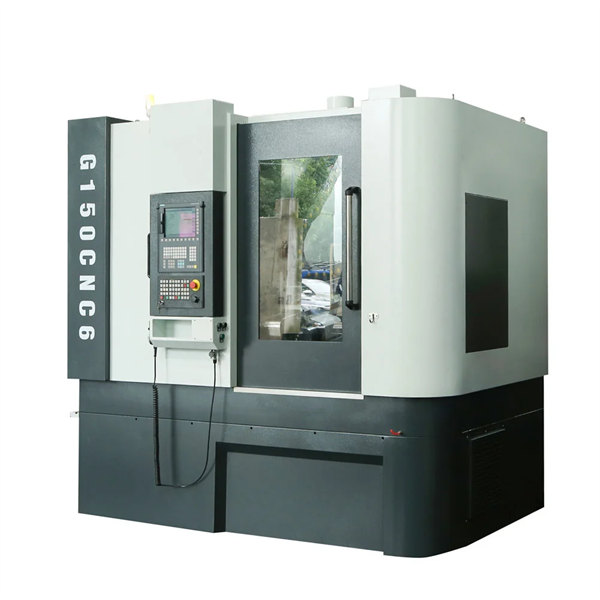

G150 gear hobbing machine
