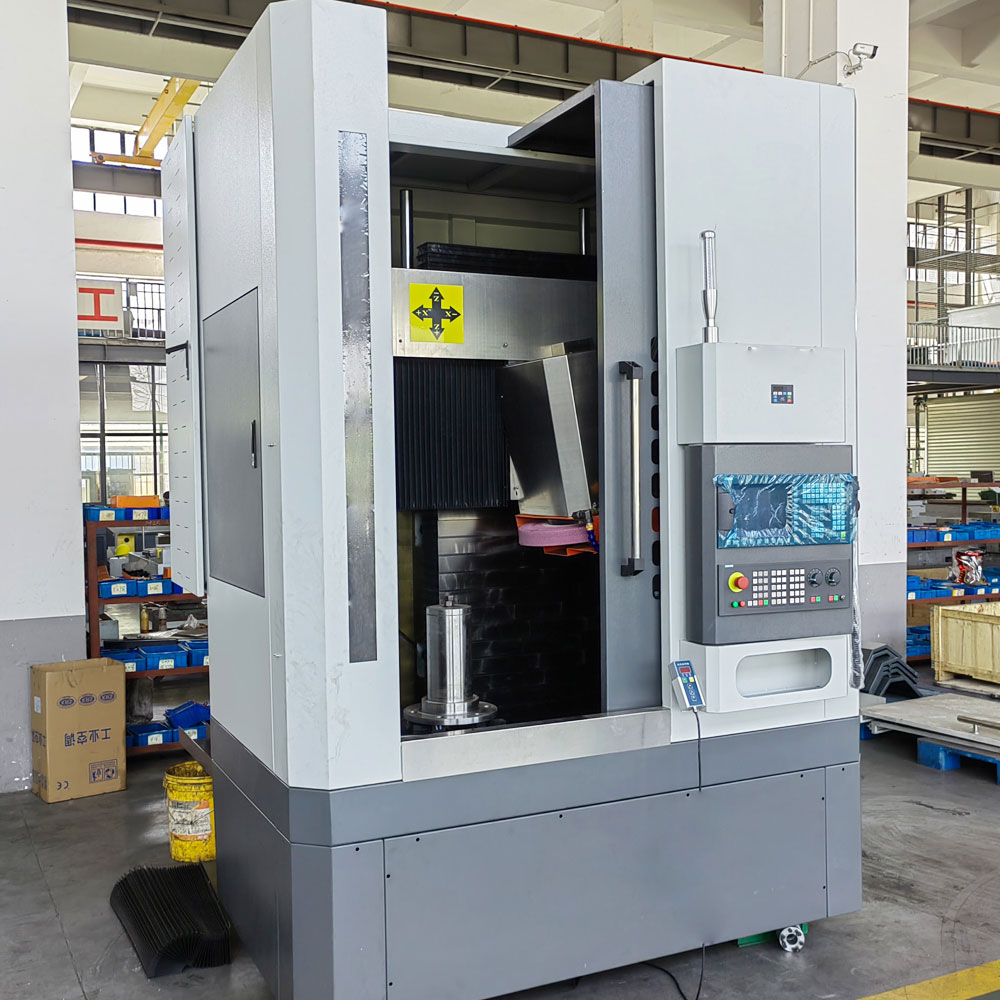

Product Description
The bed of the vertical cylindrical grinding machine is high-quality cast iron with internal reinforcing structure, which does not deform in long-term use. Hydrostatic guideways are used, and the table equipped with products achieves wear-free, highly rigid movements under the action of an oil film. The mobile operation box is located at the right front of the machine.
Max. Grinding external diameter: 300mm |
| Max. Grinding depth: 400mm |
| Max.rotation diameter of work piece: 500mm |
| Surface roughness: Ra0.3μm |
| Weight of machine tool: 8500kg |

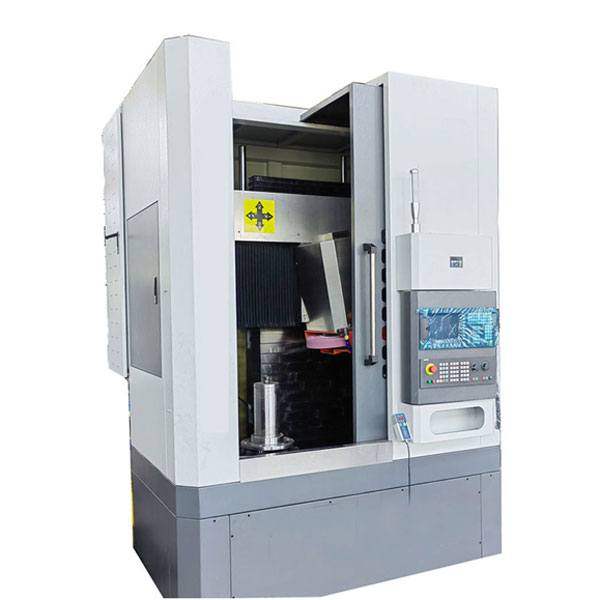

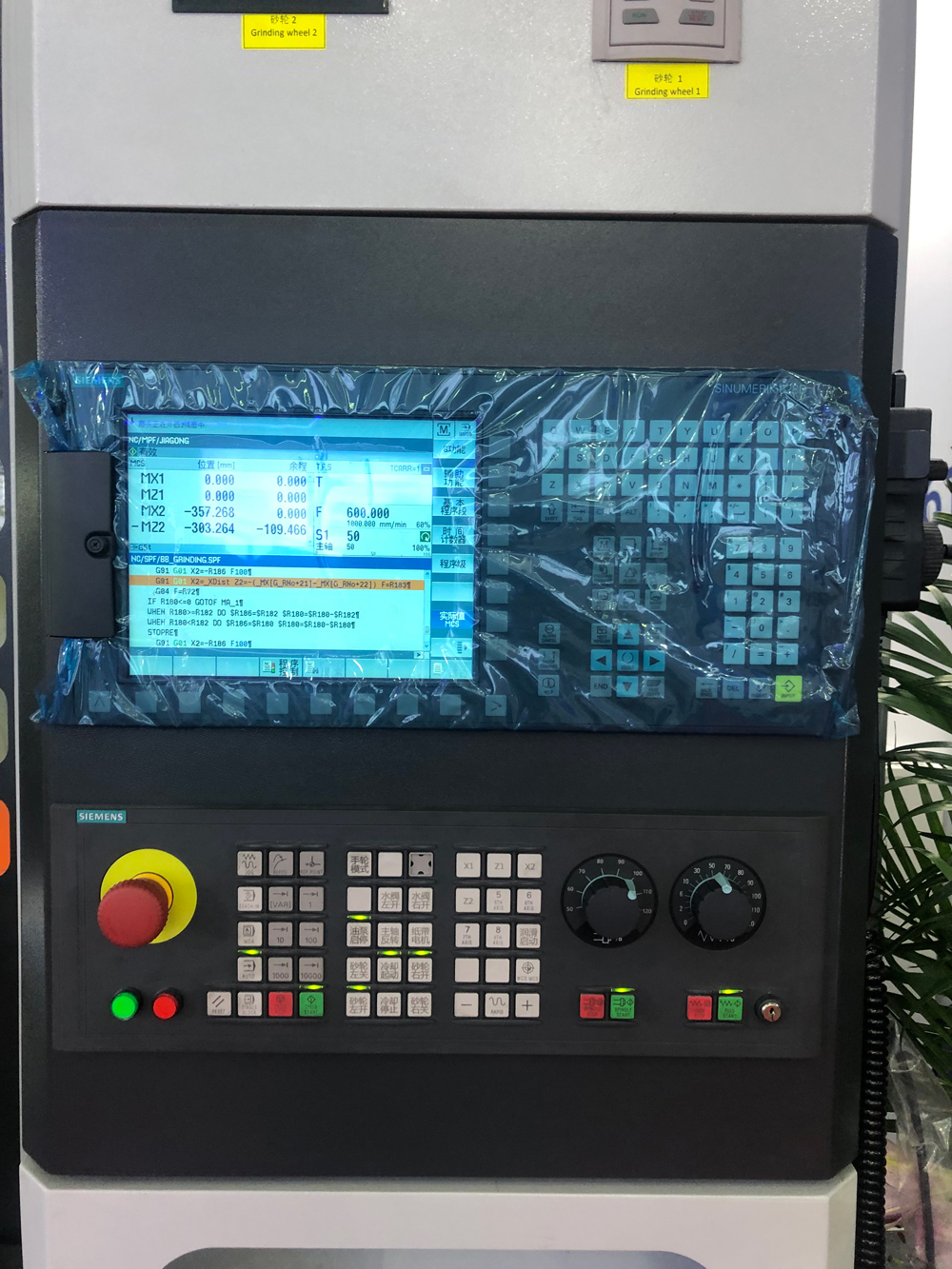

The machine is equipped with Siemens control system, there are 2 axes controlled by the numerical control system;
X-axis: left-right movement of the grinding wheel along the axial direction of the workpiece；
Z-axis: up and down movement of the grinding wheel in the direction perpendicular to the axis of the workpiece；

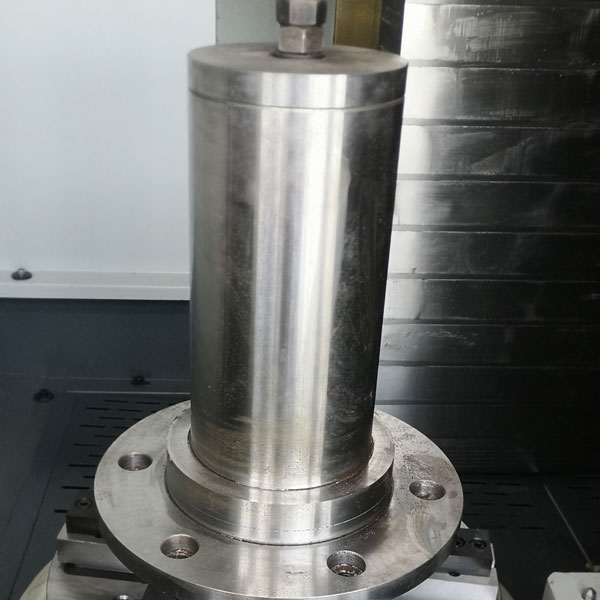

Shaft parts grinding
Gear shafts, motor shafts

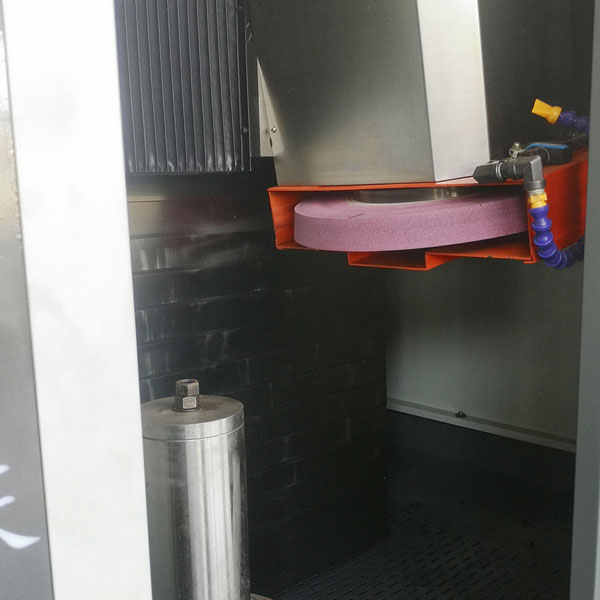

Internal structure of the machine

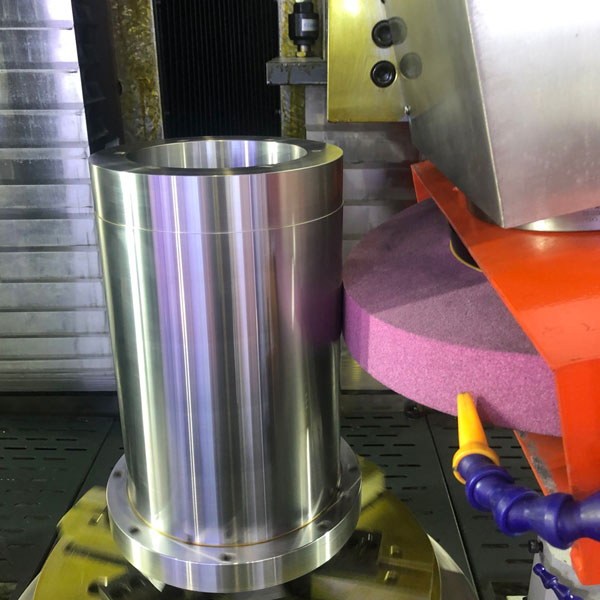

Bearing bush, guide bush grinding
1. Shaft parts: motor shafts, lathe spindles, gear shafts, etc., which are usually long and straight rotating bodies that require high-precision cylindrical surfaces；
2. Bushings: bearing bushings, guide bushings, etc. Vertical cylindrical grinding machines can handle their cylindrical surfaces；
3. End faces and flat surfaces: In addition to cylindrical surfaces, vertical cylindrical grinding machines can also be used to grind the end faces of shafts or simple flat surfaces；
4. Conical workpieces: capable of processing parts with a conical shape, certain tool shanks, taper fit parts of transmission shafts；
It is suitable for the manufacture of parts in many fields such as automobile, aviation and precision instruments.
A:The main feature of vertical cylindrical grinding machine is that the grinding wheel spindle is arranged vertically, which is suitable for processing longer or heavier workpieces;
The horizontal grinding wheel spindle is arranged horizontally, which is more suitable for processing short and complex workpieces.
A:High-precision spindle systems, precision guideways and bearing assemblies, and advanced CNC systems are used to ensure machining accuracy.
A:Firstly, you should ensure that the grinding wheel is correctly selected and kept sharp; Secondly, set the grinding parameters reasonably. It is also necessary to ensure adequate coolant supply;
finally, check and maintain the machine tool.
