Product Description
Wuxi Geepro Gear Technology Co., Ltd. is a leading manufacturer of CNC grinding machines, specializing in the production of high-precision equipment for various industries. Among their wide range of products, the 1m Depth CNC Deep Hole Internal Grinding Machine stands out as a key solution for internal grinding applications that require deep hole machining. This machine is specifically designed for industries that demand high-quality internal surface finishes, such as aerospace, automotive, and precision manufacturing.

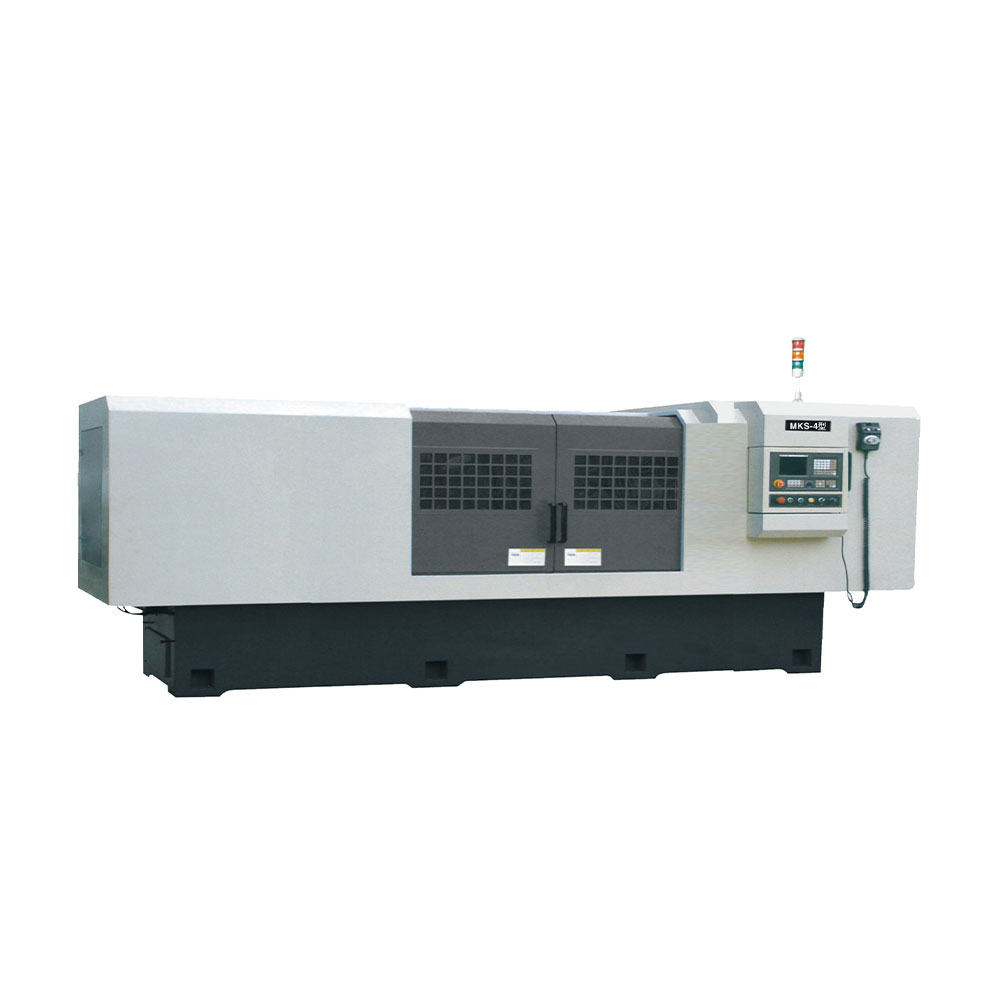

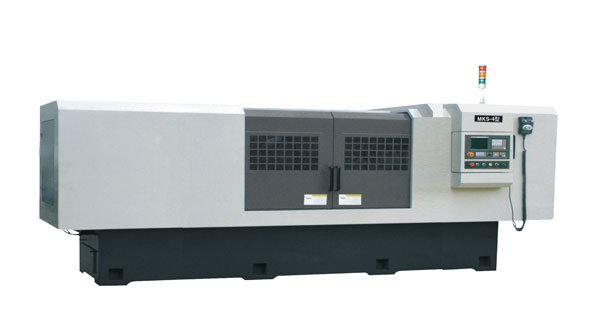

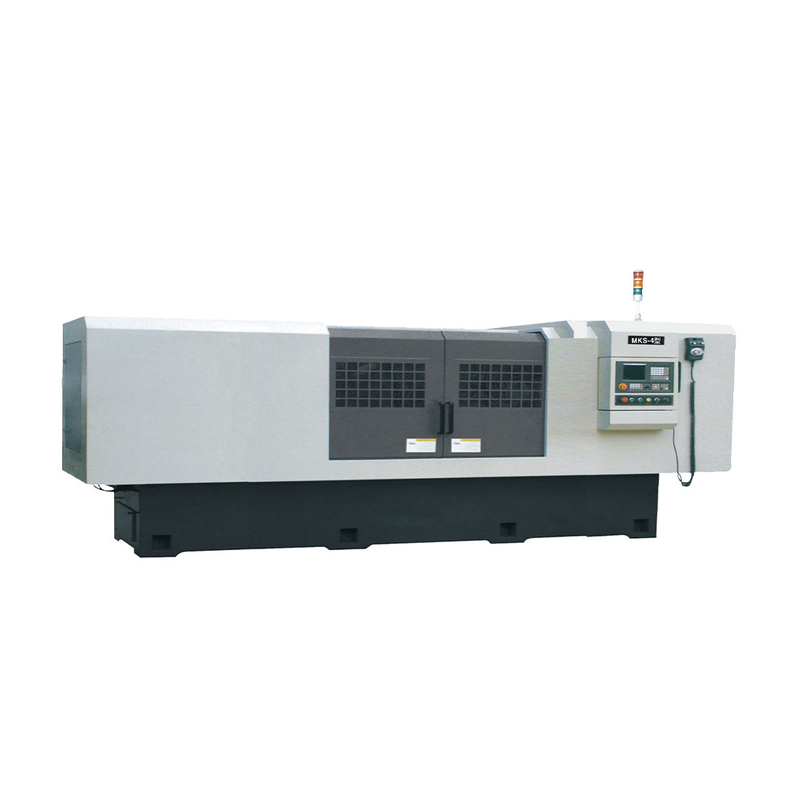

The 1m Depth CNC Deep Hole Internal Grinding Machine is a cutting-edge tool that combines advanced technology with robust construction to ensure precision, reliability, and efficiency. With a focus on deep hole grinding, this machine is capable of handling challenging workpieces that require high accuracy in both depth and diameter, providing superior performance for the most demanding applications.
CNC Control System: The machine is equipped with a sophisticated CNC control system, enabling precise adjustments for deep hole grinding and ensuring high repeatability and accuracy.
Deep Hole Grinding Capability: With a depth capacity of up to 1 meter, this machine can grind deep holes that are difficult to process with conventional methods.
High Precision: The machine is designed to provide exceptional precision in deep hole grinding, ensuring a smooth surface finish and tight tolerances.
Versatile Operation: This grinding machine is versatile, capable of processing a wide range of materials, including hardened steel, alloy steels, and other high-strength metals.
User-Friendly Interface: The control system features an intuitive interface, making it easier for operators to manage and monitor the grinding process.
Durability and Stability: Built with high-quality components and a robust structure, this machine guarantees long-term durability and stability, even under demanding operating conditions.

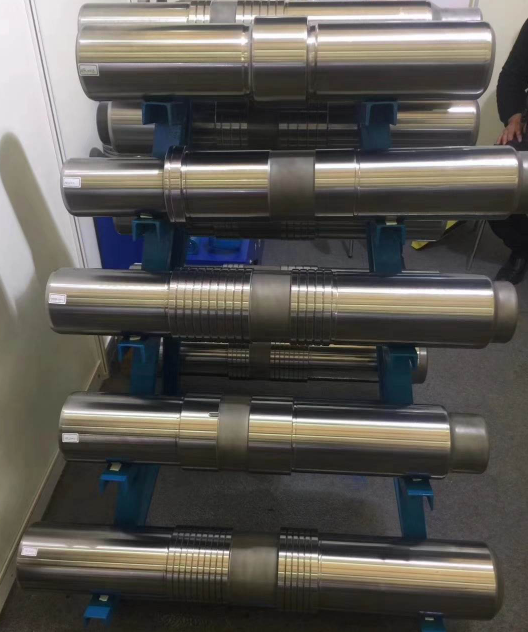

The 1m Depth CNC Deep Hole Internal Grinding Machine is used for machining deep holes in a variety of industries where precision and surface finish are critical. Some of the common applications include:

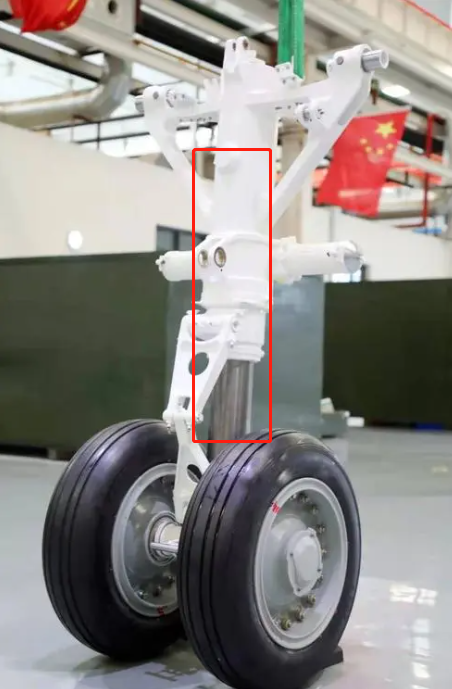

Aerospace: For machining deep holes in components such as turbine blades, engine shafts, and other critical parts.
Automotive: For grinding long and thin internal holes found in engine components, shafts, and gears.
Precision Manufacturing: For deep hole grinding in parts that require tight tolerances and superior surface finishes.
Tool and Die Making: For processing deep cavities and internal channels in molds, dies, and cutting tools.
Wuxi Geepro Gear Technology Co., Ltd. offers comprehensive services to ensure that customers get the most out of their 1m Depth CNC Deep Hole Internal Grinding Machine. The company provides:
Installation and Training: Expert technicians will assist with machine installation and provide training to ensure that operators can use the machine efficiently.
Maintenance Services: Regular maintenance and servicing are available to keep the machine in optimal condition, ensuring long-term reliability.
Technical Support: A dedicated customer service team is available to provide assistance with any operational issues or technical questions.
Spare Parts Supply: The company offers a reliable supply of spare parts to ensure the machine's continued performance.
Expertise and Experience: With years of experience in the CNC grinding machine industry, Wuxi Geepro Gear Technology Co., Ltd. has established a reputation for high-quality products and excellent customer service.
Cutting-Edge Technology: The 1m Depth CNC Deep Hole Internal Grinding Machine is built with the latest CNC technology, ensuring superior performance and precision.
Customization Options: We offer customization services to meet the specific needs of your grinding applications, including adjustments to the machine's specifications and features.
Competitive Pricing: Despite the high-quality craftsmanship, our products are competitively priced, providing excellent value for money.
After-Sales Support: We offer comprehensive after-sales support, including technical assistance, training, and access to spare parts.
The 1m Depth CNC Deep Hole Internal Grinding Machine can grind a wide range of materials, including hardened steel, alloy steels, and other high-strength metals.
This machine can grind internal holes with a depth of up to 1 meter (1000mm).
The maximum grinding diameter is between 3mm and 100mm.
Yes, the machine can be customized to meet your specific grinding requirements, including changes to the spindle speed, grinding diameter, and more.
We provide installation, training, maintenance, technical support, and a reliable supply of spare parts.
The machine offers a grinding accuracy of 0.002mm, ensuring high precision in all applications.
| CNC Deep hole internal grinding machine tool | ||
| S.N | Name | Main technical parameter |
| 1 | Weight of machine tool | 7800( 8500) KG |
| 2 | Outline dimension of machine tool ( mm ) | 4500 (5200) x 1800 x2800 |
| 3 | Rated power | 18.85(19.85) |
| Other parameter | ||
| 4 | Motor power of work piece ( KW) | 4 |
| 5 | Motor power of grinding wheel ( KW ) | 4(5) |
| 6 | Servo motor power of X axis ( NM) | 11 |
| 7 | Repeat positioning accuracy of X axis ( mm ) | 0.003 |
| 8 | Servo motor power of Z axis ( NM) | 3(4) |
| 9 | Reciprocating accuracy of Z axis ( mm) | 0.004( 0.005) |
| 10 | Maximum moving speed of worktable ( m/min ) | 10 |
| 11 | Maximum running speed of feed mechanism ( m/min ) | 5 |
| 12 | Rotation speed of work piece ( r/min ) | 50-500 stepless speed regulation |
| 13 | Rotation speed of grinding wheel ( r/min ) | 2000-10000 stepless speed regulation |
| 14 | Max. Stroke of worktable ( mm ) | 800( 1200 ) |
| 15 | Max. Rotation angle of work piece | +5( degree ),-2( degree ) |
| 16 | Max. swing diameter of work piece ( mm ) | 700 |
| 17 | Max.Loading weight ( kg) | 300( without central rest ] 1000( with central rest ) |
| 18 | Feed stroke of grinding wheel axis ( mm ) | 250 |
| Processing range | ||
| 19 | Grinding internal diameter scope ( mm ) | 50-400 |
| 20 | Max. Grinding depth ( mm) | 750( 1000 ) |
| Processing accuracy | ||
| 21 | Roundness ( um) | 0.005 |
| 22 | Cylindricity ( mm) | 0.002/200 |
| 23 | Roughness of surface ( um ) | Ra0.4 |
