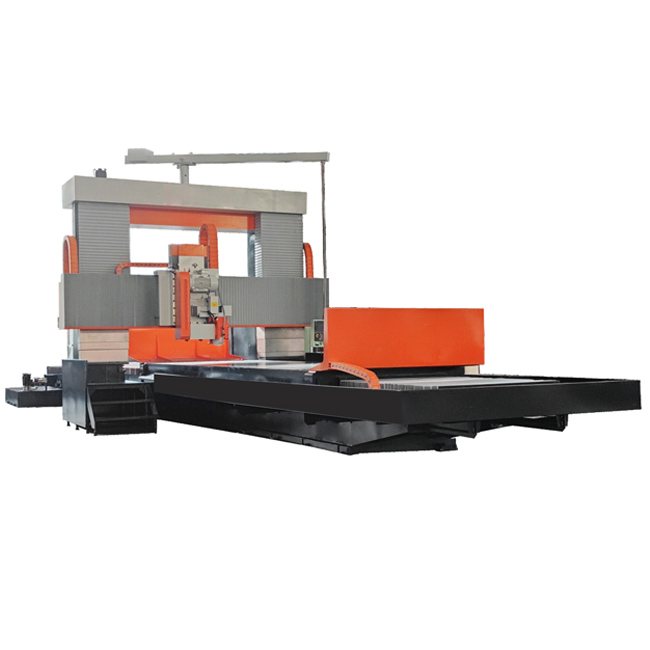

CNC PLC Double Column Surface Grinding Machines

cnc/plc surface grinding machine

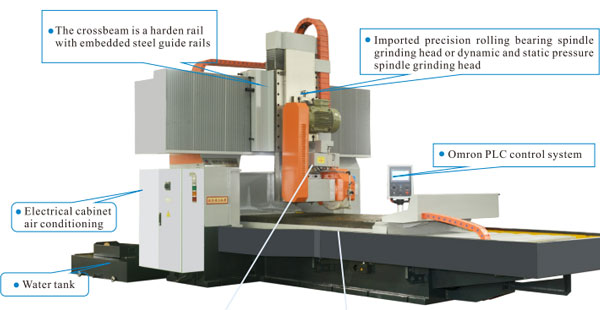

The bed guideway is a double V structure

Imported precision rolling bearing spindle grinding head or dynamic and static pressure spindle grinding head.

The crossbeam is hard rail with steel guideway.

Equipped with automatic grinding wheel dresser and electrical cabinet air conditioner.

Closed cooling water circulation tank structure

1. The machine can grind steel parts, castings and non-ferrous metals and other materials. It is suitable for plane and guideway grinding in machinery manufacturing, mold and die industries.

2. The machine adopts bed, double columns and coupling beams to form a closed gantry frame structure, which has good rigidity.

3. The spindle bearing adopts imported high-precision angular contact ball bearings (spindle bearing adopts German FAG or Japanese NSK).

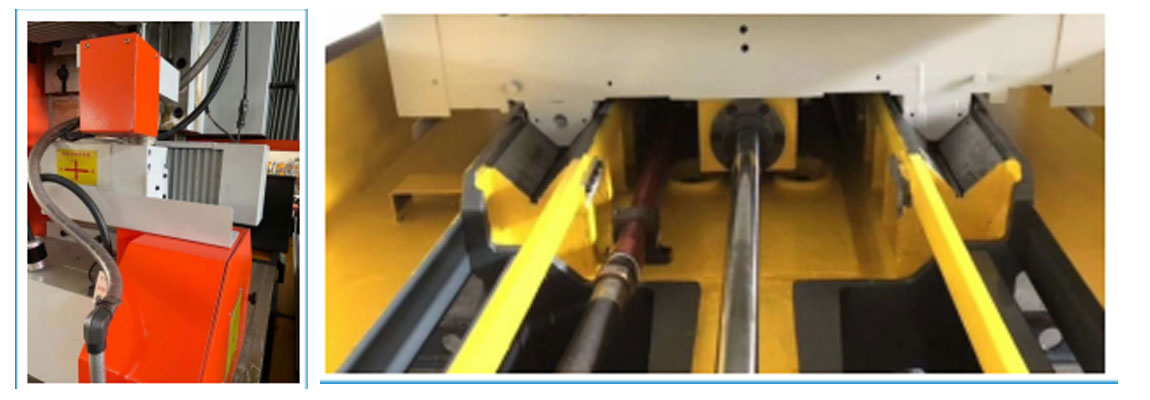

Equipped with automatic grinding wheel dresser

Left and right V-V sliding guide rails

Max.size of work piece to be ground(Wx Lx H): 6000×2000×1500 mm

Longitudinal stroke of worktable : 6100(mm)

Horizontal grinding wheel center to table distance: 20-1750 mm

Grinding wheel size(O.D*W*I.D): φ500×75×φ203 mm
