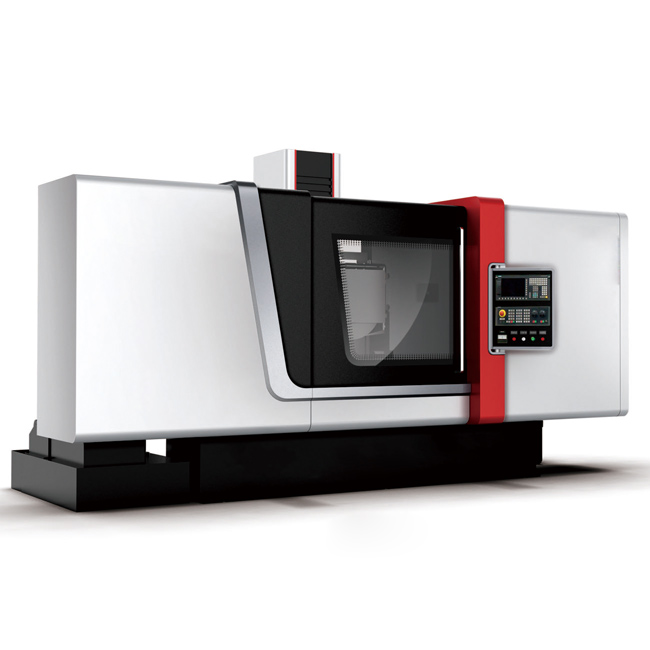

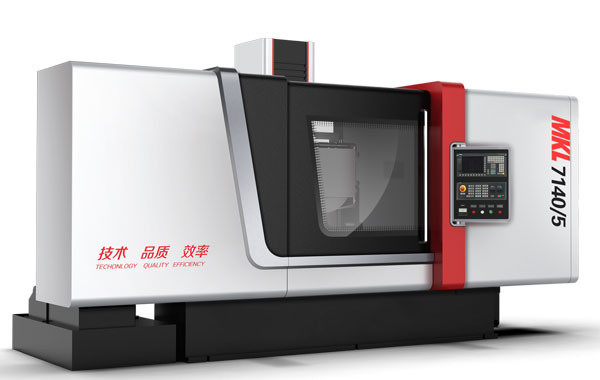

Five-axes Column Waist-mobile CNC Surface Grinder Machine

cnc creep feed profile surface grinding machine (column waist-mobile)

German technology

Unique crash-proof grinding head structure

Longitudinal ball screw sub floating nut type structure

Longitudinal optional linear servo motor structure

Additional CNC rotary table

The machine is suitable for grinding complex shaped parts such as aircraft engines, steam turbines, and ship turbine blades etc.

The machine adopts column waist-mobile structure, and the column moves smoothly;

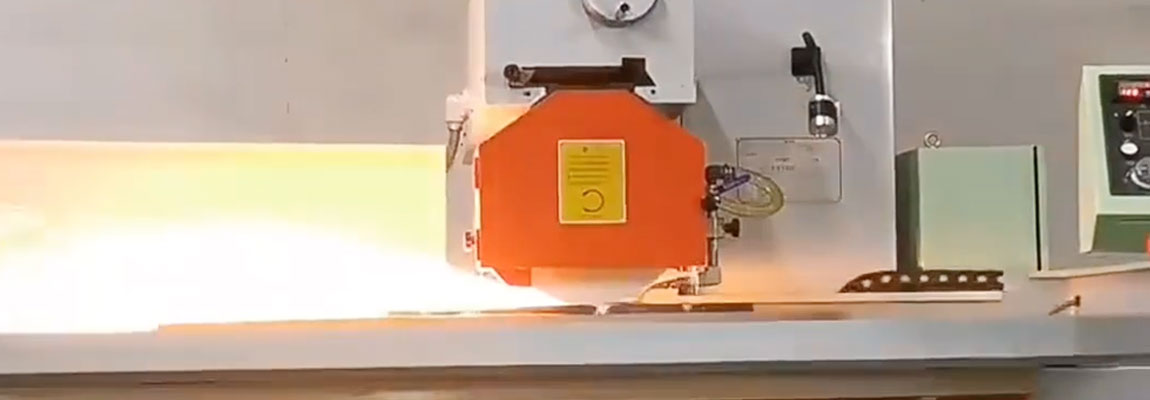

The spindle adopts a servo motor, and the grinding head adopts a unique anti-collision structure;

Size of working table(Wx L): 400*1000mm;

Max.size of work piece to be ground(W*L*H): 400*1000*500mm

The center line of the grinding head spindle to the table：200-700 mm

Power of spindle motor：22 kW
