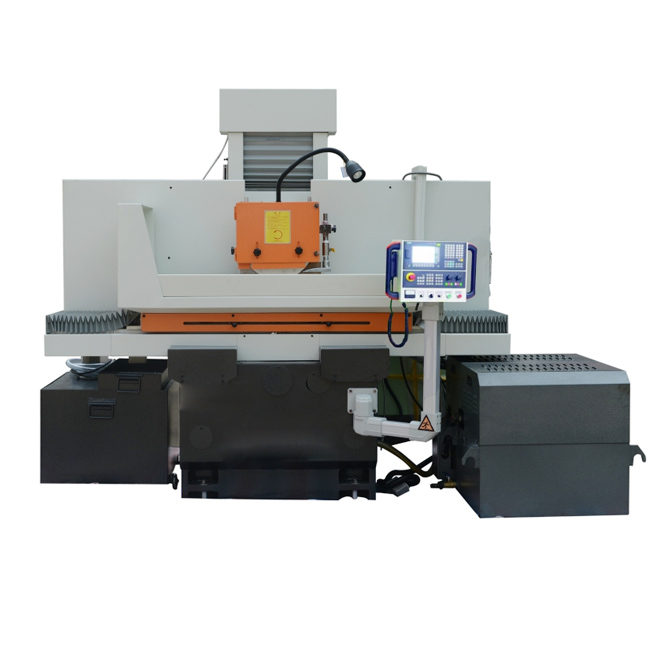

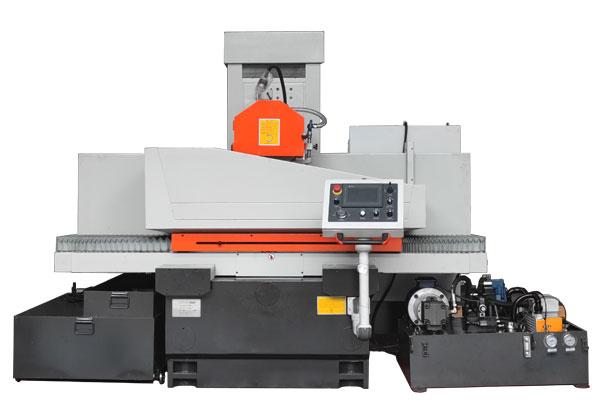

Saddle-mobile Surface Grinder with Horizontal Grinding Wheel

surface grinidng machines with horizontal grinding wheel spindle and reciprocating table (saddle-mobile)

Italian technology

Twin-axis programmable

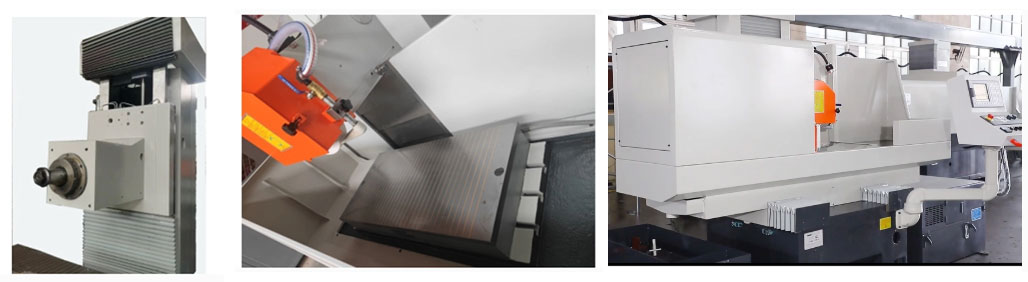

Vertical rectangular sliding guideway with good vibration resistance, spindle front bearing

Integral structure with inner column and outer cone

Air-cooled external oil station

Stable working precision, good retention, high cost performance.

The front end of the spindle adopts inner column and outer tapered plain bearings, and the rear end is two rolling bearings with long service life and high precision.

The reciprocating motion of the worktable is driven by independent hydraulic station with stepless speed regulation of proportional valve, which realizes fast and slow smooth motion.

The whole machine is designed with reference to the European standard, with beautiful modeling and high safety.

Size of working table(Wx L): 300*600mm;

Max.size of work piece to be ground(W*L*H): 300*600*400mm

Longitudinal travel of table: 100-700(hydraulic): 100-700mm

Grinding wheel motor power: 4KW

Rotational speed: 1440r/min

Surface roughness of work piece: ≤Ra 0.63μm
