Product Description

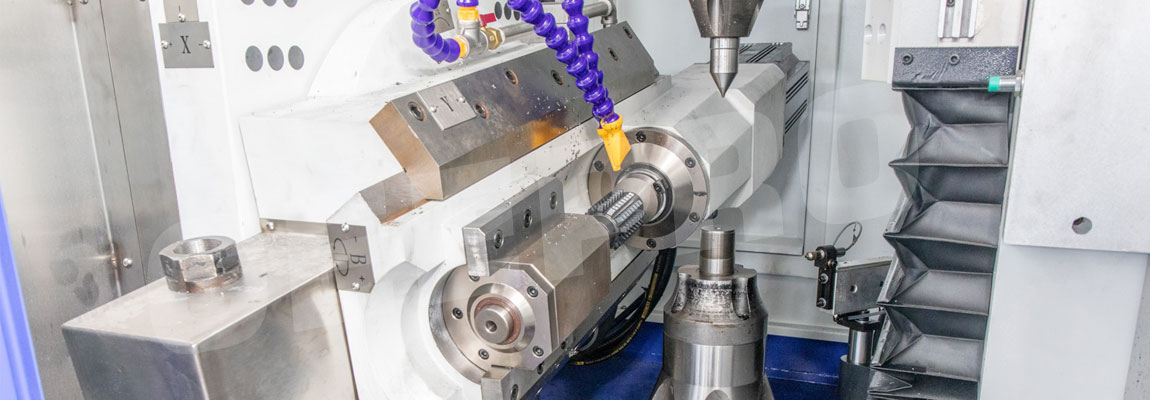

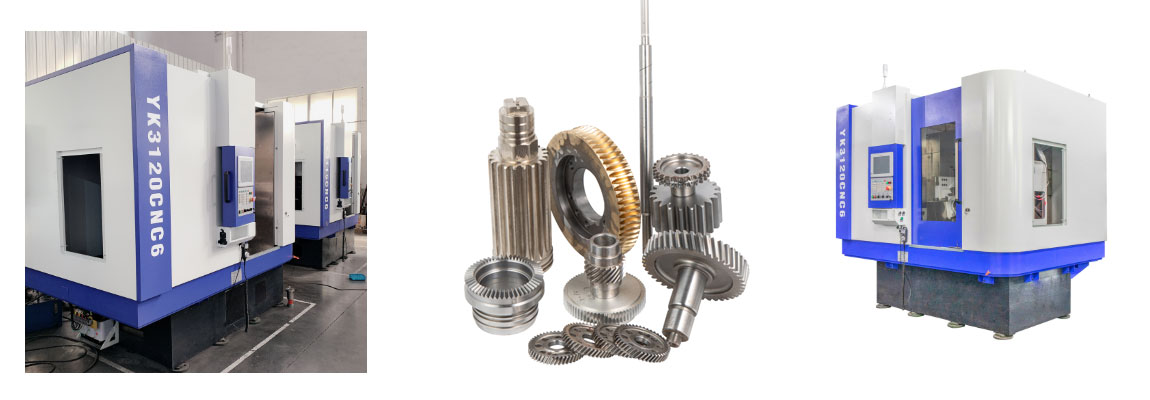

the numerical control system realizes precise control and is capable of processing gears with modules between 4 and6, ensuring that the tooth shape and pitch of the gears have high precision, which is suitable for manufacturing high-quality gear parts.
Through the automatic control and quick tool change system, it can realize efficient mass production and flexible multi-species machining, shorten the production cycle, improve the production efficiency, and at the same time, it is also easy for the operator to carry out maintenance and adjustment.

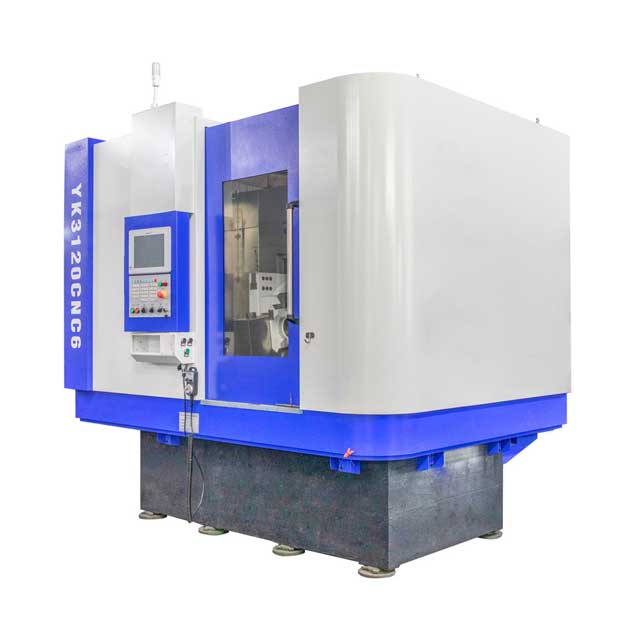

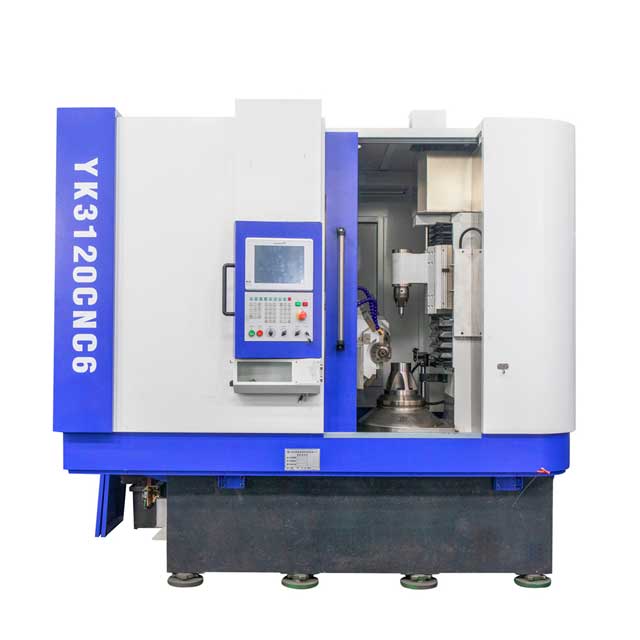

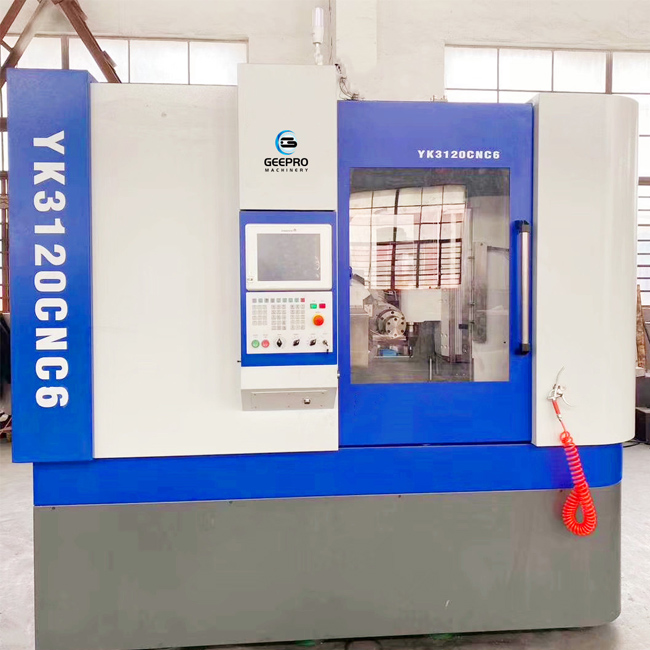

| YK3120 The manin technical parameters | ||
| The largest processing module | Mn | 5/6 |
| The largest machining diameter | mm | 200 |
| Tilt angle of tool rest | deg | 45L/R |
| Axial stroke | mm | 300 |
| Maximum speed of workpiece shaft | rpm | 210 |
| Maximum speed of hob shaft | rpm | 2500 |
| Distance from hob center to workbench center | mm | 20-170 |
| Total power | Kw | 35 |
| Maximum hob diameter∗length | mm | 120∗180 |
| Specification of tool bar | mm | 16.22.27 |
| Machine tool appearance size | mm | 2780×2860×2760 |
| Total weight of machine tool | Kg | 8000 |

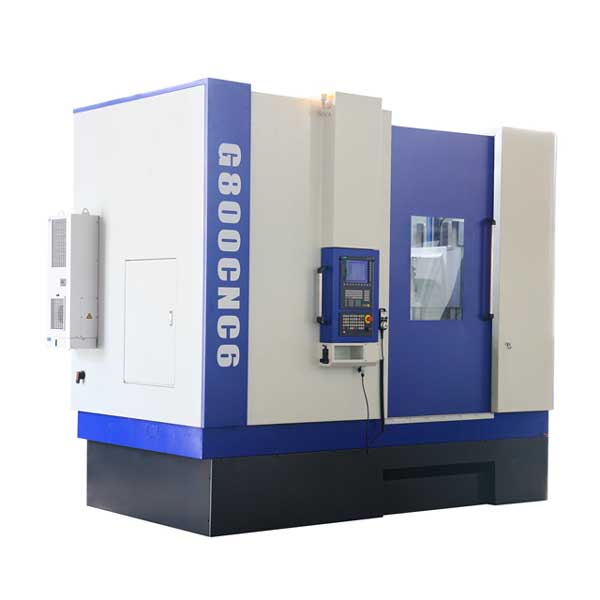

G800 gear hobbing machine
spline shaft gear hobbing machine

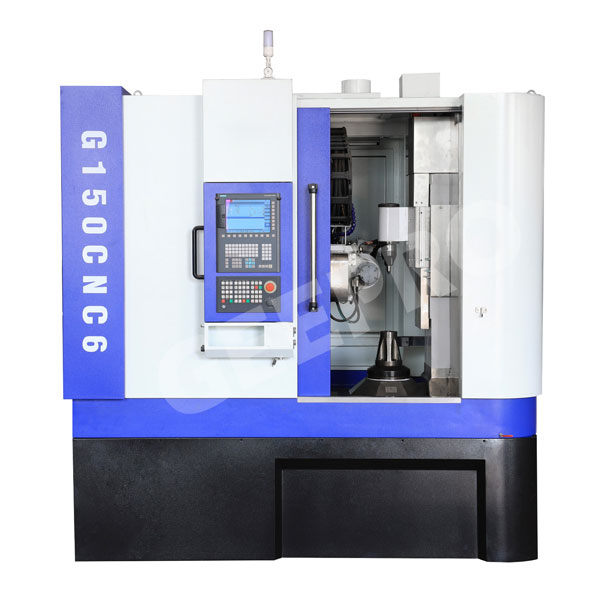

G150 gear cutting machine
