Product Description

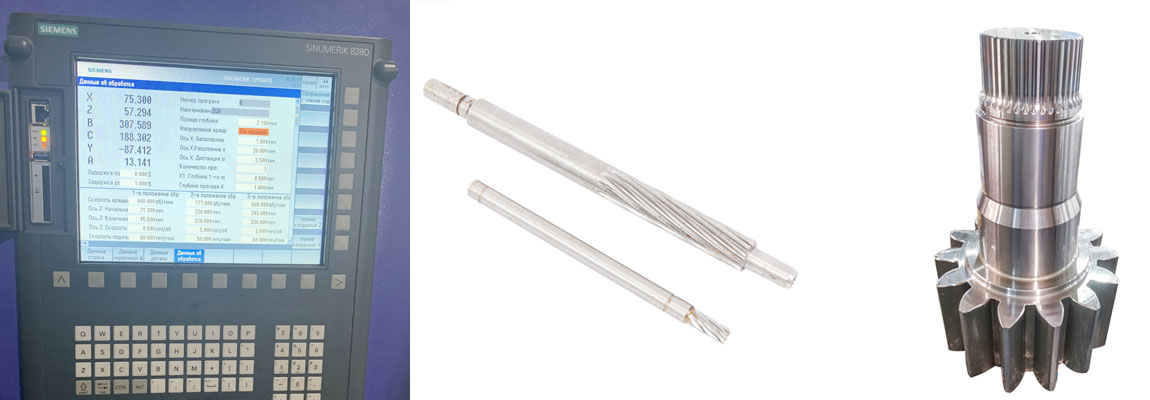

The electrical part of the machine adopts imported Siemens 840Dsl numerical control system and Siemens servo motor. The number of CNC axes is six, each axis adopts AC servo drive, CNC control, can realize four-axis linkage.

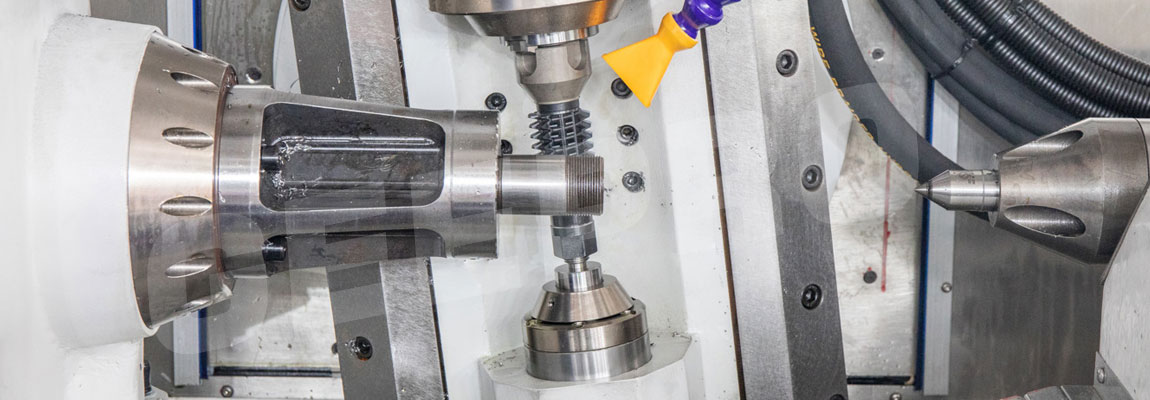

The machine tool--gear hobber is specially designed to increase the diameter of the loading tool, installing indexable insert hob, which can realize efficient dry hobbing processing, and compared with the traditional integral hob, it can realize the machine tool machining efficiency of 3 to 5 times, and it does not need cooling oil, which is green and environmentally friendly.

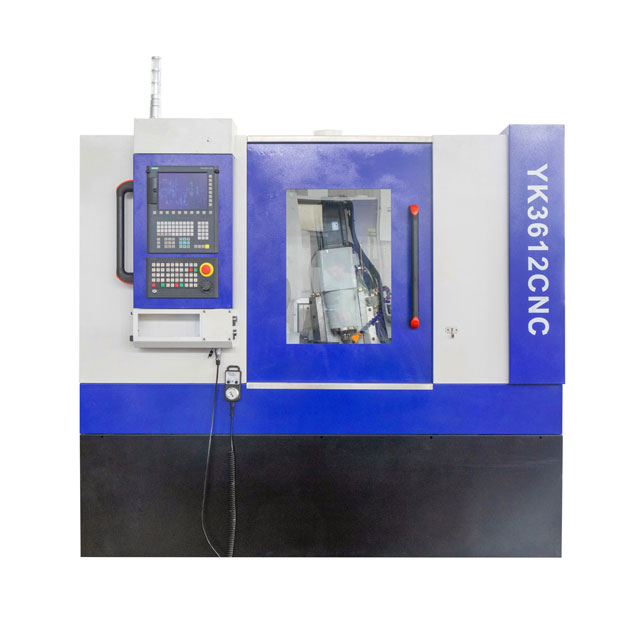

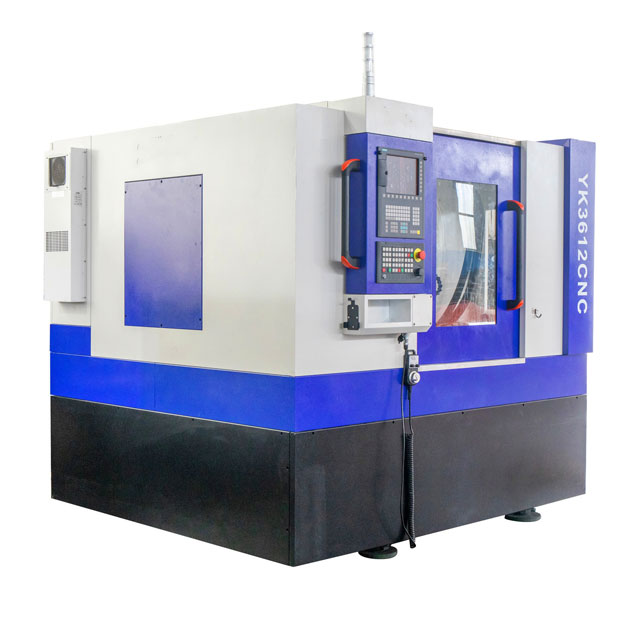

| YK3612 The manin technical parameters | ||
| The largest machining diameter | mm | 120 |
| The largest processing module | m | 2.5 |
| Work surface daimeter | mm | 110 |
| The largest diameter cutter | mm | 80 |
| The biggest tool length | mm | 90 |
| The use of tool rod specifications | mm | 13/16 |
| The spindle taper specifications | BT30 | |
| Highest hob shaft speed | rpm | 3000 |
| Workpiece axis of the highest speed | rpm | 440 |
| X trip | mm | 105 |
| Y trip | mm | 80 |
| Z trip | mm | 300 |
| Workpiece angle | ° | ±45° |
| X axis maximum fast moving speed | mm | 5000 |
| Y axis maximum fast moving speed | mm | 2000 |
| Z axis maximum fast moving speed | mm | 5000 |
| The total power of electric machine | kw | 18 |
| Machine tool appearance size | mm | 2220*2020*2020 |
| Machine weight | kg | about 4600 |
