What is the meaning of hobbing?

Hobbing is a widely - used manufacturing process in the field of gear production. It is based on the principle of generating gear teeth through the meshing motion between a hob and a gear blank.

1. Processing Principle

Conceptually, hobbing can be seen as a process similar to the meshing of a helical gear pair. The hob, which is the key cutting tool in this process, has a shape that resembles a worm. When the hob rotates, it is equivalent to a continuous linear movement of a rack in the meshing process. For example, when a single - head hob rotates one full turn, it is like the rack moving a distance equal to one tooth pitch in the normal direction. As the hob continuously rotates, the gear blank rotates at a synchronized speed according to the gear - rack meshing ratio. This coordinated rotation between the hob and the gear blank enables the hob's cutting edges to gradually cut and form the gear teeth around the circumference of the gear blank, creating the involute tooth profile of the gear.

2. The Role of the Hob

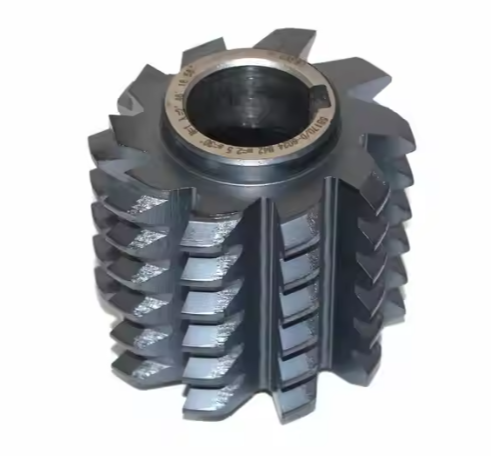

The hob is a specialized cutting tool crucial for hobbing. It has multiple helically - arranged cutting teeth. The number of thread heads of the hob can vary, usually 1 - 3 teeth. These teeth are designed to cut into the gear blank to remove material and form the gear teeth. The hob's structure and tooth profile are precisely designed to ensure the accurate generation of different gear types. For instance, different hobs are required for manufacturing spur gears, helical gears, or worm gears. The design of the hob's teeth, such as their pitch, pressure angle, and shape, directly determines the corresponding parameters of the gear being produced.

3. Motion in Hobbing

There are three main types of motion in the hobbing process:

Main Motion:

This is the rotation of the hob, which provides the cutting speed. The rotational speed of the hob, usually expressed as   (r/min), is a key parameter affecting the cutting efficiency. A higher - speed rotation can generally increase the material - removal rate, but it also needs to be coordinated with other factors such as the material of the gear blank and the hob's durability.

Dividing Motion:

It is the motion that ensures the gear blank and the hob maintain a strict meshing relationship. Mathematically, when the hob rotates by a certain angle, the gear blank rotates a corresponding angle according to the gear - rack meshing ratio. For example, if the hob has   heads and the gear blank has   teeth, when the hob rotates by 1 unit angle, the gear blank should rotate   units of angle. This motion ensures the accurate generation of the correct number of gear teeth.

Vertical Feed Motion:

In order to cut the teeth along the entire width of the gear, the hob needs to move axially along the length of the gear blank. This vertical feed motion, with a feed rate   (mm/r), determines the depth of each cut and the overall tooth - cutting process along the gear's axial direction.

4. Advantages of Hobbing

High - efficiency:

The continuous cutting nature of hobbing makes it highly efficient, especially suitable for mass production. Multiple gears can be produced in sequence without significant interruptions, greatly increasing the production rate.

High - precision:

Hobbing can achieve high - precision gear manufacturing. The tolerance of the gears produced by hobbing can be as small as 0.001 inches or even better, which is crucial for applications where high - precision gear meshing is required, such as in precision machine tools, automotive transmissions, and aerospace equipment.

Versatility:

The hobbing process can be applied to a variety of materials, including metals like steel, aluminum, and non - metallic materials such as plastics. It can also be used to manufacture different types of gears, covering a wide range of gear - related production needs in various industries.
