Product Description

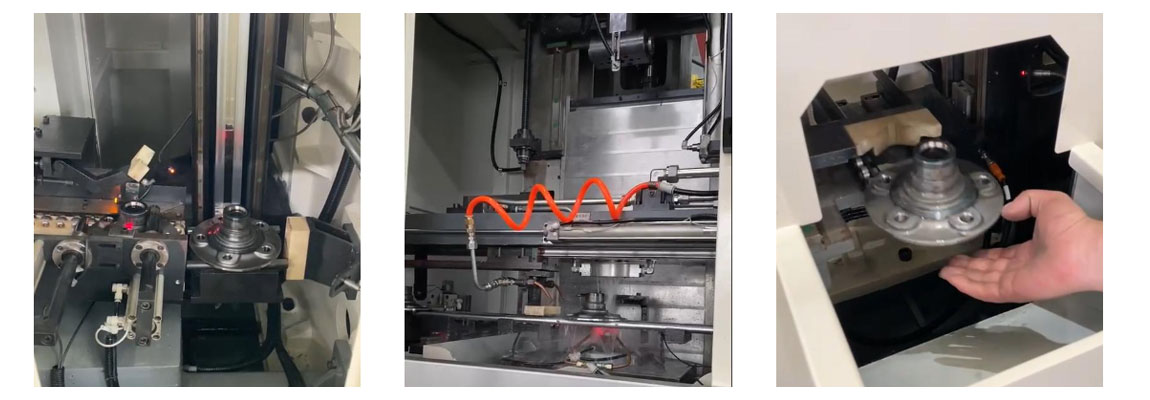

The pneumatic-driven movements ensure a responsive and smooth running experience, allowing for seamless broaching operations. Even under high pulling force, the machine can keep the workpiece
without deformation, which improves the consistency and reliability of machining.
Compact design and miniaturization make the machine applicable to a variety of machining needs, while the high degree of automation, shorten the machining cycle, improve productivity.

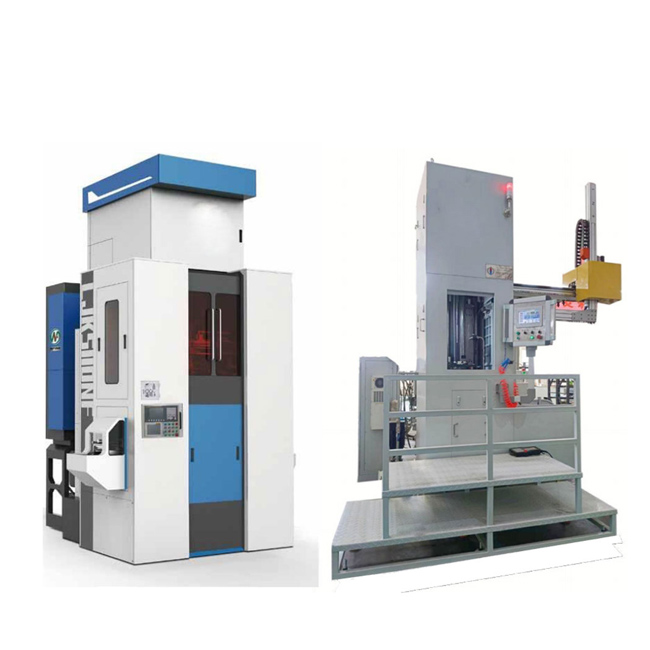

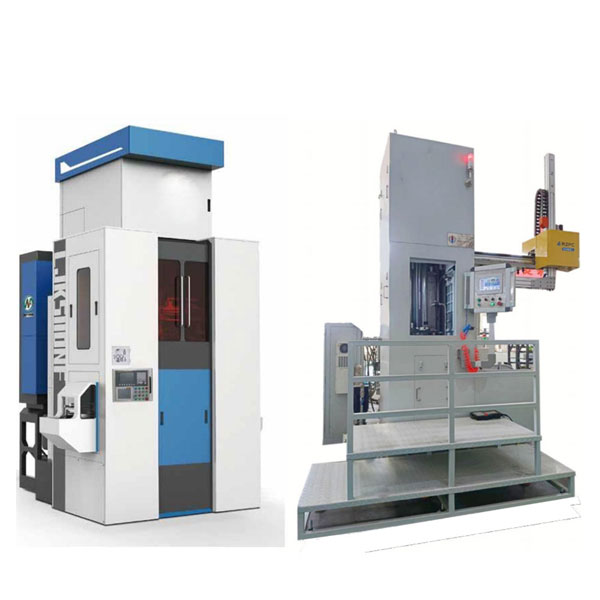

The CNC broaching machine delivers exceptional performance and reliability. Its advanced technology and precision engineering make it an ideal choice for industries such as automotive, aerospace, and medical manufacturing.
| Model | LJ5105 | LJ5110 | LJ5120 | Unit |
| Rated tension | 50 | 100 | 200 | kN |
| Rated stroke | 800 | 1000 | 1600 | mm |
| Broaching speed | 1~7 | 1~7 | 1~7 | m/min |
| Range of broach length | 500~1000 | 500~1150 | 700~1700 | mm |
| Return speed | 1~12 | 1~15 | 1~15 | m/min |
| Workbench size | 350×300 | 450×420 | 600×420 | m/min |
| Height of loading and unloading | ≤900 | 900 | ≤1000 | m/min |
| Main motor power | 105 | 18.8 | 36 | kW |
| Total motor power | 15 | 24 | 41 | kW |
| Broach moves upward speed | 1~20 | 1~20 | 1~20 | m/min |
| Broach move down speed | 1~20 | 1~20 | 1~20 | m/min |
| Max.hole diameter for faceplate | φ60 | φ60 | Φ100 | mm |
| Maximum workpiece outside diameter*thickness | φ190×90 | φ200×90 | φ340×180 | mm |
| Net weight of machine tool | 4200 | 7000 | 12000 | kg |
| Workspace of the machine tool(LxWxH) | 4250×2650×3620 | 2802×2500×3809 | 2900×4050×5100 | mm |
