Product Description

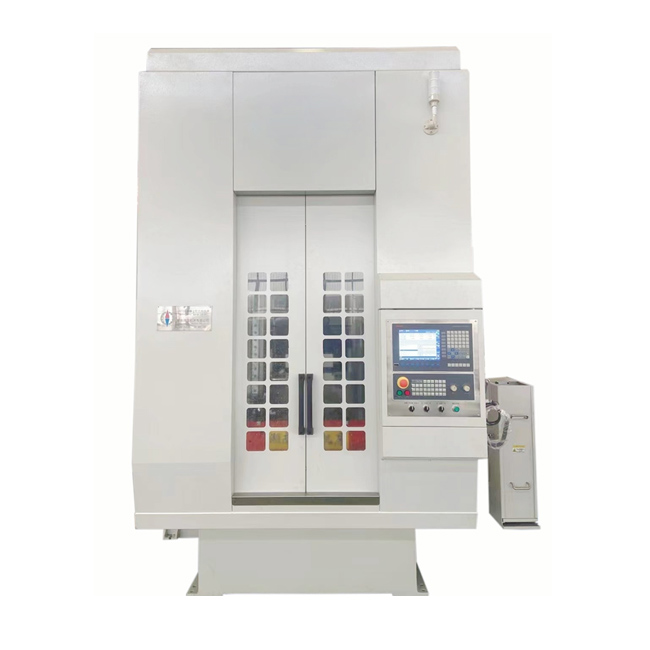

The main structure design of the CNC broaching machine has been re-optimized. By evenly distributing the pulling force, the upward pulling torque is reduced, the machining accuracy is improved, and the life of the machine tool is extended.
Its secondary development digital control system. This innovative system offers closed-loop control, ensuring precise and accurate results every time. With this level of control, you can have full confidence in the quality and consistency of your machining operations.

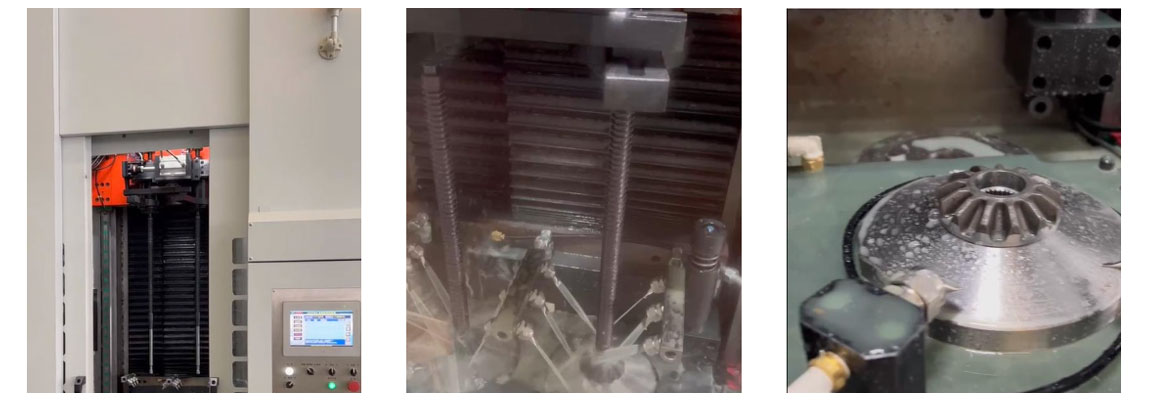

Fully escorted broaching capability, this ensures a smooth and seamless broaching experience, eliminating any chances of snagging or jerking. you can achieve precise and accurate results consistently, making your production process more efficient and hassle-free.
| Model | LJ5705 | LJ5710 | LJ5720 | Unit |
| Rated tension | 50 | 100 | 200 | kN |
| Rated stroke | 800 | 1000 | 1600 | mm |
| Broaching speed | 1~7 | 1~7 | 1~7 | m/min |
| Range of broach length | 500~1000 | 500~1150 | 700~1700 | mm |
| Return speed | 1~12 | 1~15 | 1~15 | m/min |
| Workbench size | 350×300 | 450×420 | 600×420 | m/min |
| Heighto of loading and unloading | ≤900 | ≤900 | ≤1100 | m/min |
| Main motor power | 105 | 18.8 | 36 | kW |
| Total motor power | 15 | 24 | 41 | kW |
| Broach moves upward speed | 1~20 | 1~20 | 1~20 | m/min |
| Broach move down speed | 1~20 | 1~20 | 1~20 | m/min |
| Max.hole diameter for faceplate | φ60 | φ60 | Φ100 | mm |
| Maximum workpiece outside diameter*thickness | φ190×90 | φ200×90 | φ340×180 | mm |
| Net weight of machine tool | 4200 | 7000 | 12000 | kg |
| Workspace of the machine tool(LxWxH) | 4250×2650×3620 | 2802×2500×3809 | 2900×4050×5100 | mm |

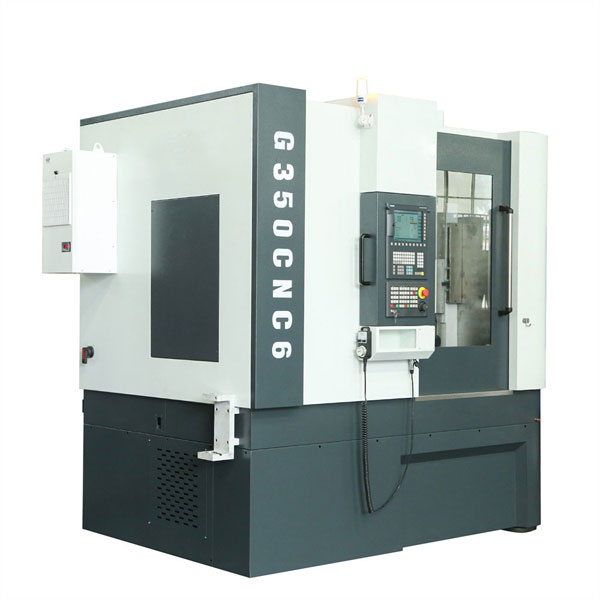

G350 gear hobber

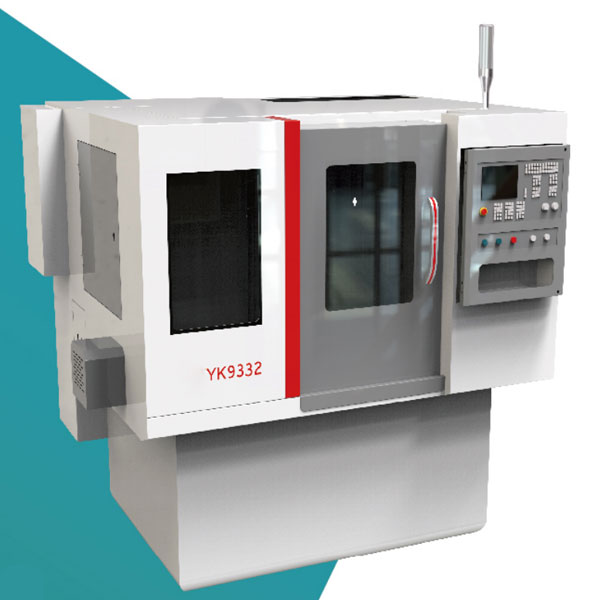

gear chamfering machine

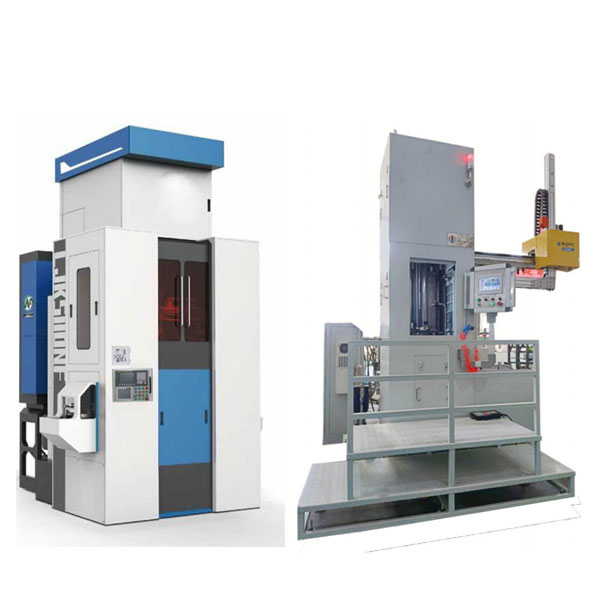

broaching machine
