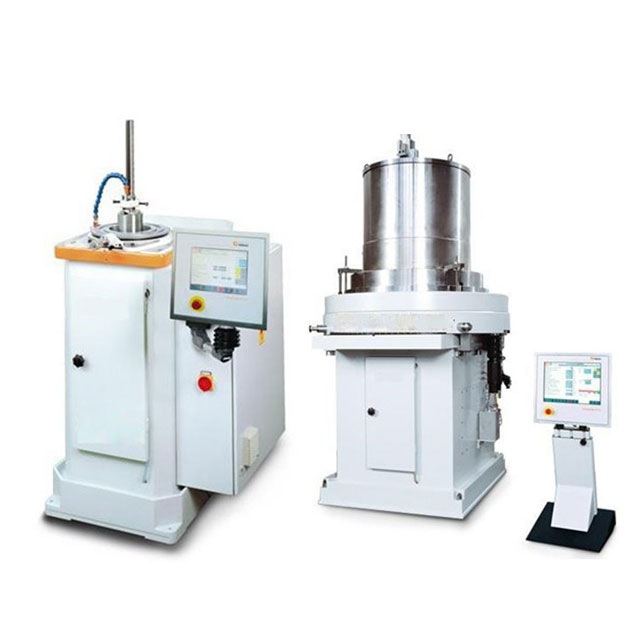

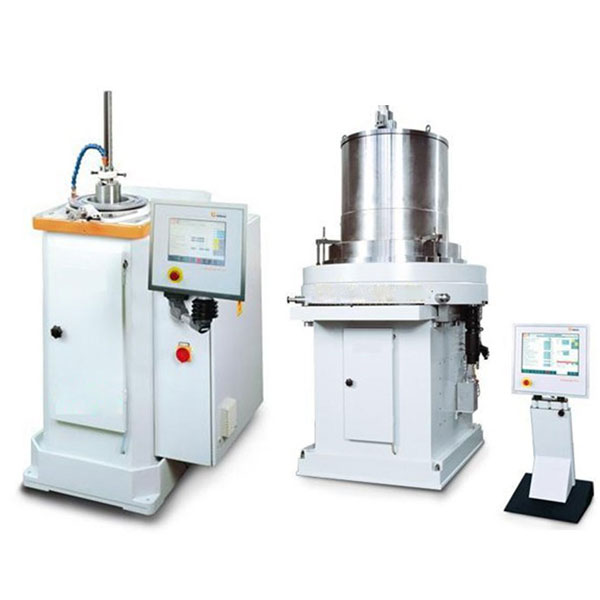

Vertical Inner Hole Keyway Slotting Broaching Machine

Single cutter type precision CNC internal broaching machine, integrating the advantages of inserting, broaching and planing machine, designed for various precision and complex internal grooves, can process 4000mm long hole internal keyway, with accurate centering, simple workpiece clamping and easy operation.
Availability:
Inquire

Product Description

broaching



Broaching Machine


Keyway broaching machines are mainly used in the following key areas:

Automotive Manufacturing:

Machining keyways in engines and transmissions to ensure precision and stability of power transmission.

Aerospace:

Manufacturing keyways in flight control systems and turbine engine components to ensure operational precision and high performance.

Marine Industry:

Processes keyways in drive systems such as propeller shafts and gearboxes to ensure reliable operation of ship propulsion systems.

Energy industry:

Machining keyways for critical components in wind turbines and hydroelectric turbines to support efficient energy conversion.


broaching-tool

Features

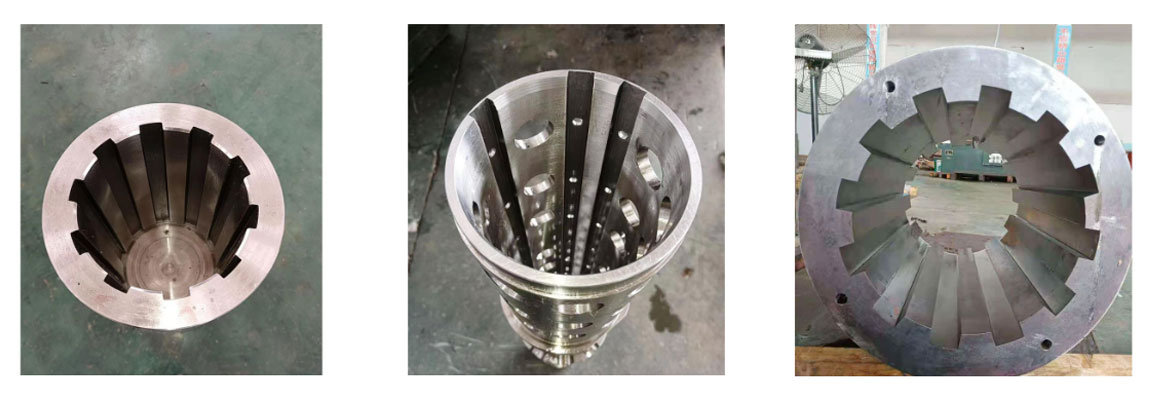

  • The latest European keyway processing technology, localized price, can process all kinds of bore flat keyway, internal spline, threaded groove and so on.


  • Processing of complex bore grooves with bore length up to 4000mm, bore centering, unlimited working outside diameter.


  • keyway symmetry 0.02, keyway tolerance level 8, spline accuracy 5(equivalent to DIN standard 8).

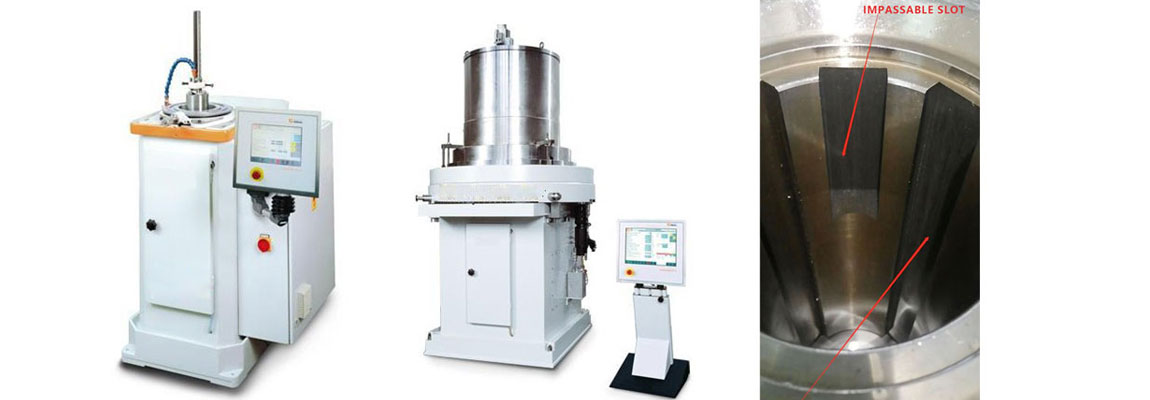

Details

broaching-machine


parameter


Processing hole diameter range Φ40~Φ90mm
Machining keyway width range 3~50mm
Max.broaching length 500mm
Keyway to bore symmetry 0.10 mm
Feed amount 0.02~1mm(Adjustable)
Broaching speed 1~15m/min(Adjustable)
Machined Surface Roughness Ra3.2
Workbench Shape 800×900mm
Maximum worktable load 5000Kg
Main cutting servo motor (Z axis)

 5kw(Siemens)
Cutting feed servo motor (X-axis) 0.7kw(Siemens)
Cutting cooling oil pump 0.2 kw
Automatic lubricating oil pump 0.1 kw
X-axis positioning accuracy ≤0.01mm
Z-axis positioning accuracy

 ≤0.01mm
Machine size (L x W x H) About 2300x2100x3900mm
Machine weight About 5000Kg

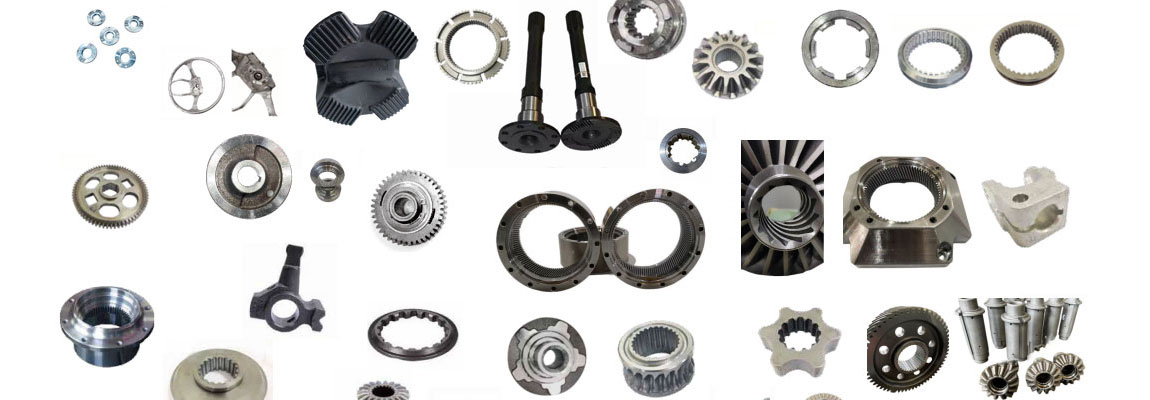

application

keyway-broaching
