Compact CNC Gear Cutting Machine: Ideal for Startups

Compact CNC Gear Cutting Machine: Ideal for Startups

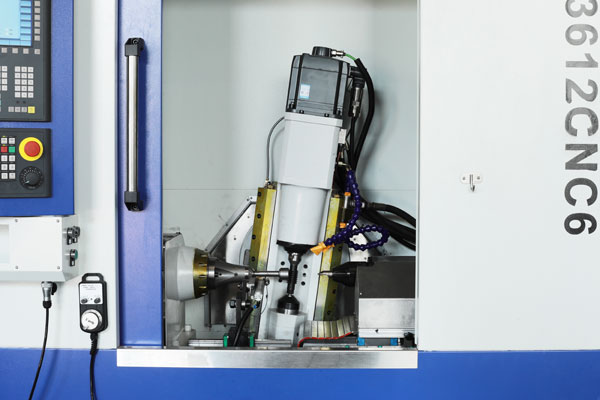

In the industrial manufacturing sector, gears are critical components in numerous mechanical systems, with widespread applications across automotive, aerospace, and machinery industries. To meet the demand for high-precision gear production, gear cutting machines have become essential equipment in modern manufacturing. Today, we invited a professional third-party video crew to film our horizontal gear cutting machine at the factory. Through this on-site shoot, we aim to showcase the technical features and advantages of this machine.

1. Rugged and Stable Structural Design

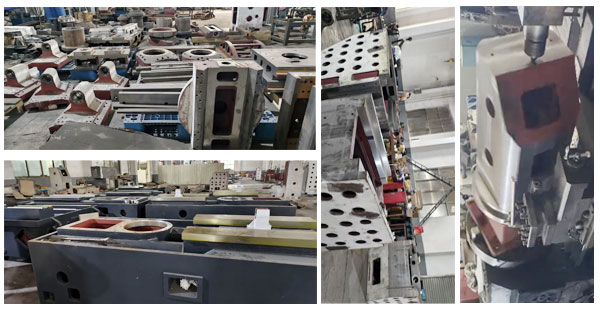

The gear cutting machine featured in this shoot adopts a horizontal layout with a cast iron bed and protective structure. This robust design ensures excellent vibration absorption and high machining accuracy. As the foundation of the machine, the bed determines overall stability. All key components—such as the axial system, slideways, coolant tank, tool holder, chip conveyor, and hydraulic clamping system—are assembled in-house to maintain strict quality standards before delivery. Additionally, vibration-damping pads are installed at the base, further enhancing operational stability and minimizing impact on the surrounding environment.

2. Powerful Machining Capability

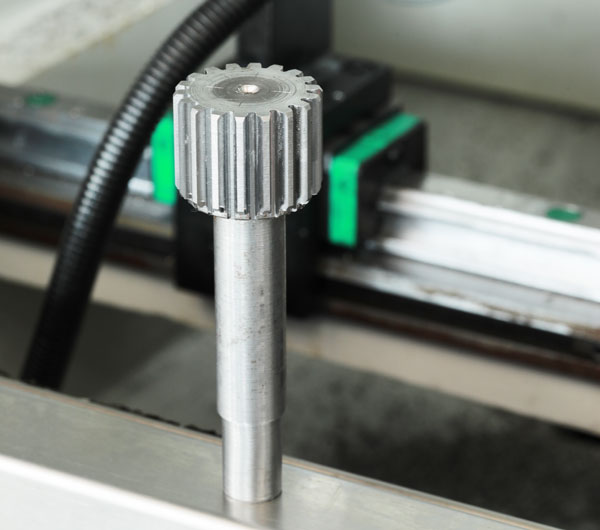

Despite its compact size, this horizontal gear cutting machine offers impressive performance. It can handle gears with a maximum module of 2.5 and a maximum machining diameter of 120mm, making it suitable for various gear specifications. The A-axis allows ±45° swivel adjustment, enabling the machine to process helical gears at different angles and broadening its range of applications.

3. Dry Cutting vs. Wet Cutting

In gear manufacturing, gear cutting machines typically operate using either 'dry cutting' or 'wet cutting' methods.

Dry cutting is an environmentally friendly and efficient process that eliminates the use of cutting fluids. Instead, it relies on high-speed cutting and advanced tooling to minimize friction and heat. This approach reduces environmental risks, eliminates the need for coolant management and disposal, and avoids potential corrosion caused by fluid residue.

In contrast, wet cutting uses coolant to assist with heat dissipation and lubrication, which can extend tool life and improve surface finish. However, it also introduces higher maintenance costs and potential pollution concerns.

With the growing emphasis on green manufacturing, dry cutting is becoming increasingly popular. This gear cutting machine is optimized for dry cutting, allowing clean production without compromising on quality—an ideal match for modern manufacturing demands.

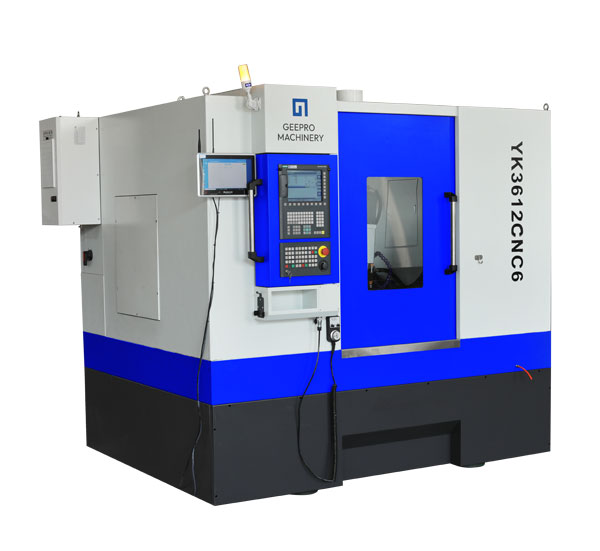

4. Compact Size – Perfect for Startups

For startups, space constraints and limited capital are often major challenges. Compared to vertical models, this horizontal gear cutting machine features a more compact design with a smaller footprint—ideal for workshops with limited space. This compactness reduces initial investment costs while still delivering excellent performance.

More importantly, the machine is easy to operate and maintain, making it accessible for small and medium-sized businesses to implement quickly. With a well-structured production plan, enterprises can scale up efficiently and lay a strong foundation for growth.

5. Smart Features for Higher Productivity

Beyond basic gear cutting functions, the machine is equipped with several smart features such as a tool monitoring system, which detects tool wear in real time and provides alerts for replacement or regrinding. This minimizes scrap caused by tool failure and boosts overall efficiency and product quality.

The built-in chip conveyor enables continuous operation by reducing the need for manual cleaning, while the hydraulic clamping system ensures secure workpiece positioning, preventing displacement during cutting and ensuring precision.

Together, these features make the gear cutting machine more than just a basic tool—it represents a step forward in automation and intelligent manufacturing.

6. Toward a Multi-functional Future

As the industry evolves toward efficiency, intelligence, and sustainability, multi-functionality is becoming a key trend in machine design. This horizontal gear cutting machine embodies that direction. In addition to conventional gear processing, it integrates tool detection, automatic chip removal, and hydraulic clamping—transitioning from a single-purpose machine to a comprehensive production solution.

7. Conclusion

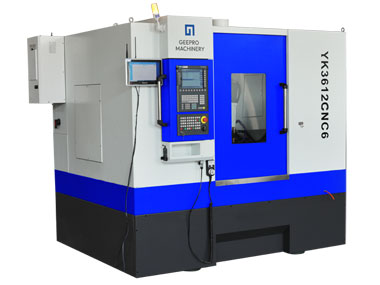

With its sturdy structure, reliable performance, strong cutting capabilities, and environmentally friendly dry cutting technology, this horizontal gear cutting machine is an ideal choice for small and medium-sized manufacturers. It not only meets a variety of gear machining requirements but also features smart and multifunctional technologies to help businesses stand out in a competitive market.

For entrepreneurs, choosing a high-performance, cost-effective, and versatile machine is critical. This gear cutting machine is a trustworthy partner that enables efficient production and supports sustainable growth. From cost control to space optimization and future scalability, it delivers impressive value.

Looking ahead, as manufacturing continues to evolve, gear cutting machines will move toward higher precision, efficiency, and intelligence. We will continue to monitor industry trends and provide advanced, practical solutions to support our customers' success.
