Gear hobbing machines are key to modern manufacturing. But what makes them so essential? These machines are crucial for industries like automotive, aerospace, and machinery production.
In this post, we’ll explore the role of gear hobbing machines and why they’re indispensable. You’ll learn about their importance in producing precise, high-performance gears and how they drive innovation in manufacturing processes.
Gear hobbing is a precise machining process used to create gears. A cylindrical tool called a hob rotates in sync with a gear blank. As the hob cutter moves along the gear blank, it carves the teeth of the gear. This synchronized motion allows for efficient, accurate gear production.
The process is ideal for producing gears in high volumes while maintaining consistency. The hob cutter is specially designed to match the specific gear profile required.
A gear hobbing machine consists of several key components:
Hob cutter: A rotating tool with teeth that shapes the gear.
Gear blank: A metal cylinder that forms the base of the gear.
Machine spindles: The parts that hold and rotate the hob cutter and gear blank.
Each component plays a crucial role in ensuring precision and efficiency in the hobbing process. The alignment between the hob cutter and the gear blank is vital for achieving the desired tooth shape and size.
Gear hobbing can produce a wide variety of gears, including:
Spur gears: These are the most common type of gear, used for transmitting motion between parallel shafts.
Helical gears: These gears have angled teeth, providing smoother engagement and less noise compared to spur gears.
Sprockets: Often used in chains, sprockets are a type of gear used in applications like bicycles and industrial machinery.
Each gear type serves specific needs in various industries, from automotive to aerospace, depending on the application requirements.
The gear hobbing process involves several key stages. First, the gear blank, a cylindrical piece of metal, is aligned with the hob cutter. The machine's spindles hold both the blank and the hob in place. As the hob cutter begins rotating, it gradually cuts the teeth of the gear, with each rotation carving deeper into the blank.
The cutting process is done in increments, ensuring the gear teeth form consistently. Depending on the type of gear, the speed and alignment of the machine are adjusted accordingly.
The synchronized movement of the hob cutter and the gear blank is critical. The gear blank rotates at a specific ratio to the hob cutter. This alignment ensures the teeth are evenly spaced and the gear's profile is accurate. Any misalignment could result in uneven teeth, leading to poor gear performance.
Without this precise synchronization, gear hobbing would fail to produce the necessary accuracy required for high-performance applications, such as in automotive or aerospace systems.
Gear hobbing machines are designed to achieve high precision. To produce accurate gears, the machine must be set up correctly. Even small errors in setup can affect the final product. For example, incorrect alignment can cause miscut teeth or uneven surfaces.
Machines like CNC hobbing machines are particularly important in ensuring this level of precision. These machines offer fine control over speed and alignment, allowing manufacturers to meet tight tolerances necessary for advanced industries.
The hob cutter is the heart of the gear hobbing process. This cylindrical tool has helical teeth designed to match the profile of the gear being produced. It rotates in sync with the gear blank, cutting the teeth in precise increments. The hob’s design varies depending on the type of gear being made. For example, hobs for spur gears have different tooth geometry than those for helical gears.
To ensure long-lasting performance, hob cutters are often coated with materials like titanium nitride. This coating enhances durability, reduces wear, and allows for smoother cutting operations, extending the tool's lifespan.

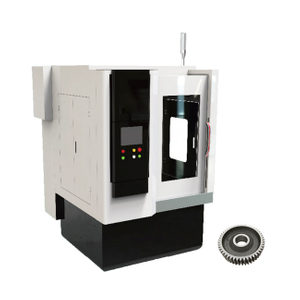

There are two main types of gear hobbing machines: manual and CNC (Computer Numerical Control).
Manual gear hobbing machines: These machines are best suited for small-scale production and simpler gear designs. They require more hands-on work and adjustment but are ideal for less complex tasks.

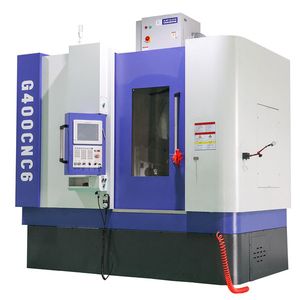

CNC gear hobbing machines: These advanced machines are programmed for higher precision and can handle more complex designs. CNC machines automate the process, making them perfect for high-volume production and intricate gear profiles. They allow for faster and more accurate production with minimal human intervention.
Each type has its benefits. Manual machines are cost-effective for smaller operations, while CNC machines are indispensable for industries requiring high precision and efficiency.
Several auxiliary tools play a crucial role in maintaining gear hobbing machine performance:
Lubricants and coolants: These reduce friction and prevent overheating, ensuring the hob cutter remains in good condition and the gear teeth are smoothly cut.
Alignment gauges: Used to ensure the hob and gear blank are perfectly aligned. Misalignment can result in inaccurate gears, so these gauges are essential for precision.
Fixtures and clamps: These tools secure the gear blank in place during the machining process. They help maintain consistent positioning, preventing any shifts that could lead to errors.
These tools ensure the gear hobbing process runs smoothly, improving efficiency and maintaining high-quality results.
In the automotive sector, gear hobbing machines are essential for producing gears used in transmissions, differentials, and power steering systems. These gears must endure high stress while maintaining precise performance. Gear hobbing ensures consistent tooth geometry, which is critical for smooth operation in vehicles.
For example, hobbing machines are used to create the precise gears needed for car engines and drivetrains, helping vehicles run efficiently and reliably.
The aerospace industry relies heavily on gear hobbing machines for producing durable, high-precision gears. These gears are crucial in aircraft engines, navigation systems, and other critical machinery. The precision and reliability of hobbing allow these parts to perform in the extreme conditions of air travel.
In heavy-duty industrial machinery, gear hobbing ensures that gears used in conveyor systems, presses, and mining equipment can handle heavy loads and operate reliably over long periods.
As robotics and automation continue to grow, the demand for high-precision gears is also increasing. Gear hobbing machines are crucial for producing the small, precise gears needed in robotic systems. These gears ensure that robots operate smoothly and efficiently, even in complex and fast-moving tasks.
The rise of automation has made gear hobbing even more vital, as advanced robots require gears that are both precise and durable to meet the demands of modern manufacturing.
One of the major benefits of gear hobbing machines is their efficiency. They can produce gears at high speeds, making them ideal for large-scale production. By cutting teeth in one continuous setup, hobbing machines reduce the need for multiple operations. This minimizes production time and labor costs, making it an affordable option for manufacturers.
Additionally, the durability of the hob cutter and the reduced need for secondary processes like grinding or shaving contribute to long-term cost savings.
Gear hobbing machines are highly versatile. They can create a wide range of gears, from simple spur gears to complex helical and worm gears. The machines can also handle different sizes and profiles, offering flexibility across various industries.
This versatility makes hobbing machines essential in fields like automotive, aerospace, and industrial machinery, where custom gears are often needed for specific applications.
Despite their many advantages, gear hobbing machines face some challenges. One issue is tool wear. Continuous use, especially when cutting harder materials, can cause the hob cutter to wear down quickly, requiring frequent replacement.
Additionally, material limitations present another challenge. Certain alloys or composites can be difficult to machine efficiently, leading to increased wear and reduced tool life.
Lastly, the need for high precision in advanced industries, like aerospace and robotics, means gear hobbing machines must be meticulously calibrated. This can increase setup times and complexity, particularly when working with tight tolerances.
CNC technology has significantly changed gear hobbing machines, making them faster and more precise. Automation has reduced the need for manual labor, allowing machines to perform complex tasks with minimal human intervention. This leads to more consistent gear production and faster turnaround times.
CNC-controlled machines are also highly adaptable, capable of handling complex gear designs and tight tolerances. With ongoing advancements, we can expect even more improvements in automation, further enhancing efficiency and accuracy in gear manufacturing.
As environmental concerns grow, gear hobbing machines are evolving to meet sustainability standards. Many modern machines are designed to be energy-efficient, reducing power consumption during operation. In addition, manufacturers are turning to eco-friendly lubricants and coolants, minimizing environmental impact without compromising performance.
These eco-conscious improvements are not only beneficial for the planet but also contribute to cost savings in the long run, making them a smart choice for forward-thinking companies.
Advancements in material science are influencing the durability and performance of gear hobbing machines. New, high-performance alloys are being used in the construction of hob cutters, increasing their resistance to wear and extending their lifespan.
Innovations in coatings, such as diamond-like carbon (DLC), are further improving tool longevity and cutting efficiency. These innovations will continue to push the boundaries of gear hobbing, allowing machines to handle more challenging materials and demanding production requirements.
Gear hobbing machines play a crucial role in modern manufacturing, ensuring precise and efficient gear production. They are essential in industries like automotive, aerospace, and robotics.
As technology advances, the future of gear hobbing will see even greater automation, eco-friendly practices, and innovations in materials. These developments will continue to improve accuracy, speed, and sustainability in manufacturing processes.
