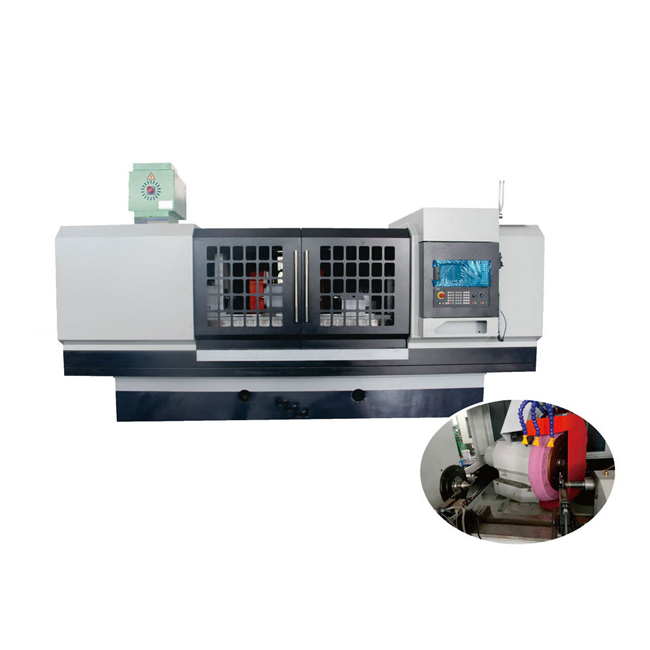

500mm Length Horizontal End Face Grinding Machine for Flange

Horizontal end face grinding machine

High-precision machining:

applies to flanges and bearing rings, realizing very high machining precision and smoothness.

Increased productivity

High applicability:

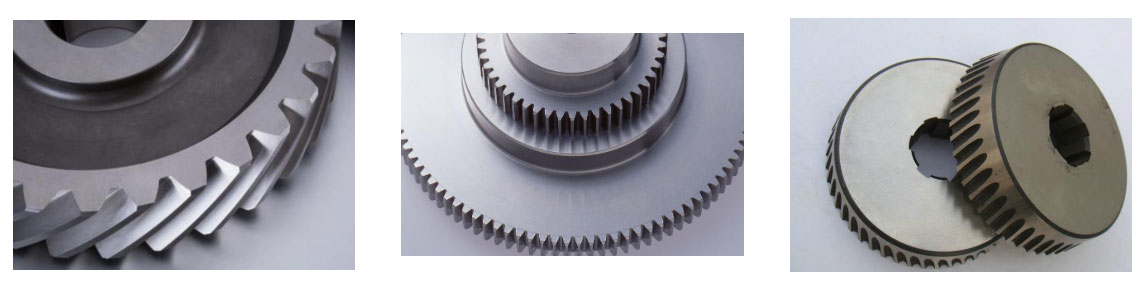

Efficient grinding processing is possible whether the parts are round, disk-shaped or other shapes.

Enhanced product quality:

meets market standards and customer needs

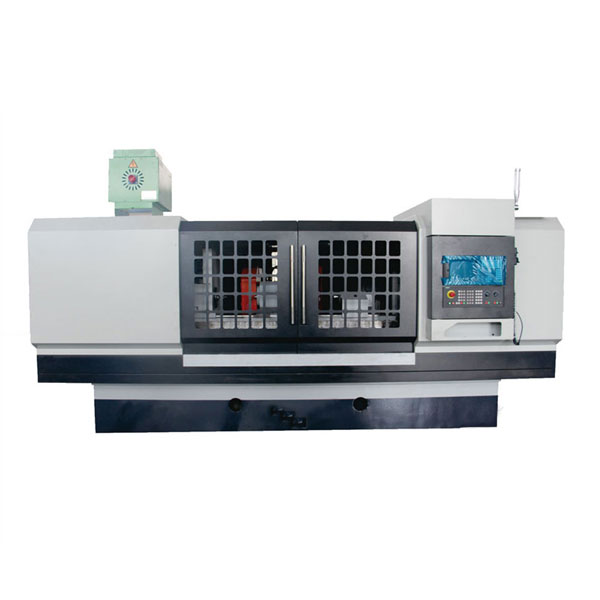

• The majority of the machine tool is constructed from cast iron, it has a fully encased protective cover, a backpack-like electrical cabinet in the rear, and a rotary motion screen in the front.

• It can repeatedly process steps and faces at the same time.

• The more intricate the shape of the component, the more beneficial the effects of the machine can be attained.

Max.Grinding length: 500-1500mm

Grinding OD scope:8-320mm

Roundness:0.002mm

Surface roughness:Ra 0.32um
