CNC Universal External Cylindrical Grinder for Long Shaft Parts

CNC universal external grinding machine

The numerical control system adopts Siemens numerical control, and the after-sales guarantee period is 2 years.

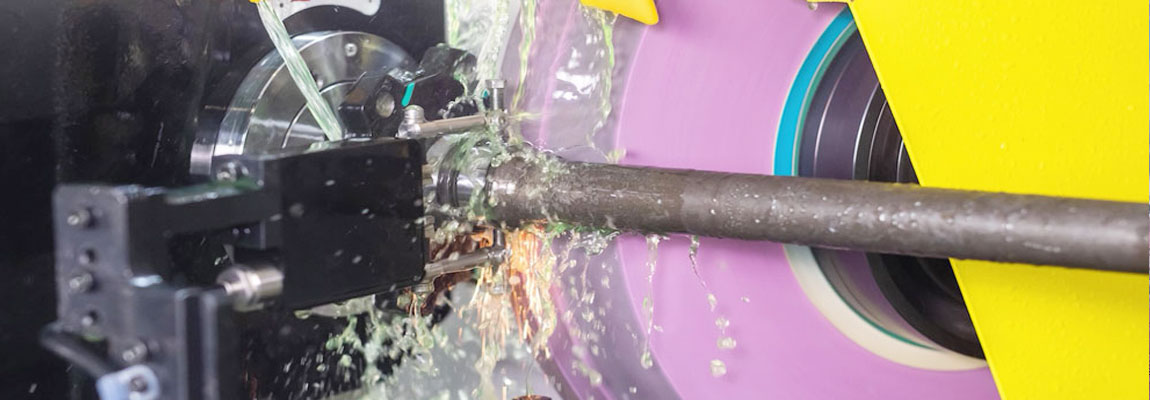

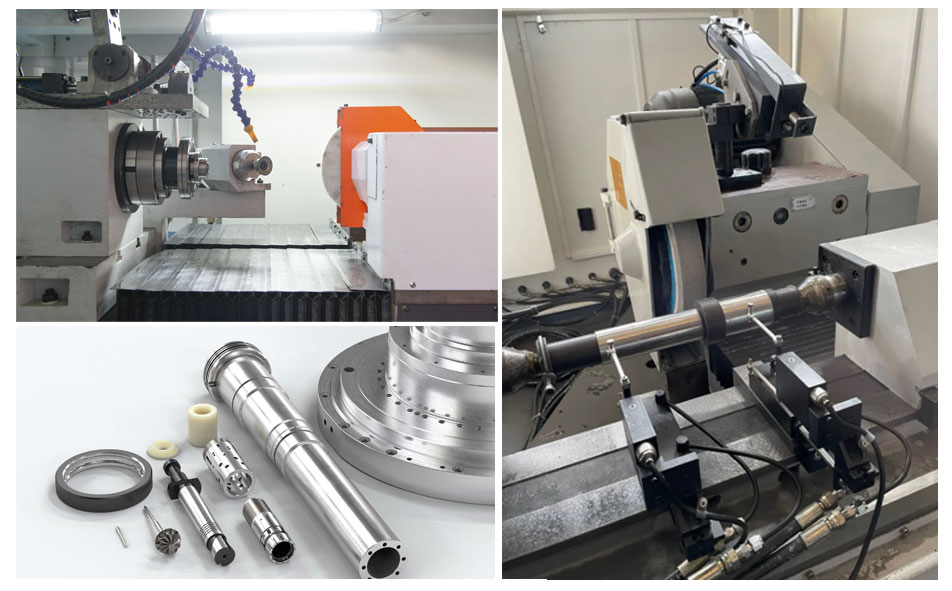

1. Long shaft parts: such as transmission shafts, motor shafts, etc.

2. stepped shafts: for shaft parts with different diameter segments, precise grinding of each stepped part.

3. Tapered external surfaces: e.g. certain tool handles or special mechanical parts

4. Thin-walled parts: such as thin-walled pipe fittings

5. Complex shaped external contours: Precise grinding by means of special fixtures and programming, including non-circular contours such as polygons and ellipses.

6. Precision fit parts: such as bearing rings, gear shafts, etc.

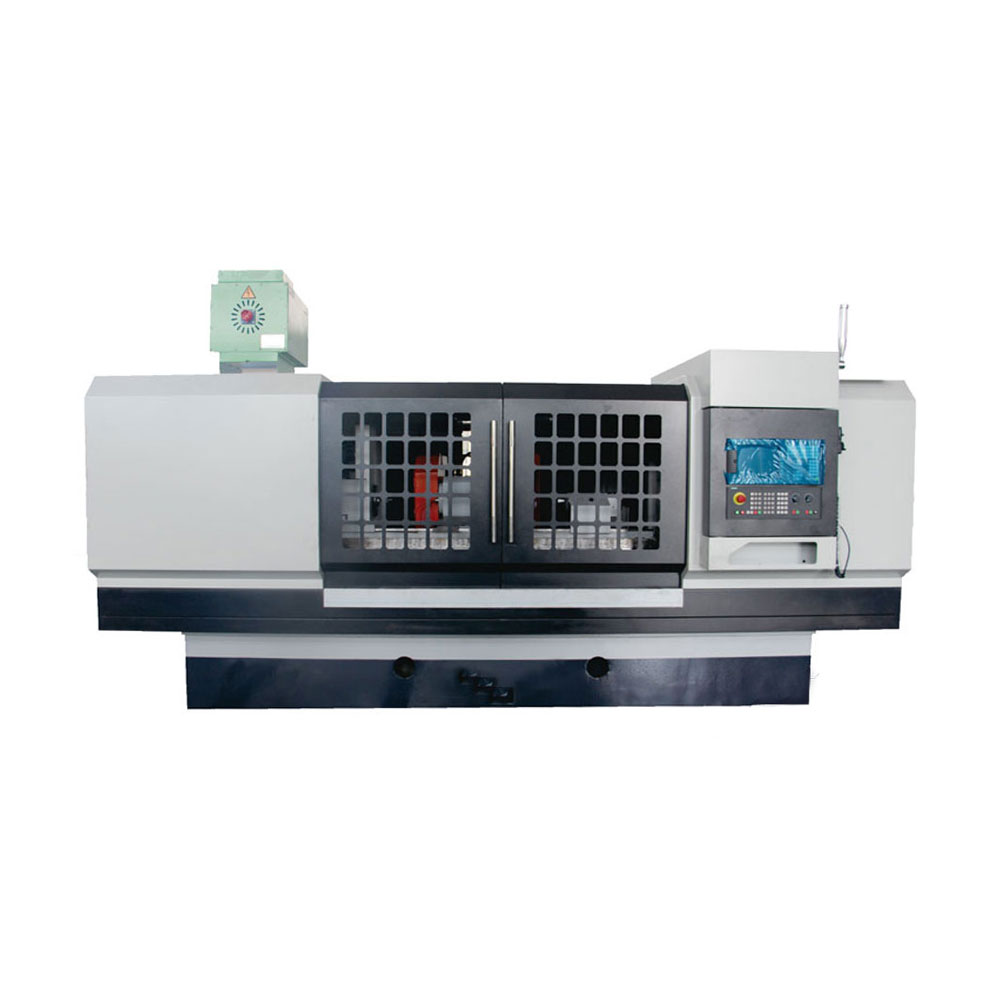

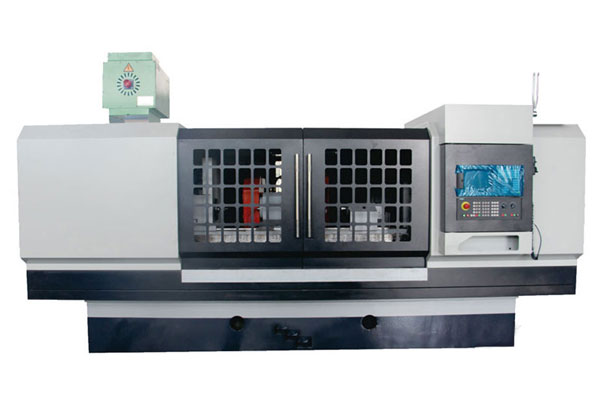

MK1432 is a full function 3-axis machine tool that is designed to accommodate large sized workpieces.

X-axis: This axis is usually the lateral feed axis of the grinding wheel holder. By adjusting the movement of the X-axis, different diameters of the outer circle can be ground or contours such as steps and grooves can be machined.

Z-axis: This axis represents the longitudinal movement of the table and is suitable for grinding parts of different heights or lengths of longer workpieces.

B-axis: This axis is the indexing rotary axis of the grinding wheel holder base. By rotating the B-axis, the machine is able to achieve precise machining of complex angles, increasing machining flexibility and adaptability.
