What Is A Gear Hobbing Machine?

A gear hobbing machine is a specialized apparatus used in the creation and processing of gears. It utilizes a cutting mechanism called a hob that will progressively reduce the teeth of the gear into a finished product. This procedure is highly effective and exact, which is why it's important in the production of high quality gears that are used in various industrial endeavors.

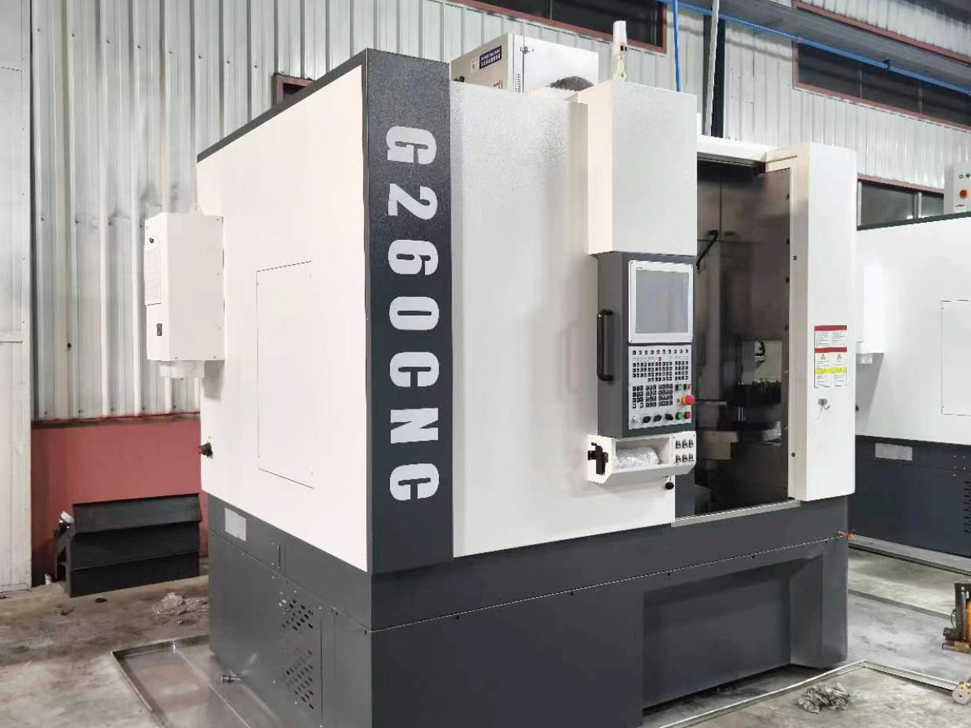

Introduction to the G Series High-Speed CNC Gear Hobbing Machine

The G Series High-Speed CNC Gear Hobbing Machine is specifically designed to produce and machine versatile, spherical spurges, helical spurges, upper and lower spurges, synchronous belt pulleys, spline spurges, worm spurges, and rollers. This advanced machine features a vertical design, this machine incorporates a robotic arm that is tailored to different product types, this increases the efficiency of production. Flexibility and versatility are both standout features of this hobbing machine. It can accommodate a variety of gear types and sizes with a high degree of precision. Whether you're manufacturing small precision gears or large diameter ones, this machine guarantees consistent quality across all products.

Special Design Additions

The G Series High-Speed CNC Gear Hobbing Machine has unique design features including the "virtual Y-axis," which provides a large sliding range and advanced drive technology. This innovative design promotes precision and flexibility in the manufacturing of gearpairs. The processing capabilities of this machine are exceptional and it is capable of processing both cylindrical and helical spur gears with a high degree of accuracy. Additionally, the machine is efficient in the processing of worm gear using a single index method, this makes it appropriate for complex manufacturing tasks.

Technical Advantages:

Workpiece Range Handling: The machine's capacity to manage diverse workpieces, including small precision gears and large diameter ones, makes it ideal for various industrial applications.
Long Tool Life: The machine's water-disabled workpiece and tool spindles allow it to have a long lifespan, even when operated in a continuous manner. This capability is beneficial in small batch production environments, where efficiency is of the essence.

Automation Solutions

Depending on the type of work and the desired degree of automation, the Automated Loading High-Speed CNC Gear Hobbing Machine has multiple automation options. These range from manual approaches that are still somewhat primitive to fully automated solutions that simplify the entire production process. The cost efficiency ratio of this machine is striking. Its advanced features combined with cost-effective operation make it a significant investment for companies that want to produce high quality gear manufacturing solutions.

Aerospace: For manufacturing precise, durable components used in aircraft engines and other aerospace components.
High-Speed Rail Transportation: Essential for manufacturing durable components used in trains.
Medical Devices: They're used in the creation of precise components that are necessary for medical equipment.
Precision Molds: They're ideal for producing intricate molds that are used in the manufacturing of electronic devices.

Ease of Operation

The human-machine interface (HMI) facilitates operators through each step of the process of making a gear. This intuitive interface reduces the need for specialized training while still ensuring a consistent quality output. Extra equipment and features are available as an option, these configurations include: Fanuc 31I CNC controller, increased speed ranges, automatic loading systems. Extra equipment can be custom designed based on specific practical needs to further increase productivity and versatility.

Conclusion, a hobbing machine like the G Series High-Speed CNC Gear Hobbing Machine is essential in modern manufacturing because of its efficient, precise, and versatile nature. Its superior features including automated loading, long tool life, quick conversion times, and ease of operation make it an invaluable resource to any industry that requires superior gearing solutions.
