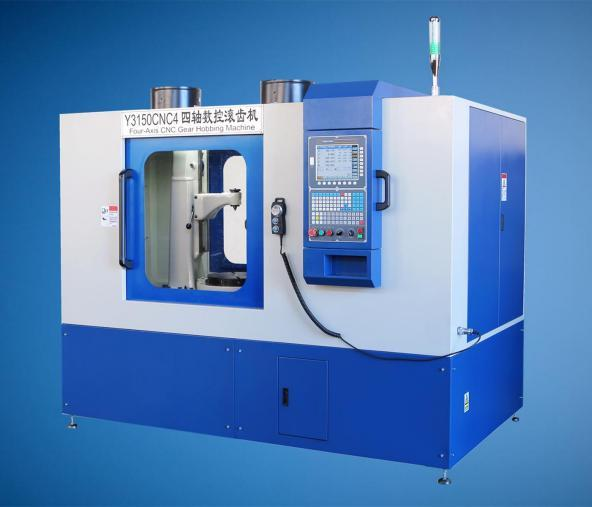

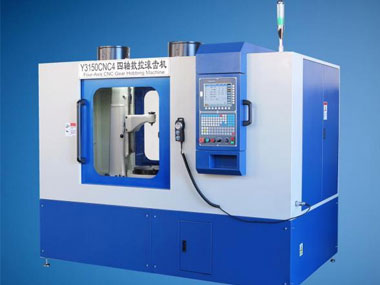

Y3150CNC4 four-axis CNC gear hobbing machine is a four-axis machine , with four servo axes, two CNC linear axes: radial feed axis (X-axis); axial feed axis (Z-axis); two CNC rotary axes: table rotary axis (C-axis); hob spindle rotary axis (B-axis). The machine tool can realize simultaneously four-axis linkage control.
The Y3150 4-axis CNC Gear Hobbing Machine is a testament to the ongoing innovation within the manufacturing industry. By integrating advanced CNC technology and semi-automatic capabilities, this machine is setting new standards for gear production. Its ability to handle a diverse range of gear sizes and complex shapes makes it an indispensable tool across various sectors, including automotive and aerospace.
CNC control system and 4-axis design not only enhance the machine's precision but also its operational efficiency. This translates to faster production cycles and reduced costs, providing a competitive edge to manufacturers. The semi-automatic functionality further streamlines operations, minimizing the need for extensive manual input and reducing labor expenses.
Built on a reinforced cast iron base, the Y3150 ensures vibration-damping during heavy cutting. This structural integrity translates directly into superior surface finishes and extended tool life, ensuring that your production line remains uninterrupted.
For workshops accustomed to mechanical hobbing machines, the transition to the Y3150 is seamless. The 4-axis CNC system provides an intuitive interface that reduces the learning curve for operators, allowing them to produce complex gears shortly after installation.
Cutting Module | |
Steel | 4mm |
Cast iron | 5mm |
Maximum diameter for machining straight cylindrical gears | |
With small column | 350 mm |
Without small column | 500 mm |
Maximum diameter of cylindrical helical gears and tool holder stroke | |
For a helix angle of 30° right-hand rotation, the machining diameter is 370 mm and the tool holder stroke is 160 mm For a helix angle of 30° left-hand rotation, the machining diameter is 370 mm and the tool holder stroke is 240 mm For a helix angle of 45° right-hand rotation, the machining diameter is 250 mm and the tool holder stroke is 65 mm For a helix angle of 45° right-hand rotation, the machining diameter is 250 mm and the tool holder stroke is 105 mm | |
Maximum travel length of the tool holder slide- | 240 mm |
Distance between the hob spindle and the table centre line | |
Maximum | 310mm |
Minimum (hob spindle to table distance greater than 185 mm | 30mm |
Maximum machining helix angle | 45 degrees |
Taper of spindle taper (Morse taper) | No.4 |
Class | 7 |
Minimum distance from the hob arbor axis to the table surface | 170 mm |
Maximum distance from hob arbor axis to table surface | 410 mm |
Interchangeable arbor diameter of the hob | 22, 27 mm |
Maximum diameter of hob | 120 mm |
Table hole diameter | 60 mm |
Maximum table speed | 12r/min |
Hob spindle speed range | 0～500 rpm |
Radial feed rate | 0～6000 rpm |
Axial feed rate | 0～6000 rpm |
Pump motor power | 120w 2760 rpm |
Machine weight (with accessories) | 3200kg |
Overall dimensions | 2350×1650×2200mm |
Due to different international standards, it is difficult to have exactly the same machine, but this machine meets the semi-automatic requirements. If you need to produce the gear hobbing machine according to customer's requirement, please offer the drawing, and contact us. thank you.
In conclusion, the Y3150 4-axis CNC Gear Hobbing Machine is more than just a piece of equipment; it is a strategic investment for manufacturers aiming to enhance their production capabilities. Its blend of precision, efficiency, and versatility ensures that it meets the evolving demands of modern manufacturing, helping companies maintain a competitive edge in a rapidly advancing industry.
