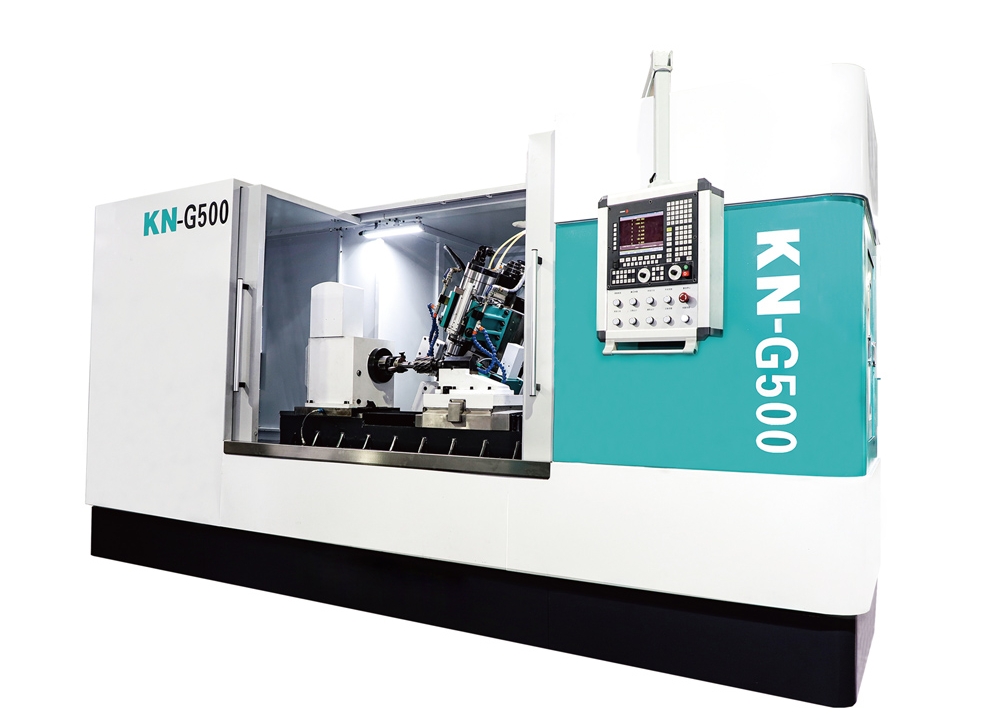

What is G500 Profile Gear grinding machine？

The G500 Profile Gear Grinding Machine is a state-of-the-art piece of equipment designed for high-precision gear grinding. This machine utilizes a CNC dresser to shape the grinding wheel to match the gear profile, ensuring that each gear produced meets exacting standards of accuracy and quality. Compared to traditional gear grinding methods, the G500 offers several advantages including higher efficiency, superior tooth profile accuracy, simpler machine structure, and ease of installation, operation, and maintenance. These features make it particularly suitable for mass production of high-precision gears.

Key Features and Advantages

1. High Efficiency
   The G500 Profile Gear Grinding Machine is engineered for high productivity. Its advanced CNC control system allows for rapid adjustments and precise movements, significantly reducing cycle times compared to conventional methods. This efficiency translates into lower production costs and faster turnaround times, making it an ideal choice for industries that require large volumes of gears in short timeframes.

2. Superior Tooth Profile Accuracy
   One of the standout features of this machine is its ability to produce gears with exceptionally high tooth profile accuracy. The CNC dresser shapes the grinding wheel with diamond dressing tools fixed in position relative to the grinding head. This ensures consistent precision across all gears produced. High tooth profile accuracy is crucial in applications where even minor deviations can lead to significant performance issues or mechanical failures.

3. Simplified Machine Structure
   The G500 boasts a simplified yet robust machine structure that enhances reliability while minimizing maintenance requirements. This design philosophy not only reduces downtime but also extends the operational lifespan of the machine. A simpler structure means fewer components are prone to wear and tear, which further contributes to its durability and long-term performance.

4. Ease of Installation, Operation, and Maintenance
   Designed with user-friendliness in mind, the G500 is easy to install and set up. Its intuitive interface simplifies operation, making it accessible even for operators with minimal training. Additionally, routine maintenance tasks are straightforward thanks to its well-thought-out design that allows easy access to critical components without requiring specialized tools or extensive disassembly.

5. Mass Production Capability
   Given its high efficiency and precision capabilities, the G500 Profile Gear Grinding Machine is ideal for mass production environments where large volumes of high-precision gears are required. Whether it's automotive manufacturing or aerospace engineering, this machine can handle demanding production schedules without compromising on quality.

Technical Specifications

• CNC Control System: Enables three-axis linkage control for precise corrections in normal directions.

• Diamond Dressing Wheel: Utilized for shaping the grinding wheel; fixed relative to the grinding head.

• Grinding Wheel: Precisely dressed by CNC-controlled diamond tools to match gear profiles accurately.

The technical specifications highlight how advanced technology integrates into every aspect of this machine's functionality—from its control systems down to its dressing tools—ensuring optimal performance at all times.

Applications Across Various Industries

The versatility and precision of the G500 make it suitable for a wide range of industrial applications:

• Aerospace: Essential for producing high-precision gears used in aircraft engines and other aerospace components where reliability and performance are non-negotiable.

• Automotive: Ideal for manufacturing durable gears required in automotive transmissions and drivetrains which demand both strength and precision.

• Precision Machinery Manufacturing: Perfect for creating intricate components needed in various machinery where exact dimensions are critical.

• Heavy Machinery Engineering: Suitable for crafting robust parts essential in heavy-duty machinery that must withstand extreme conditions.

• Electronics Equipment Manufacturing: Helps produce reliable components used in electronic devices where miniaturization does not compromise on precision.

• New Energy Vehicles (NEVs): Critical for developing parts used in electric vehicles which require innovative solutions due to their unique powertrain configurations.

Conclusion

In summary, the G500 Profile Gear Grinding Machine stands out as an indispensable tool in modern manufacturing due to its high efficiency, superior tooth profile accuracy, simplified structure, ease of use, and suitability for mass production. Whether you are involved in aerospace engineering or automotive manufacturing—or any industry requiring precise gearing solutions—the G500 offers unparalleled performance that meets your needs.
