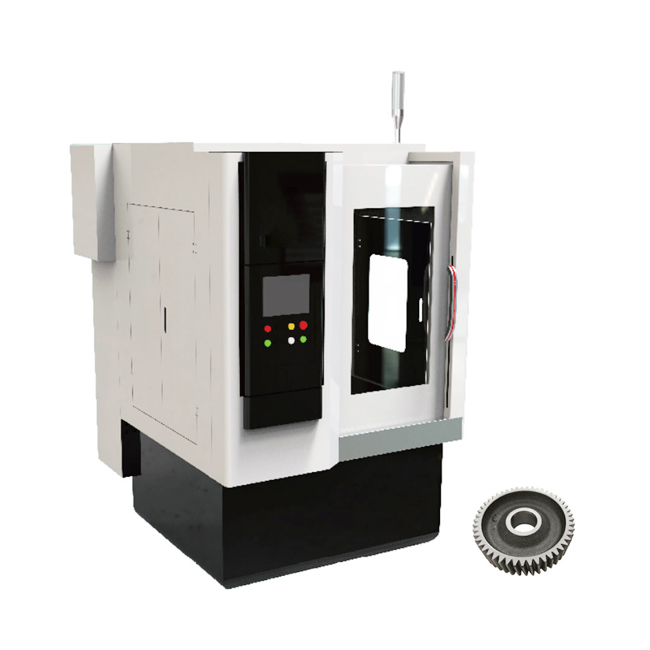

CNC Horizontal Gear Round Chamfering Machine with brush

CNC Gear chamfering machine

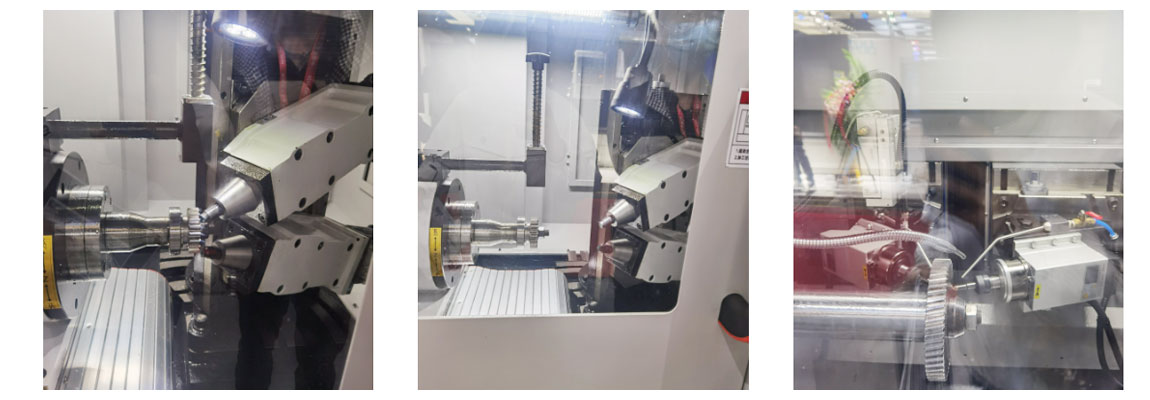

The machine supports high-speed chamfering with toothed-engagement chamfering tools or general-purpose machine-clamped inserts.

It can hold a variety of high-efficiency chamfering tools, such as machine-clamped universal blade rotary chamfering cutters, rolled-down engaging chamfering cutters, toothed engaging chamfering cutters and chamfering turning tools.

By adopting different types of chamfering and chamfering tools, the machine is able to realize diversified chamfering process cutting to meet the different process requirements of customers for sharp and rounded corners as well as chamfering and chamfering to realize the function of multi-purpose of one machine.

1. The chamfering machine with brush that integrates chamfering and subsequent processing (e.g. deburring, preliminary polishing) in one machine is capable of completing multiple tasks in a single process, shortening the flow time of workpieces between different workstations, and together with the automatic loading and unloading system, it is possible to realize high-efficiency production around the clock.

2. The automated brush system reduces the need for manual intervention, especially in the deburring and surface cleaning section, eliminating the need for additional labor to manually grind or clean, thus saving labor costs.

3. The uniform action of the brushes ensures that the chamfering process of each workpiece achieves a consistent high quality standard. Especially for precision parts, the fine machining capability of the brushes helps to maintain tight tolerances and improve the overall quality of the product and its competitiveness in the marketplace.
