How To Choose A Dual-Spindle Automated CNC Lathe?

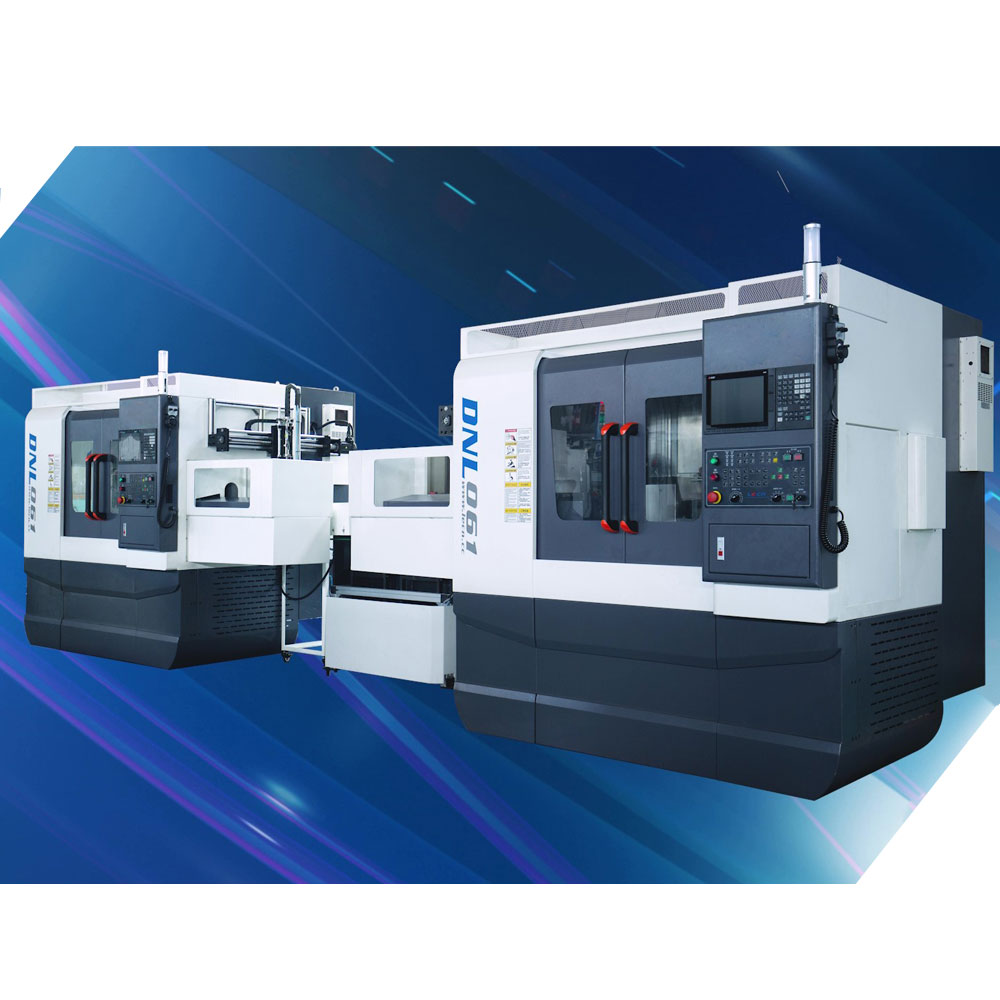

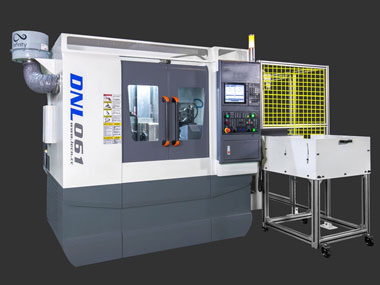

What is a Dual-Spindle CNC Lathe?

A dual-spindle CNC lathe is a highly efficient machine tool capable of simultaneously machining both ends of a workpiece. It features two spindles, each of which can hold and rotate a workpiece, allowing for the simultaneous processing of two different parts or the same part at both ends. This setup significantly enhances productivity and efficiency, making it a popular choice in modern manufacturing.

Workpieces Processed by Dual-Spindle CNC Lathes

Dual-spindle CNC lathes can process a wide variety of workpieces:

1. Complex Parts: Components with intricate geometries, such as flat surfaces, end faces, grooves, outer diameters, and steps, that require multiple operations.

2. High-Precision Parts: Parts that demand high accuracy and tight tolerances, such as those used in the aerospace, automotive, and medical industries.

3. High-Volume Production: Automated production lines that increase the efficiency of CNC lathes, reducing costs and improving productivity.

4. Shaft-Type Workpieces: Shafts used in automotive and mining machinery.

5. Various Materials: Metals (steel, aluminum, brass, etc.), plastics, and composite materials.

Advantages of Dual-Spindle CNC Lathes

High Energy Efficiency:

1. Reduced Power Consumption: Advanced control systems and efficient motors minimize energy usage.

2. Optimized Operations: Simultaneous machining reduces overall cycle time, leading to lower energy consumption per part.

Compact Footprint:

1. Space Savings: Compared to multiple single-spindle machines, dual-spindle CNC lathes occupy less floor space, optimizing the use of available area.

2. Flexible Layout: Easier integration into existing production lines and workshops.

High-Volume Production:

1. Increased Throughput: Two spindles working in tandem can double the production rate.

2. Continuous Operation: One spindle can load and unload while the other is machining, reducing downtime.

Improved Productivity:

1. Faster Cycle Times: Multiple operations can be performed in a single setup, reducing the need for additional setups.

2. Reduced Setup Time: Quick changeover times and automated processes enhance overall efficiency.

Enhanced Precision:

1. Consistent Quality: Advanced control systems ensure consistent and high-quality output.

2. Tight Tolerances: Capable of achieving very tight tolerances, making them ideal for precision parts.

Applications of Dual-Spindle CNC Lathes

Dual-spindle CNC lathes are widely used in various industries, including:

1. Aerospace: Manufacturing aircraft components such as engine parts, landing gear, and structural elements.

2. Automotive: Production of engine components and transmission shafts.

3. Mining Equipment: Machining of mining drill bits and other equipment.

4. Electronics: Fabrication of precision components for electronic devices.

5. General Manufacturing: Production of a wide range of industrial products and consumer goods.

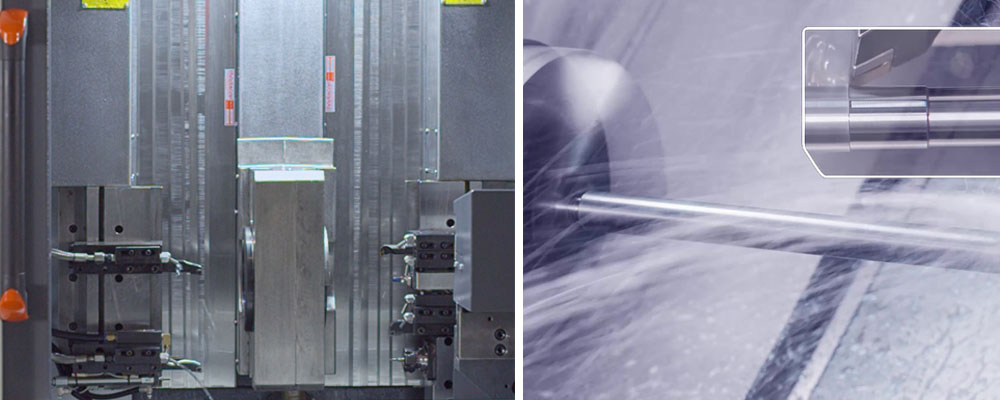

Differences Between Slant-Bed and Flat-Bed CNC Lathes

1. Rigidity and Cutting Performance:

Slant-Bed CNC Lathe:

Higher Rigidity: The slanted bed design provides better support and stability, especially during heavy cutting operations.

Better Chip Management: The angled bed helps in directing chips away from the work area, improving chip evacuation.

Flat-Bed CNC Lathe:

Moderate Rigidity: While still robust, flat-bed lathes may not offer the same level of rigidity as slant-bed lathes.

Standard Chip Management: Chip evacuation is typically less efficient compared to slant-bed lathes.

2. Processing Accuracy:

Slant-Bed CNC Lathe:

Higher Accuracy: The rigid structure and stable design contribute to higher precision and repeatability.

Better Surface Finish: The stable platform allows for smoother and more consistent surface finishes.

Flat-Bed CNC Lathe:

Good Accuracy: Still capable of producing high-quality parts, but may not match the precision of slant-bed lathes.

Satisfactory Surface Finish: Suitable for most general machining tasks.

3. Machine Layout:

Slant-Bed CNC Lathe:

Ergonomic Design: The slanted bed provides better operator access and visibility, making it easier to load and unload parts.

Space Optimization: The angled design often requires less floor space, making it ideal for compact workshops.

Flat-Bed CNC Lathe:

Traditional Layout: The flat bed is more traditional and straightforward, with a simpler design.

Standard Space Requirements: May require more floor space compared to slant-bed lathes.

4. Automation and Productivity:

Slant-Bed CNC Lathe:

Better Automation Integration: The design is more conducive to integrating with automation systems, such as robotic loading and unloading.

Higher Productivity: The combination of rigidity, accuracy, and automation capabilities leads to higher overall productivity.

Flat-Bed CNC Lathe:

Moderate Automation Integration: Can still be integrated with automation, but may not be as seamless as slant-bed lathes.

Good Productivity: Still offers good productivity, especially for general machining tasks.

Customization Services

We provide a range of customization services to meet the specific needs of our clients:

1. Customized Solutions:

Tailored Design: We work closely with you to design and build CNC lathes that fit your unique requirements.

Special Features: Incorporate special features and functionalities to enhance performance and efficiency.

2. Automation Lines:

Truss Robots and Articulated Robots: Our CNC lathes can be integrated with truss robots and articulated robots to create fully automated production lines.

Efficiency Boost: Automation reduces manual labor, increases throughput, and ensures consistent quality.

Tool Wear Monitoring System

1. When Does Tool Wear Occur?

Continuous Use: Tools wear out over time due to continuous use, especially in high-volume production.

Material Hardness: Working with harder materials can accelerate tool wear.

Cutting Conditions: Aggressive cutting parameters, such as high speeds and feeds, can lead to faster wear.

2. Consequences of Tool Wear:

Reduced Quality: Worn tools can result in poor surface finish and dimensional inaccuracies.

Increased Downtime: Frequent tool changes and adjustments can lead to production delays.

Higher Costs: Replacing worn tools frequently increases operational costs.

3. Prevention and Maintenance:

Regular Inspection: Regularly inspect tools for signs of wear and replace them as needed.

Proper Lubrication: Ensure proper lubrication to reduce friction and heat, which can cause wear.

Optimal Cutting Parameters: Use appropriate cutting speeds and feeds to extend tool life.

Tool Wear Monitoring System: Install a tool wear monitoring system to continuously track the condition of the tools. This system can alert operators when tools need to be replaced, ensuring optimal performance and minimizing downtime.

4. Installation and Benefits:

Real-Time Monitoring: The system provides real-time data on tool condition, allowing for proactive maintenance.

Extended Tool Life: By detecting wear early, the system helps extend the life of the tools, reducing replacement frequency.

Consistent Quality: Ensures that parts are machined with consistent quality, reducing scrap and rework.

Cost Savings: Reduces the need for frequent tool replacements, lowering operational costs.

Conclusion

Dual-spindle CNC lathes are powerful and versatile machines that offer significant advantages in terms of energy efficiency, compact footprint, and high-volume production. They are widely used in various industries, from aerospace to automotive, and are available in both slant-bed and flat-bed configurations, each with its own set of benefits. By choosing the right type of CNC lathe and incorporating advanced features like tool wear monitoring systems and automation, manufacturers can achieve higher productivity, better quality, and cost savings. Our customization services and automation solutions further enhance the capabilities of these machines, making them an excellent investment for any modern manufacturing operation.
