Views: 200 Author: Site Editor Publish Time: 2024-12-20 Origin: Site

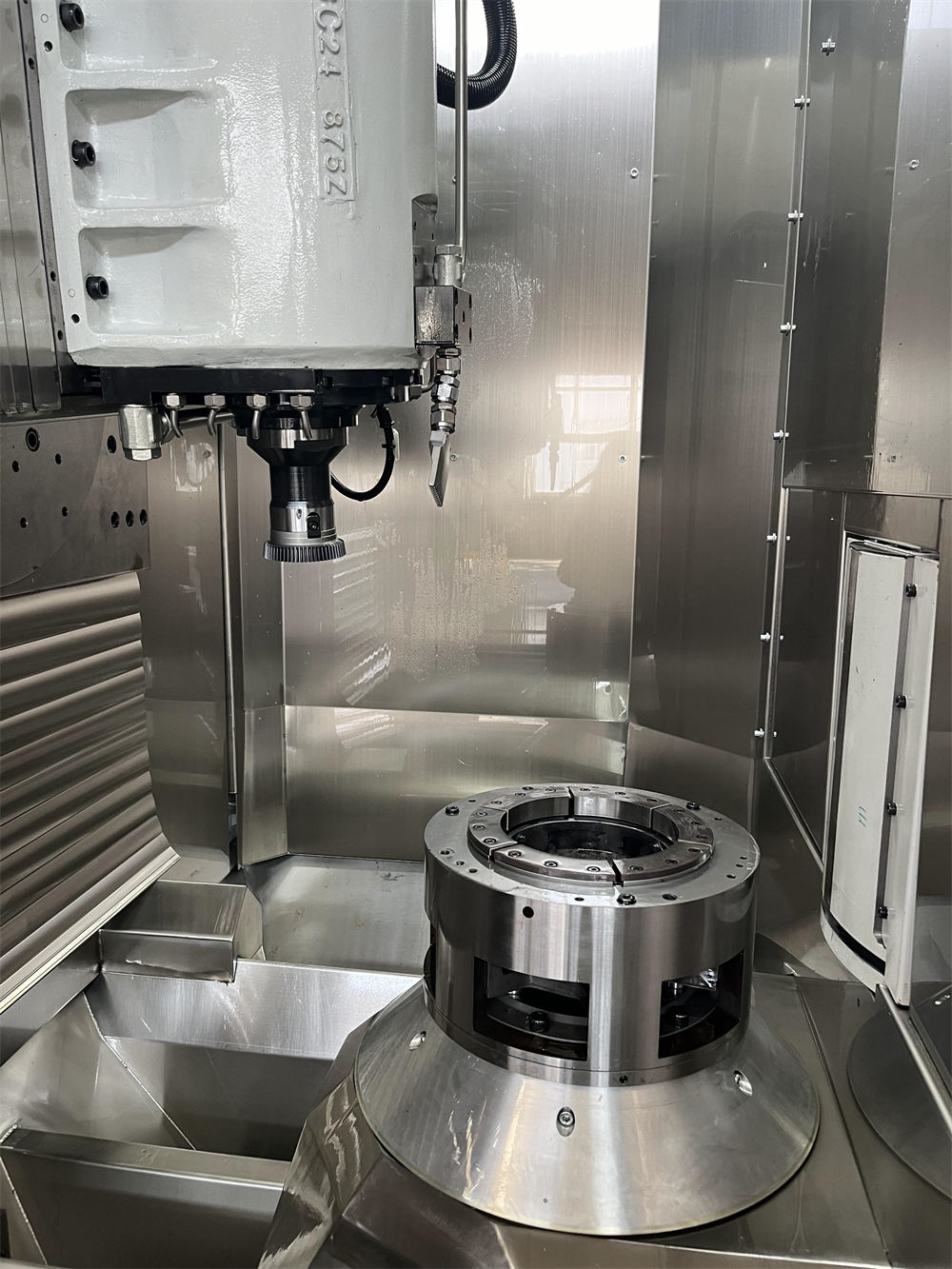

A gear skiving machine is a high-speed technology used to manufacture gears. It combines the principles of gear hobbing and shaping, precisely cutting the workpiece to form the gear teeth. This machine is specially designed so that after the tool is correctly positioned relative to the workpiece and both are synchronized in rotation, the tool engages with the material, performing continuous axial feed "rolling" to cut the material. The gear skiving machine can process various types of gears, including straight, helical, and internal gears.
Since processing is achieved through rotational motion rather than the reciprocating movement of traditional shaping machines, processing time can be significantly reduced. Integrated automation and control systems enable modern gear skiving machines to provide high precision, repeatability, and efficiency in gear manufacturing, ensuring each gear meets high-quality standards.
Insights from Shanghai Bauma Exhibition
This year, during my visit to the Shanghai Bauma Exhibition, I observed the gears used in construction machinery and learned about different gear manufacturing processes. I noticed advancements in machine design, cutting tools, and materials. Many benchmark factories produce a substantial volume of gears annually, highlighting the progress in gear manufacturing technology.
Securely mount the raw material or pre-machined blank on the machine's spindle or chuck. Proper fixturing ensures accurate positioning and stability during machining.
Install appropriate cutting tools, such as single-point cutters or form tools. These tools are selected based on specific gear processing requirements and installed in the tool holder.
Modern gear skiving machines typically operate using CNC (Computer Numerical Control) systems. Pre-programmed instructions control the tool's movement paths and the workpiece's rotational speed, enabling precise control over cutting depth, feed rate, and speed.

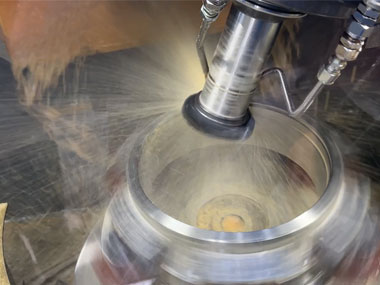

The machine cuts the rotating workpiece by moving the tool relative to it. Depending on the type of gear being processed, different cutting methods may be employed:
Hobbing: Using a hobbing cutter that rotates while engaging with the workpiece to cut teeth.
Shaping: Employing a reciprocating tool that cuts one tooth at a time.
Skiving: Utilizing a high-speed cutting process suitable for internal and external gears.
During cutting, coolant is applied to lubricate the cutting area, reduce heat, and flush away chips, ensuring a clean and efficient machining process.
Uses single-point cutting tools or form tools, precisely controlling the tool and workpiece’s relative movements to individually cut each gear tooth.
Suitable for small batch production or highly customized situations.
Uses a hob that rotates synchronously with the workpiece, continuously cutting the entire gear tooth profile.
Primarily used for large-scale production of standard gears, especially cylindrical gears.
Processing Precision:
Highly dependent on the precision and stability of the CNC system, achieving very high processing accuracy.
Ideal for complex-shaped gears, ensuring high consistency of each tooth.
Precision depends on the quality of the hob and the rigidity of the machine, generally achieving high processing accuracy.
In large-scale production, hobbing machines offer higher repeat accuracy but have limited adaptability for non-standard gears.
Individual cutting results in longer processing times, particularly in large-scale production.
Continuous cutting makes hobbing machines significantly more efficient in large-scale production.
Suitable for small batch production, prototype manufacturing, and customized gear processing.
Ideal for complex shapes or special requirement gears, such as spiral bevel gears and worm wheels.
Primarily used for large-scale production of standard gears, especially those with smaller modules.
Widely used in automotive and mechanical industries for processing standard gears.
Higher unit cost in small batch production but offers better cost-effectiveness for customized needs.
Lower initial investment, especially advantageous for large-scale production, reducing unit costs.
Requires skilled operators and programming knowledge. CNC programming allows for higher levels of automation, reducing manual intervention.
Relatively simple operation, especially when using standardized hobs for large-scale production.
The gear skiving machine, through its precise control systems and versatile cutting tools, can efficiently and accurately process various types of gears. For internal gear processing, methods like shaping, skiving, and milling each have their advantages, with the choice depending on specific production needs, batch size, and required precision and surface quality. Advances in CNC technology have made gear skiving machines even more flexible and efficient, meeting diverse manufacturing demands.
