What is cnc gear hobber automatic?

Gear Hobber Automation

With the promotion of Industry 4.0, the automation and intelligence of gear hobbers have become a significant trend. Gear hobber automation refers to integrating advanced control systems, sensor technology, software algorithms, and other auxiliary equipment to enable the automatic completion of a series of processes from workpiece loading, processing parameter setting, cutting operations to final product unloading.

The rise of robotics has led to a surge in demand for compact, high-precision gears.

Optional Equipment for Gear Hobbers

- Automatic Loading/Unloading System: Robots or robotic arms are used for automatically picking up and placing parts to be processed and finished parts.

- Conveyor or Pallet Systems: Ensures smooth movement of parts between different processing stations.

Intelligent Control Systems for Gear Hobbers

- CNC (Computer Numerical Control) Systems: Provide precise motion control, allowing for programmed setting of complex machining paths and adjustments to speed, feed rate, and other parameters as needed.

- HMI (Human-Machine Interface): Simplifies interaction between operators and machines, enabling status monitoring, fault diagnosis, and parameter settings.

Real-Time Monitoring and Feedback

- In-Line Measurement Systems: Inspect dimensional accuracy after machining workpieces, ensuring consistent product quality.

- Tool Condition Monitoring: Automatically adjusts machining parameters based on big data, such as tool wear compensation, maintaining constant machining quality and alerting to tool wear conditions.

Networking and Collaboration

- Cloud Services: Data storage and analysis through cloud platforms provide users with value-added services like performance evaluation and energy management.

The Future of Gear Machining

CNC-controlled gear hobbers are transforming the industry. These machines offer higher precision, faster production cycles, and can create complex gear profiles with minimal human intervention.

Customer Case Study

Belgian Client: G400 Gear Hobber Automation Retrofit

Company Profile

A precision gear manufacturer specializing in providing customized gear solutions for the automotive industry decided to upgrade its newly acquired G400 gear hobber due to increasing market demands for diversified products and advancing technology.

Challenges Faced

- Special Workpiece Handling: The client required machining gears with special shapes or larger dimensions, necessitating greater workspace flexibility from the machine.

- Efficiency Improvement: To meet growing order volumes, it was essential to increase daily output per machine.

- Precision and Quality Maintenance: Despite increased capacity, each gear had to meet extremely high precision standards.

- Reduced Manual Intervention: Less reliance on skilled operators and reduction of uncertainties caused by human factors.

Solution Design

A comprehensive automation retrofit plan was developed for the G400 gear hobber:

1. gear hobber Structural Modifications

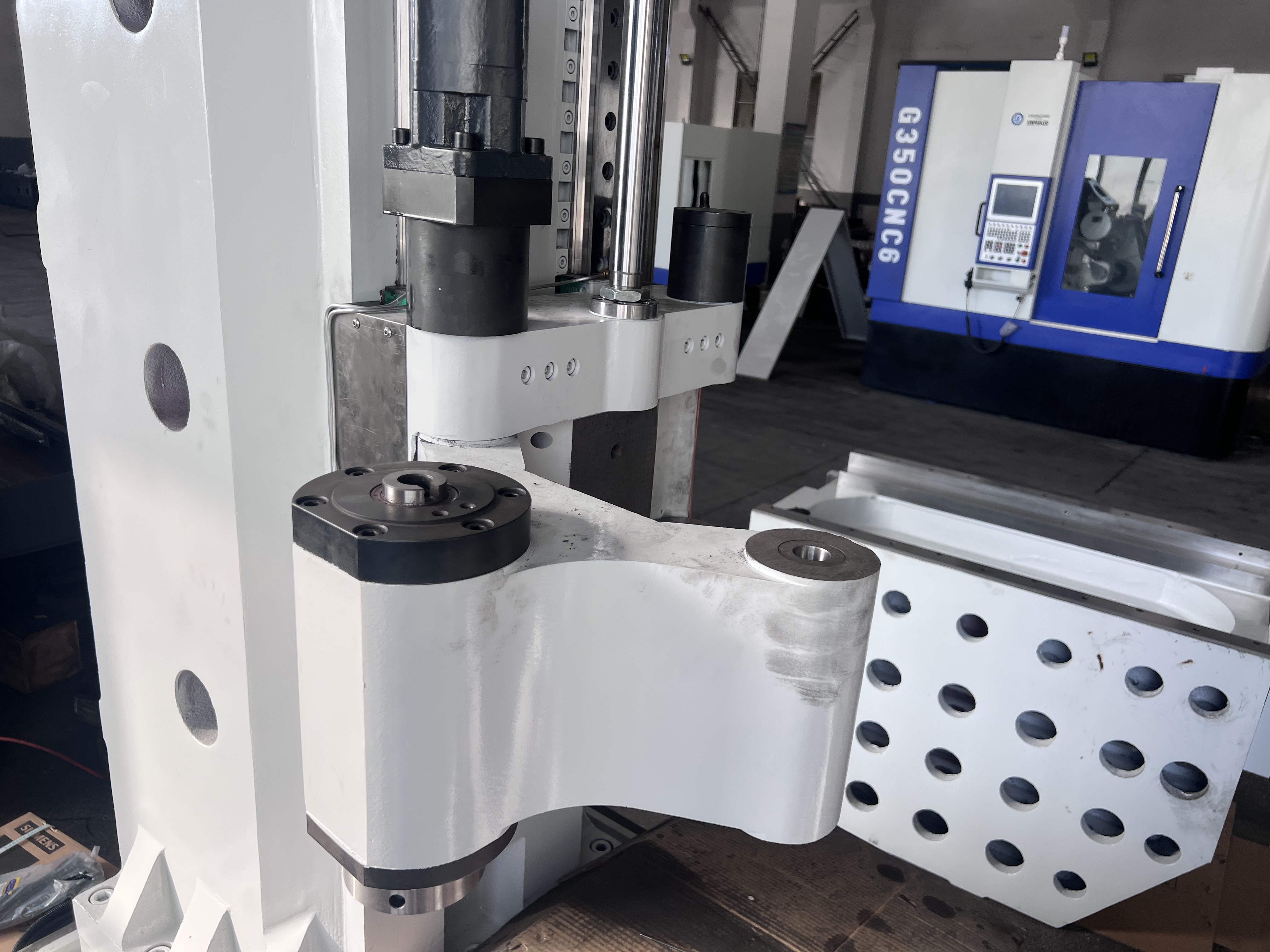

  - Increased column height to accommodate larger workpieces while preserving Z-axis travel, ensuring that the machine could handle longer or higher diameter pieces without affecting its original machining range.

2. gear hobber Functional Enhancements

  - Added a rotatable tailstock feature, allowing workpieces to rotate freely along their axis during machining. This is particularly important for non-cylindrical gears, such as spiral bevel gears, enabling multi-angle, all-around accurate cutting.

3. gear hobber Robot Integration

  - Installed an advanced six-axis industrial robot arm specifically for automated loading/unloading of the gear hobber. This robot not only performs all material handling tasks without supervision but also accurately locates and clamps various types of workpieces using vision recognition systems.

4. Software Optimization

  - Established a remote maintenance support system based on a cloud platform, allowing technicians to monitor equipment status in real-time via the internet and promptly respond to any potential issues.

Results

After several months of effort, the G400 gear hobber automation project was successfully completed, bringing about remarkable outcomes:

- Production efficiency significantly improved, with new system daily output increasing by approximately 50%, greatly shortening delivery times.

Stabilized Product Quality: Benefiting from highly precise process control during machining, the product pass rate has reached over 99%, virtually eliminating the possibility of defective products.

Reduced gear hobber Operating Costs: The demand for skilled technicians has been reduced, along with maintenance costs and other indirect expenses.

Enhanced Market Competitiveness: Leveraging superior technical capabilities and production capacity, the company has established a solid reputation within the industry, earning the trust and support of more high-end customers.

This successful gear hobber automation retrofit not only addressed the client's practical challenges but also positioned them favorably in the competitive market.
