What is a broach cutter used for?

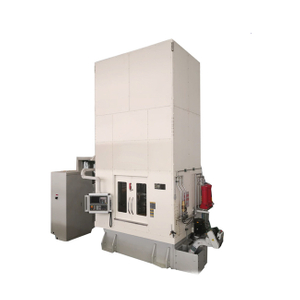

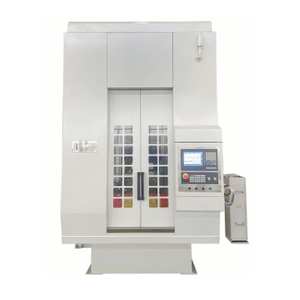

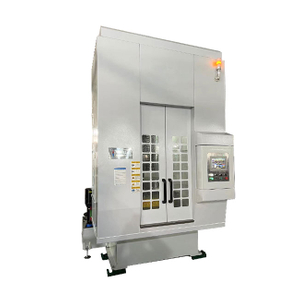

A broach cutter, commonly referred to as a broach, is a precision cutting tool extensively used in metalworking and manufacturing. It is designed for a specialized machining process known as broaching, which involves removing material from a workpiece to create precise shapes, profiles, or internal features. Broaching is highly efficient, capable of achieving high precision and excellent surface finish in a single pass, making it ideal for high-volume production.

Applications of a Broach Cutter

1. Hole Machining

Broach cutters are widely used for creating high-precision holes with specific diameters, shapes, and internal features. Common applications include:

• Circular Holes: Broaching is used to enlarge pre-drilled or cast holes to a precise diameter with a smooth surface finish.

• Spline Holes: Many mechanical components, such as gear shafts, require spline holes for torque transmission. Broach cutters with specially designed tooth profiles create evenly spaced grooves, forming the spline pattern accurately.

• Keyways: Keyway broaching is essential for producing slots in shafts and hubs, allowing keys to be inserted for secure torque transmission between rotating components.

• Hexagonal & Other Shaped Holes: Broach cutters can create non-circular holes, such as hexagonal, square, or star-shaped openings, commonly found in fasteners, sockets, and mechanical assemblies.

2. Surface Machining

Broaching is also used to machine flat surfaces and complex contours with high precision. Examples include:

• Flat Surfaces: Components such as engine blocks, valve bodies, and bearing housings require precision-machined flat faces to ensure proper assembly and sealing. Broaching provides a smooth, accurate surface finish.

• Internal and External Contours: Broach cutters can be custom-designed to produce intricate profiles, such as turbine blade slots, firearm components, and automotive parts with unique geometric features.

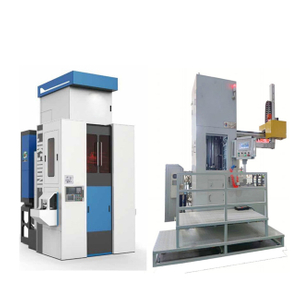

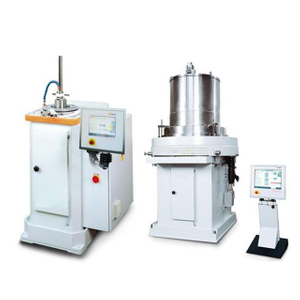

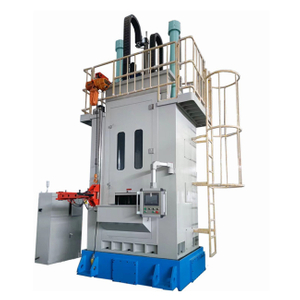

3. High-Volume Production

Broach cutters are particularly well-suited for mass production due to their ability to produce high-precision parts in a single pass. This efficiency makes broaching a preferred method in industries such as:

• Automotive Manufacturing: Used in the production of engine cylinders, transmission components, differential gears, and axle components.

• Aerospace Industry: Critical for machining high-strength materials used in aircraft structural components, landing gear, and turbine engine parts.

• Heavy Machinery & Industrial Equipment: Broaching is commonly applied in hydraulic components, machine tool spindles, and power transmission systems.

Benefits of Broach Cutters

• High Precision: Produces accurate and repeatable results.

• Fast Machining Process: Removes material in a single pass, increasing production efficiency.

• Superior Surface Finish: Reduces the need for additional finishing processes like grinding.

• Versatility: Can create a wide range of internal and external profiles.

Conclusion

A broach cutter is an essential tool in modern manufacturing, enabling high-precision machining of holes, surfaces, and complex geometries. Its efficiency and accuracy make it indispensable in industries requiring mass production of precise components. Whether used for creating spline holes, keyways, or contoured surfaces, broaching remains a crucial machining method for achieving optimal performance and durability in mechanical parts.
