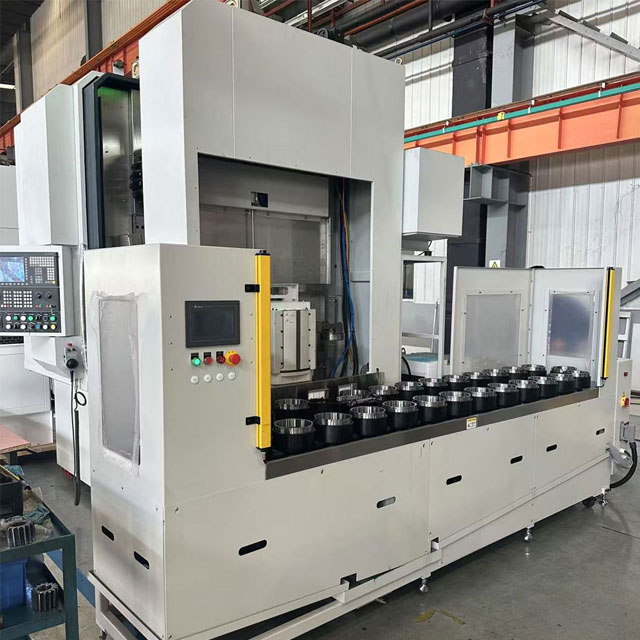

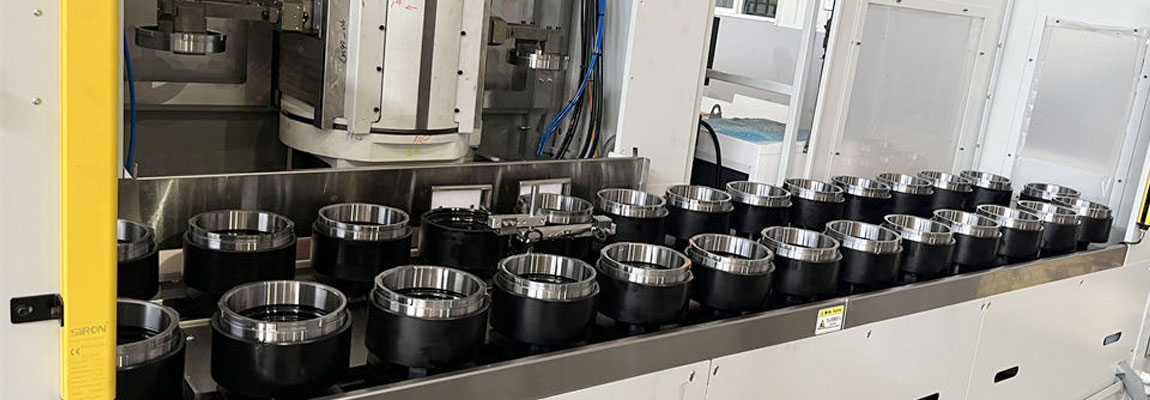

CNC Power Gear Skiving Machine with Automatic Lines

Power Gear Skiving Machine

6- axis

three CNC linear axes

we provide trial cutting for customer size available

Siemens 828D system

Processing internal and external straight gear, helical gear;

Versatile processing capability:

This machine tool can not only efficiently process internal and external spur and helical gears, but also has processing software specifically for micro-bevel gears, drum gears and K-type gears, which greatly expands its application range.

Advanced software support:

The built-in internal and external gear processing software makes operation easier, and supports multiple process switching, including internal gears, external gears and helical gears. In addition, through software control, drum, cone and additional asymmetric gear processing can be achieved, further enhancing its adaptability and production efficiency.

High rigidity and stability:

The machine tool design focuses on the stability of rigidity and precision, and maintains consistent high-quality output during long-term operation. Its efficient structural design also ensures excellent performance at high speeds.

Fully digital control system:

It adopts Siemens 828D system for full digital control and is equipped with EGB electronic gearbox, which replaces the function of traditional machine tools to exchange various gears, and improves the automation level and processing accuracy. This configuration not only simplifies the operation process, but also reduces maintenance costs.

Hard gear surface scraping:

This machine tool is suitable for hard gear surface scraping, which can replace gear grinding to a certain extent, especially for internal gear grinding, providing a cost-effective solution.
