Have you ever wondered how gears are made with such precision? Gears are fundamental components in many industries, from automotive to aerospace, and their quality is vital for the performance of machines. Whether it's a gear used in a car transmission or a turbine in an aircraft engine, the manufacturing process behind them is complex and demands precision. One of the most reliable methods for producing gears is through gear hobbing machines.
In this article, we will take you through the process of how gear hobbing machines work. From the basic principles of gear hobbing to the types of machines available and their industrial applications, we’ll provide a comprehensive step-by-step guide. By the end, you will have a clear understanding of the crucial role these machines play in producing high-quality gears and how they help industries maintain efficiency and precision.
A gear hobbing machine is a type of machine tool used to produce gears with teeth that fit precisely into other gears. It uses a specialized tool called a "hob" to cut the teeth of the gear in a continuous process. This method is widely used in the manufacturing of gears, from simple spur gears to more complex helical gears.
The key feature of gear hobbing machines is their ability to create teeth with high accuracy and efficiency. The hob cuts into the rotating workpiece (the gear blank) to shape the teeth, and the process is repeated as the workpiece rotates, producing a perfect gear profile.
Gear hobbing is a preferred method of gear cutting due to its ability to produce high-precision gears in large quantities. It is faster and more cost-effective compared to other gear-cutting processes, such as shaping or broaching. Additionally, gear hobbing machines can handle a variety of gear types and sizes, making them versatile tools in gear production.
Whether it's for mass production or custom gear manufacturing, gear hobbing machines offer a reliable and efficient solution for creating gears that meet high industry standards.
The first step in the gear hobbing process is the preparation of the gear blank. The gear blank is typically a cylindrical piece of metal that will eventually become the gear. This blank is mounted securely on a spindle in the gear hobbing machine. The machine’s spindle rotates the gear blank while a cutting tool, the hob, is brought into contact with the blank.
The gear hobbing machine uses a combination of rotational and linear movement to cut the teeth into the blank. The key advantage of this process is the continuous motion of the hob, which ensures that the teeth are cut in a consistent, precise manner.
The hob is the cutting tool used in the gear hobbing machine. It has a series of cutting edges that form the teeth of the gear. The hob is mounted on a separate spindle from the gear blank and rotates at a high speed. As the hob rotates, it progressively cuts into the gear blank to create the teeth profile.
The hob’s design is crucial for the success of the gear hobbing process. It is specially shaped to match the tooth profile of the gear being produced. In addition, the hob must be made of hard, durable materials, such as high-speed steel or carbide, to withstand the stresses of cutting through metal.
As the gear blank rotates, the hob begins cutting the teeth into the blank. The gear blank’s rotation is synchronized with the hob’s movement, ensuring that the hob’s cutting edges make continuous contact with the blank. The cutting edges remove small amounts of material with each rotation, gradually forming the tooth profile.
This continuous cutting action results in a gear with smooth, uniform teeth. The speed and precision of the process allow gear hobbing machines to produce large numbers of gears in a short amount of time, making it an efficient choice for high-volume manufacturing.
One of the advantages of gear hobbing machines is their ability to produce different types of gears, such as spur, helical, or worm gears. The key to this versatility lies in adjusting certain parameters in the machine. For example, the angle of the hob can be adjusted to produce helical gears, which have angled teeth, while the speed and feed rate can be altered to produce gears with different sizes and tooth profiles.
Gear hobbing machines can also handle various materials, including steel, aluminum, and brass, ensuring that the process is adaptable to different gear requirements. The ability to fine-tune the machine settings allows manufacturers to produce a wide range of gears with varying specifications.
After the gear teeth have been cut, the gear hobbing machine may perform additional processes to finish the gear. This can include grinding or polishing to ensure that the gear teeth are smooth and free of defects. Once the gear is fully machined, it undergoes a thorough inspection to ensure that it meets the required specifications for size, tooth profile, and surface finish.
Modern gear hobbing machines often include in-process inspection features, allowing manufacturers to monitor the gear’s quality throughout the cutting process. This helps identify any issues early on, preventing defects and ensuring that only high-quality gears are produced.

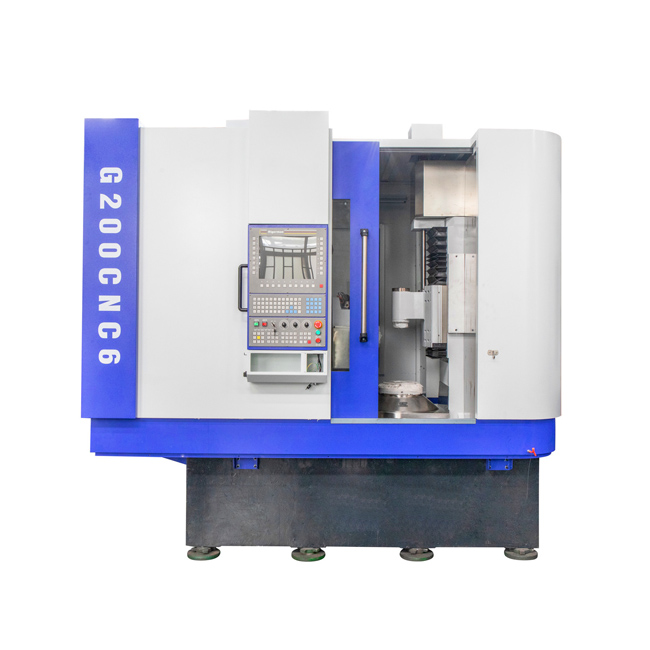

CNC (Computer Numerical Control) gear hobbing machines are the most advanced type available today. These machines are controlled by computer programs, allowing for precise, automated gear production. CNC machines offer flexibility and can handle complex gear shapes and sizes without requiring manual adjustments.
CNC gear hobbing machines are ideal for mass production as they provide high efficiency and repeatability. They can produce large quantities of gears with minimal human intervention, reducing errors and increasing productivity.
Universal gear hobbing machines are versatile tools that can produce a wide variety of gears, from simple spur gears to more complex helical and bevel gears. These machines are often used in shops where different types of gears need to be produced, providing flexibility and adaptability.
Universal gear hobbing machines can handle a wide range of gear sizes and tooth profiles, making them suitable for both small-scale and large-scale manufacturing.
While manual gear hobbing machines are less common in modern industrial settings, they are still used in some smaller-scale operations. These machines require more operator input to set up and control but are still capable of producing high-quality gears for low-volume production or prototype work.
Manual gear hobbing machines are often more affordable than their CNC counterparts and can be useful for specialized or custom gear production.
The automotive industry relies heavily on gear hobbing machines for the production of gears used in engines, transmissions, and drivetrains. These gears must be made to high standards of precision and durability to ensure the reliable performance of vehicles.
Gear hobbing machines are used to produce a wide range of automotive gears, from small components like gear shafts to larger gears used in transmissions and differential systems. The precision of gear hobbing ensures that these components mesh perfectly, allowing for smooth operation in vehicles.
Aerospace applications require gears that can withstand extreme conditions, such as high temperatures and stresses. Gear hobbing machines are used in the production of gears for aircraft engines, landing gear systems, and other critical components. These gears must meet strict industry standards for performance and reliability.
The ability of gear hobbing machines to produce high-quality gears with tight tolerances makes them ideal for the aerospace industry, where precision and durability are paramount.
Heavy machinery used in industries like mining, manufacturing, and construction requires durable gears that can handle heavy loads and high stresses. Gear hobbing machines play a vital role in producing these industrial gears, ensuring that they can operate efficiently under harsh conditions.
The high precision and strength of gears produced by gear hobbing machines are crucial for maintaining the performance and safety of industrial machinery.
Gear hobbing machines are essential tools in the manufacturing of high-quality gears, offering precision, efficiency, and versatility. From automotive and aerospace to industrial machinery, these machines are used across various industries to produce gears that meet the highest standards of performance and reliability.
At GEEPRO, we specialize in providing state-of-the-art gear hobbing machines designed to meet the needs of modern manufacturing. Whether you’re looking to produce simple gears or complex, high-precision components, our machines offer the quality and durability required for your production needs.
A: A gear hobbing machine is used to cut gears with precise teeth profiles by using a rotating cutting tool called a hob. It is widely used in industries like automotive, aerospace, and machinery manufacturing.
A: The gear hobbing machine rotates a gear blank while a cutting tool called a hob progressively cuts the teeth into the blank, creating the desired gear profile. This process allows for fast and precise gear production.
A: Gear hobbing machines can produce a variety of gears, including spur gears, helical gears, bevel gears, and worm gears. The machine can be adjusted to accommodate different gear sizes and tooth profiles.
