In modern manufacturing, as product structures become increasingly complex, material types diversify, and demands for machining accuracy and efficiency continue to rise, traditional 3-axis CNC machines can no longer meet the requirements of high-precision, multi-angle, and multi-process composite machining. In this context, the vertical 5-axis machining center has emerged and quickly become an essential equipment in the field of high-end manufacturing.

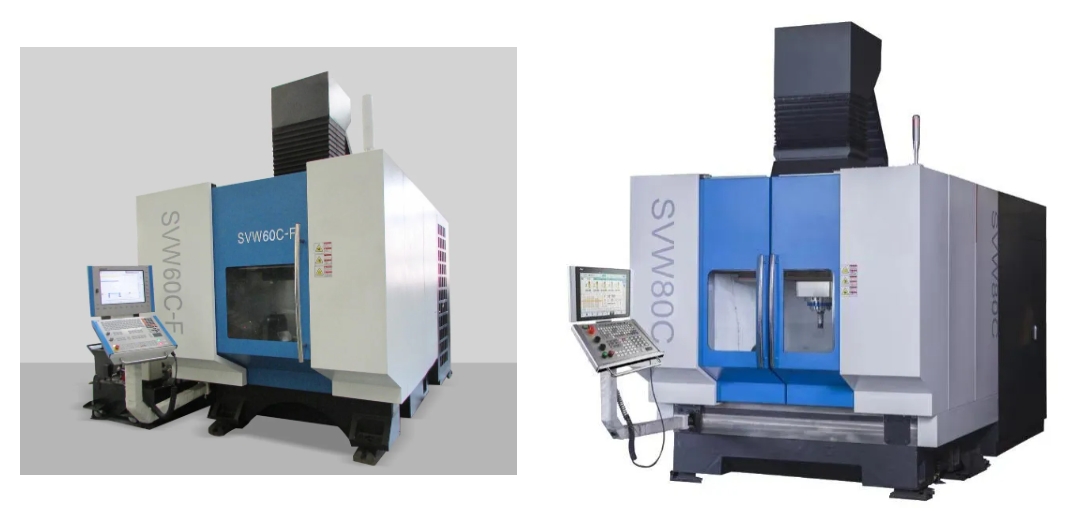

A vertical 5-axis machining center is an advanced CNC machine tool that integrates milling, boring, drilling, reaming, countersinking, and rigid tapping into a single unit. It not only possesses all the machining capabilities of traditional 3-axis machines but also adds two additional rotary axes (A-axis and C-axis), enabling continuous and complex surface machining on multiple sides of a workpiece in a single setup. This significantly improves machining efficiency and part forming quality.
The vertical 5-axis machining center typically consists of a base, column, crossbeam, ram box, ram, pneumatic system, automatic lubrication system, hydraulic system, cooling and chip removal system, electrical control system, inspection system, and fully enclosed protective system.
- X-axis: Left-right movement of the ram box;
- Y-axis: Front-back movement of the crossbeam;
- Z-axis: Up-down movement of the ram.
- A-axis: Swivel of the trunnion table (rotation around the X-axis);
- C-axis: Rotation of the worktable around the Z-axis.
This structural design allows the cutting tool to approach the work piece from any angle, enabling continuous cutting of complex spatial surfaces. Each axis can be automatically controlled by the control unit, allowing for synchronized 5-axis Linkage machining to achieve high-precision spatial trajectory control, meeting the machining needs of complex parts.
---
The vertical 5-axis machining center adopts an integral cast bed and reinforced structural design, providing excellent static and dynamic rigidity. The high-strength mechanical structure ensures stable machining accuracy under high-speed cutting and heavy load conditions, making it suitable for efficient machining of various materials such as carbon steel, alloy steel, die steel, cast iron, cast steel, and non-ferrous metals.
These machines are generally equipped with high-precision servo motors and ball screw transmission systems, combined with linear or hydrostatic guideways. They enable smooth low-speed operation and precise high-speed positioning. Whether during roughing at low speeds or finishing at high speeds, they ensure stable cutting without stick-slip, crawling, or vibration, significantly improving surface finish and dimensional consistency of machined parts.

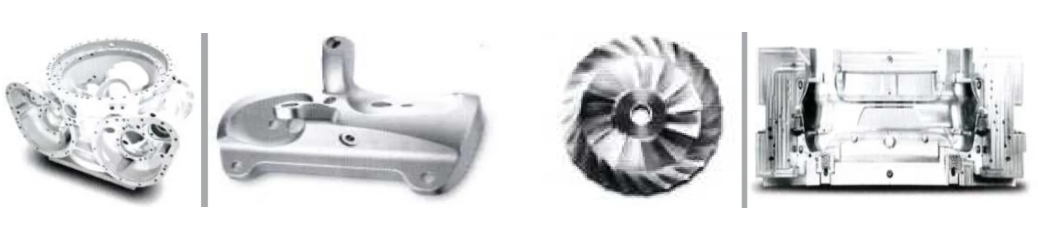

5-axis simultaneous machining refers to the coordinated motion of five axes (three linear + two rotational) during processing, forming complex spatial trajectories. This feature enables the machining of complex surfaces, inclined planes, and irregular contours that traditional 3-axis machines cannot handle. It plays an irreplaceable role in the machining of components such as aircraft engine blades, impellers, and mold cavities.
Standard configurations typically include high-performance CNC systems such as the German HEIDENHAIN system, supporting multiple programming languages and graphic simulation functions. Additionally, these machines can be equipped with automatic tool changers (ATC), tool measurement devices, workpiece measurement systems, and online error compensation modules. These features enable unattended machining, real-time monitoring, and quality feedback, significantly enhancing production efficiency and automation levels.
---
Parts in the aerospace industry often have complex geometries, high strength, and lightweight characteristics. For example, critical components such as aircraft engine blades, turbine disks, and landing gear require 5-axis machining to achieve high-precision, high-surface-quality complex curved surfaces. The vertical 5-axis machining center, with its high rigidity, precision, and stability, is the ideal choice for machining such parts.
The mold industry places extremely high demands on machining accuracy, surface roughness, and fitting clearance. 5-axis technology enables one-setup machining of deep cavity molds, complex cores, and side undercut structures, avoiding cumulative errors caused by multiple setups and significantly improving both machining efficiency and quality.
In the manufacture of key components for new energy vehicle power systems, battery trays, and motor housings, 5-axis machining centers are used for high-precision machining of complex hole systems, heat dissipation structures, and lightweight designs, meeting the development trend of lightweight and high-performance vehicles.
Universities, research institutions, and high-end equipment manufacturers widely use 5-axis machining centers for new process development, material testing, and prototype production, promoting the advancement of China's high-end manufacturing technology.
With the deepening of intelligent manufacturing and Industry 4.0, vertical 5-axis machining centers are evolving in the following directions:
Future 5-axis machines will integrate more intelligent perception, data acquisition, remote monitoring, and adaptive machining technologies. By connecting with MES and ERP systems, full-cycle data management of the production process can be achieved, improving equipment utilization and manufacturing flexibility.
Driven by energy-saving and environmental protection policies, machine tool manufacturers are continuously optimizing cooling systems, chip removal systems, and energy consumption management modules to reduce energy waste and environmental pollution during machining, building a green manufacturing system.
5-axis machining centers will further integrate turning, grinding, laser cutting, and additive manufacturing processes, moving toward the direction of "one-machine completes all processes" composite machining, shortening process flows and improving overall efficiency.
CAM software will become even more powerful, supporting complex path planning, collision detection, simulation verification, parameter optimization, and other functions. This will lower operational barriers, improve programming efficiency, and realize truly “one-click machining.”
---
As a core piece of equipment in modern manufacturing, the vertical 5-axis machining center demonstrates strong vitality across industries such as aerospace, automotive manufacturing, medical devices, and mold manufacturing due to its excellent machining performance, broad applicability, and high degree of automation. With the continuous development of intelligent manufacturing technology, 5-axis machining centers will play an even more important role in the future, driving China’s manufacturing industry toward high-quality, high-efficiency, and intelligent development.
For manufacturing enterprises, selecting the right model, using the equipment scientifically, and fully leveraging the advantages of 5-axis machining centers are key to enhancing product competitiveness and achieving industrial upgrading. Looking ahead, we have every reason to believe that 5-axis machining centers will continue to lead the trend of high-end manufacturing, injecting strong momentum into China's intelligent manufacturing.
