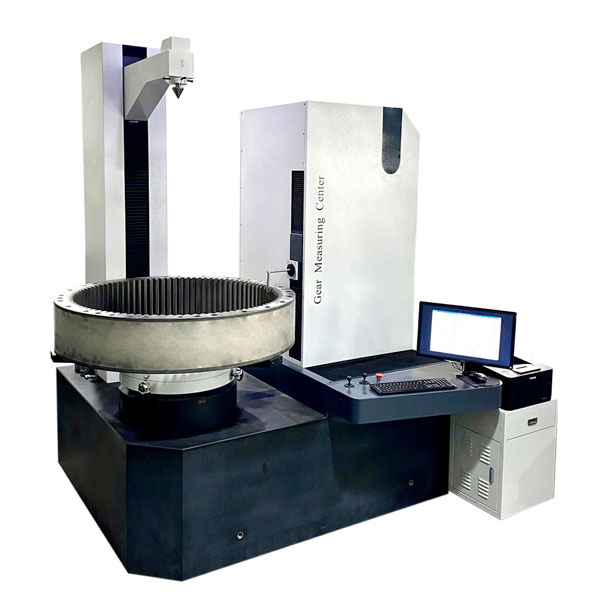

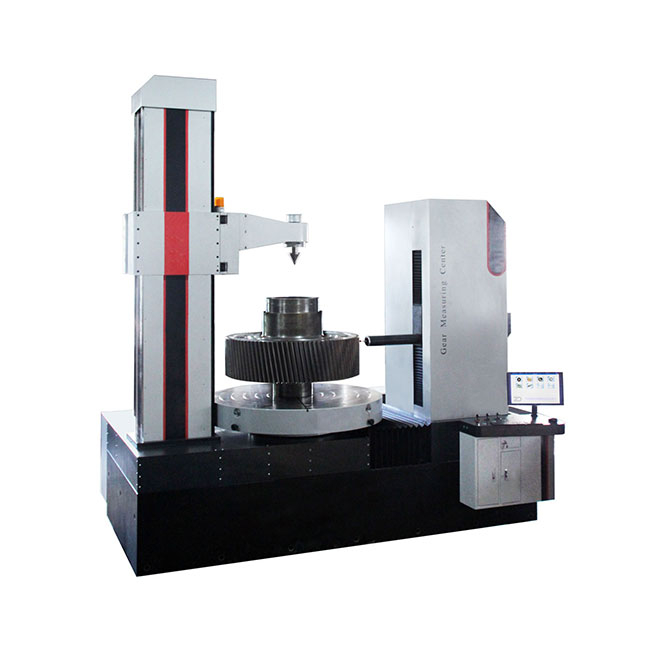

Precision Gear Inspection Measuring Center Machine

gear measring center machine

gear checking machine

gear  inspection machine

gear measurement serive

Whether it's a minor deviation or a complex measurement requirement, it can respond with precision, ensuring that every gear meets strict standards. We also provide professional technical support and consulting services to help you resolve any issues encountered during use.

Key Features

• High-Precision Measurement: The machine is equipped with high-resolution probes and precision-measuring capabilities, ensuring highly accurate inspection of gear features such as tooth thickness, pitch, profile, and run-out.

• Versatile Gear Inspection: This machine can measure a variety of gears, from small to large sizes, offering excellent flexibility for different types of gear manufacturing processes.

• CNC Control System: The machine is equipped with advanced CNC control, ensuring ease of operation and precise, repeatable measurements.

• Automatic Data Collection: The system automatically collects data during the inspection process, making it easy to analyze and record results for quality control purposes.

• User-Friendly Interface: The intuitive interface and automated processes help reduce operator errors and improve workflow efficiency in inspection tasks.

• Integrated Calibration System: The machine features an integrated calibration system to ensure that measurements remain accurate over time, reducing the need for frequent manual calibration.

With its robust and efficient design, the Precision Gear Inspection Measuring Center Machine is an essential tool for manufacturers aiming to achieve the highest standards of gear quality and performance.

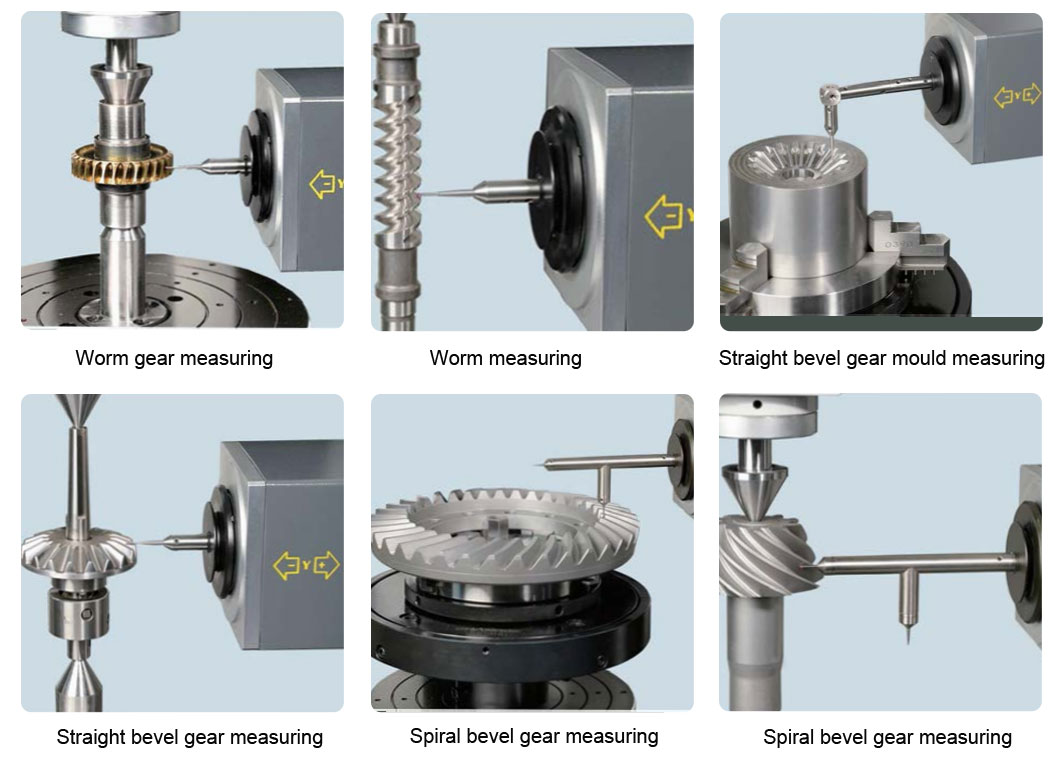

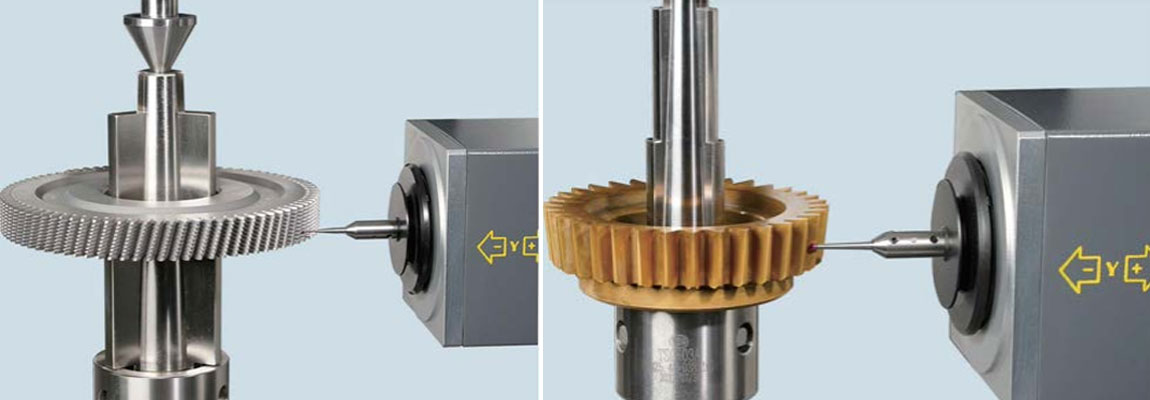

Inspection of gear tools, including gear sets, hobs, inserts, worm wheels, worm gears, tool bars, RV gearbox key components, profile scanning, etc.

Provide surface roughness measurements to evaluate the most common roughness parameters that meet the definitions of DIN, ISO, ANSI, etc.

After-sales online video support.

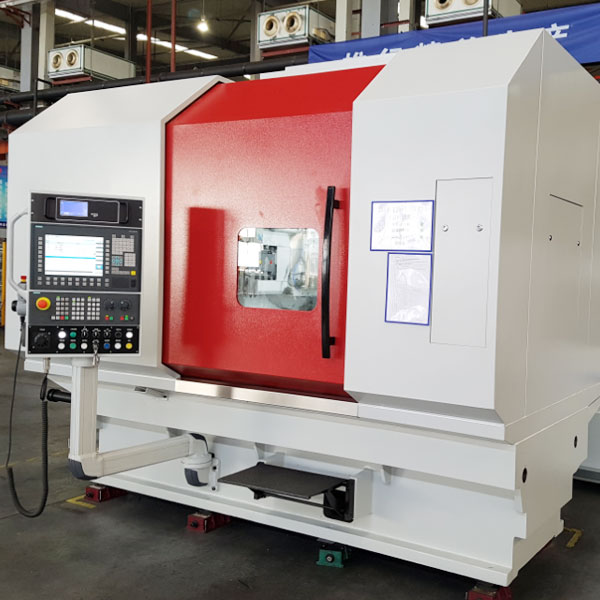

gear shaping machine

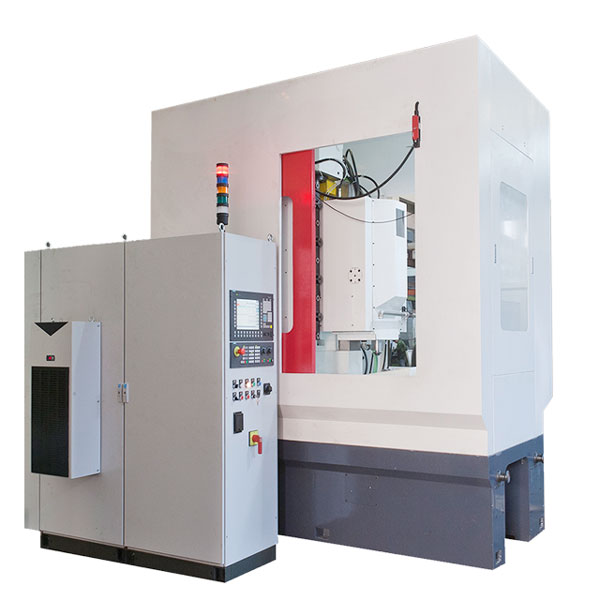

gear grinding machine

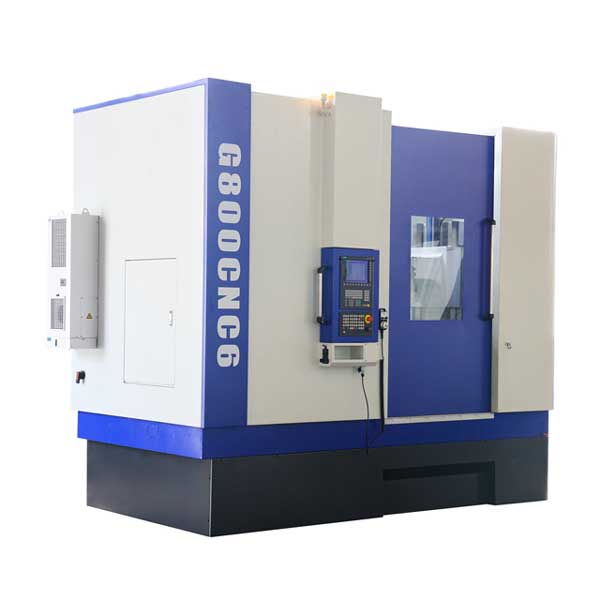

gear hobbing machine

You can click on the image above for details.

Product Quality Control

At Wuxi Geepro Gear Technology Co., Ltd., product quality is a top priority. The company implements a rigorous quality control process to ensure that each Precision Gear Inspection Measuring Center Machine meets the highest industry standards. Key stages of the quality control process include:

1. Material Inspection: All materials used in manufacturing are carefully inspected for quality and durability before they are processed and assembled.

2. Component Testing: The individual components, including the CNC system, probes, and measuring sensors, are thoroughly tested to ensure reliable operation.

3. Assembly and Calibration: After assembly, the machine undergoes precise calibration to ensure accurate measurements.

4. Operational Testing: The machine is tested under real-world conditions to confirm that all functions are operational and meet performance specifications.

5. Final Inspection: Each machine undergoes a final inspection to ensure it meets all quality standards before being shipped.

With these strict quality control measures, customers can trust that the Precision Gear Inspection Measuring Center Machine will perform at the highest level of accuracy and reliability.

Product Operate Guide

Operating the Precision Gear Inspection Measuring Center Machine is straightforward, thanks to its intuitive user interface and automated features. Here is a basic guide on how to operate the machine:

1. System Setup: Connect the machine to the power supply and ensure all necessary software is installed. The machine’s CNC control system will initialize automatically.

2. Load the Workpiece: Carefully place the gear to be measured on the machine’s work table. The workpiece should be securely mounted to avoid any displacement during measurement.

3. Select Measurement Program: Choose the appropriate measurement program from the control interface. The software allows for easy selection of measurement parameters based on the type of gear being inspected.

4. Initiate Measurement: Once the program is selected, the machine will automatically begin the measurement process, using its 3D probing system to scan the gear and collect data.

5. Review Results: After the measurement is complete, the system will generate a report with detailed results on gear accuracy. The report can be saved or printed for further analysis.

6. Calibration and Maintenance: Periodically calibrate the machine to ensure continued measurement accuracy. The integrated calibration system will guide the process.

This simple, step-by-step operation allows users to quickly and efficiently perform gear inspections with minimal training or expertise.

Service and Support

Wuxi Geepro Gear Technology Co., Ltd. offers exceptional service and support to ensure that customers get the most out of their Precision Gear Inspection Measuring Center Machine. The company provides:

• Installation and Training: Expert technicians are available to install the machine at the customer’s site and provide comprehensive training on its operation.

• Remote Support: For ongoing support, Wuxi Geepro offers remote troubleshooting and software updates to keep the machine running smoothly.

• Maintenance Services: The company provides routine maintenance services, including calibration, software updates, and component checks to ensure the machine operates at peak efficiency.

• Warranty: The machine comes with a warranty covering parts and labor, offering peace of mind for customers.

By choosing Wuxi Geepro Gear Technology, customers gain access to reliable support throughout the life of their machine.

Why Choose Us?

There are several reasons why Wuxi Geepro Gear Technology Co., Ltd. stands out as the preferred supplier of gear measurement and machining solutions:

1. Innovative Technology: The company integrates cutting-edge CNC systems, automated data collection, and high-precision probing systems to provide advanced solutions for gear measurement.

2. Exceptional Quality: Every machine undergoes rigorous quality control and testing to ensure it meets the highest standards.

3. Comprehensive Support: From installation to maintenance, Wuxi Geepro offers continuous support to ensure optimal machine performance.

4. Tailored Solutions: The company offers customized solutions to meet the specific needs of each customer, ensuring that their gear measurement requirements are fully satisfied.

5. Industry Experience: With years of expertise in the gear machinery field, Wuxi Geepro has earned a reputation for reliability and excellence.
