Automated Gear Skiving Machine: Efficient and Precise Internal and External Gear Turning Solution
With the continuous advancement of manufacturing intelligence, gear processing equipment is rapidly evolving towards automation, digitalization, and precision. As a key device for machining internal and external gears of gear rings, the automation upgrade of the gear skiving machine plays a decisive role in improving production efficiency and ensuring machining quality.
An automated gear skiving machine is a specialized gear machining device that integrates CNC technology with automated loading and unloading systems, specifically designed for high-precision turning of internal and external gear rings. Through a loading magazine, automatic rotating clamping device, and multi-axis linkage tooling system, it realizes automatic grabbing, positioning, machining, and unloading of workpieces, greatly reducing manual intervention and improving production rhythm and machining stability.

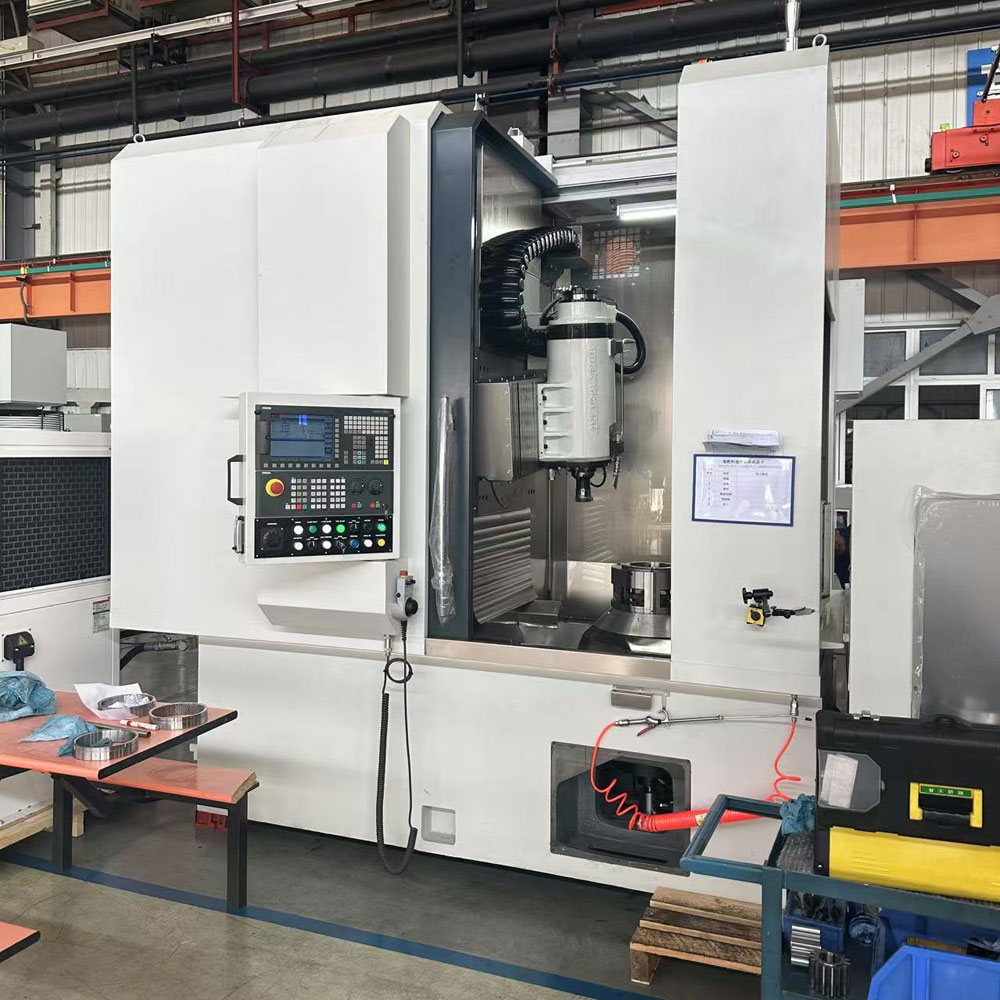

The core equipment consists of a CNC lathe, automatic loading devices (such as magazine and robotic arms), and automatic clamping and rotating mechanisms. Combined with advanced tool spindles and monitoring systems, it ensures high precision and repeatability during the skiving process.

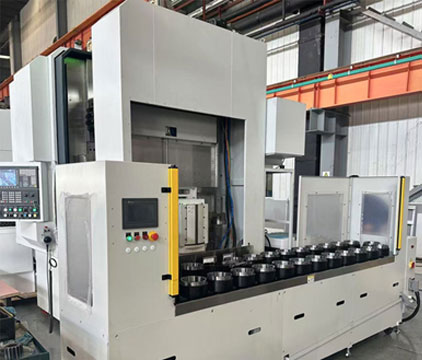

The automatic loading magazine combined with the automatic rotating grabbing mechanism enables continuous and rapid workpiece loading and clamping, greatly reducing manual handling time and achieving 24/7 uninterrupted production. Compared to traditional manual loading, production efficiency increases by several times.
The CNC system precisely controls the tool path, ensuring the internal and external gear turning dimensions and shapes are highly consistent, with micron-level error control, reducing rework and scrap rates.
The fully automated process reduces direct manual operations, lowering labor intensity and minimizing operational risks, especially suitable for complex gears and high-capacity scenarios.
The machine can adjust parameters according to the program, accommodating different sizes and materials of internal and external gear rings, meeting both mass production and small batch multi-variety production needs.
With a compact and rigid structure, equipped with automatic monitoring and alarm systems, it facilitates maintenance and fault diagnosis, ensuring long-term stable operation.
Automotive Industry: Machining internal and external gear rings in engines and transmissions to meet high-precision power transmission requirements.
Machinery Manufacturing: Batch machining of various industrial machinery transmission gears.
New Energy Equipment: Production of key components for wind power gearboxes and motor transmission systems.
Aerospace: Manufacturing of high-precision transmission gears.
Heavy Equipment: Machining of large gear rings used in engineering machinery and mining equipment.

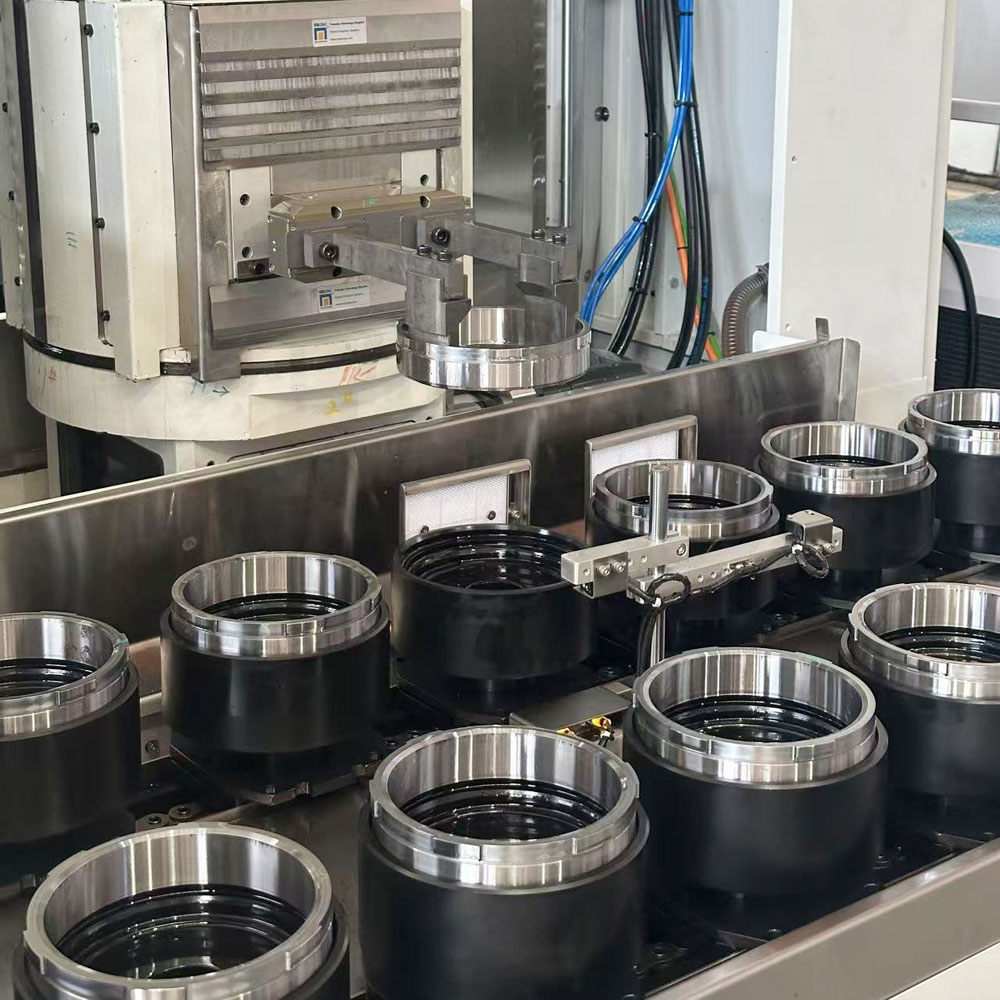

The automatic loading magazine stores the gear rings to be processed. Robotic arms or rotating grippers automatically grab the workpieces and accurately place them in the lathe fixtures. The grabbing mechanism usually supports multi-angle rotation and adjustment, ensuring accurate and fast positioning.

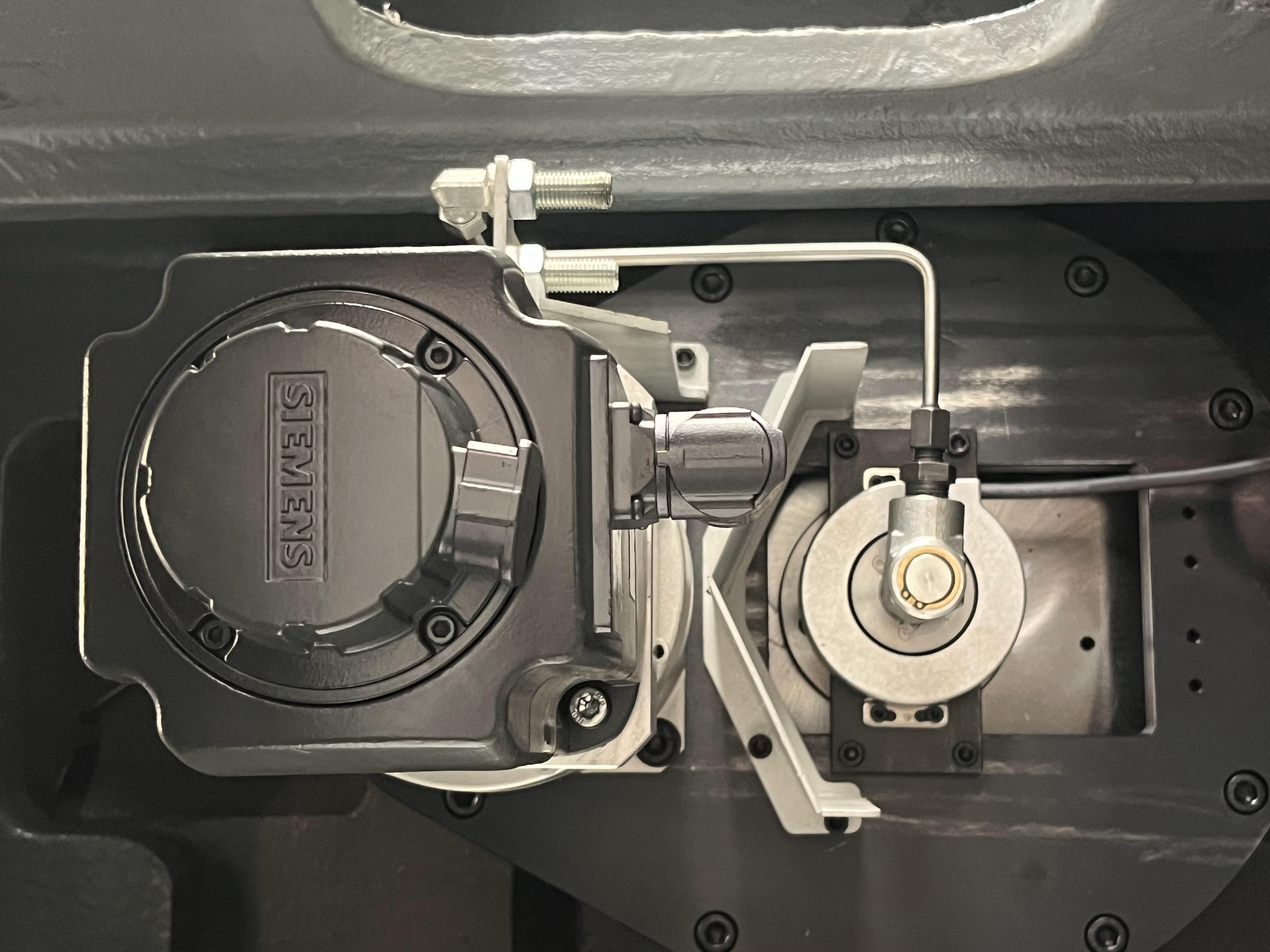

The CNC lathe is equipped with multi-axis linkage tooling spindles supporting synchronous or alternating internal and external gear turning. High-speed spindles and rigid tooling ensure cutting quality and machining efficiency.

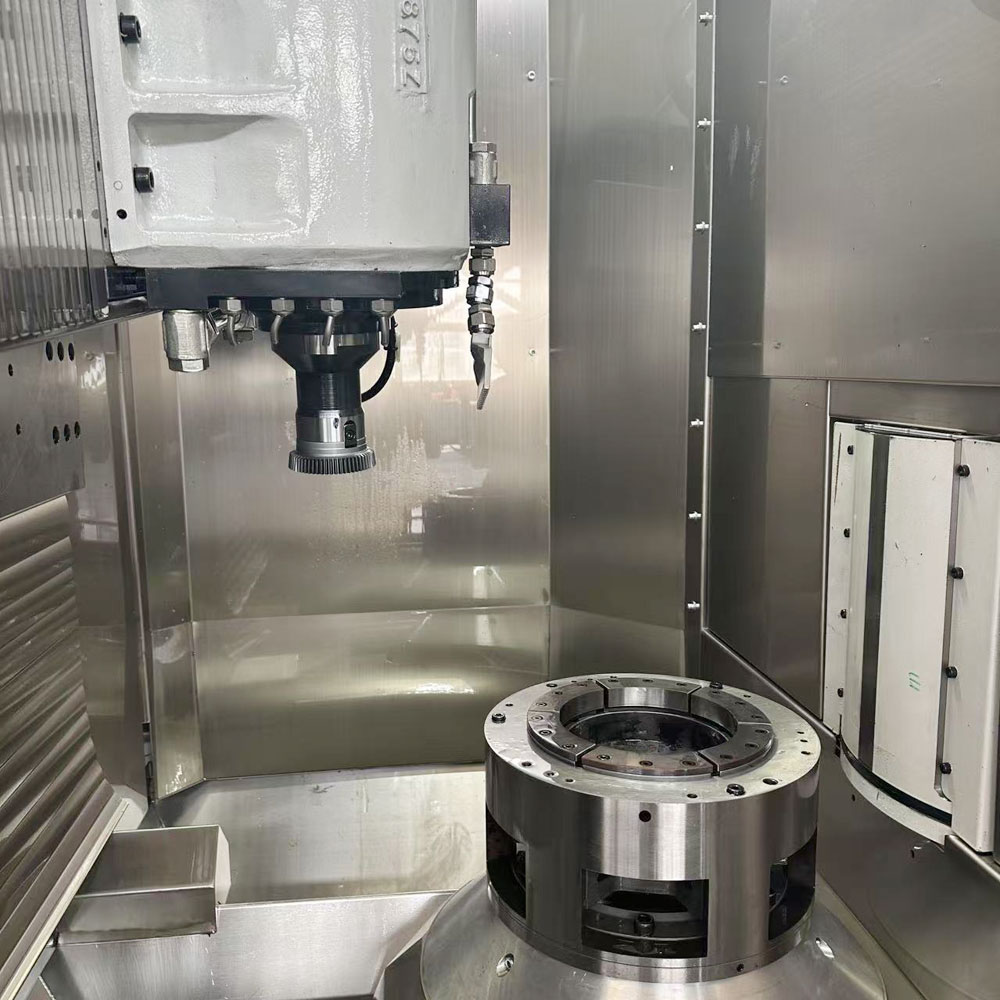

Including hydraulic or pneumatic clamps, ensuring stable clamping of the workpiece during machining to avoid vibrations affecting machining quality. It also supports quick clamping and releasing to shorten loading/unloading time.

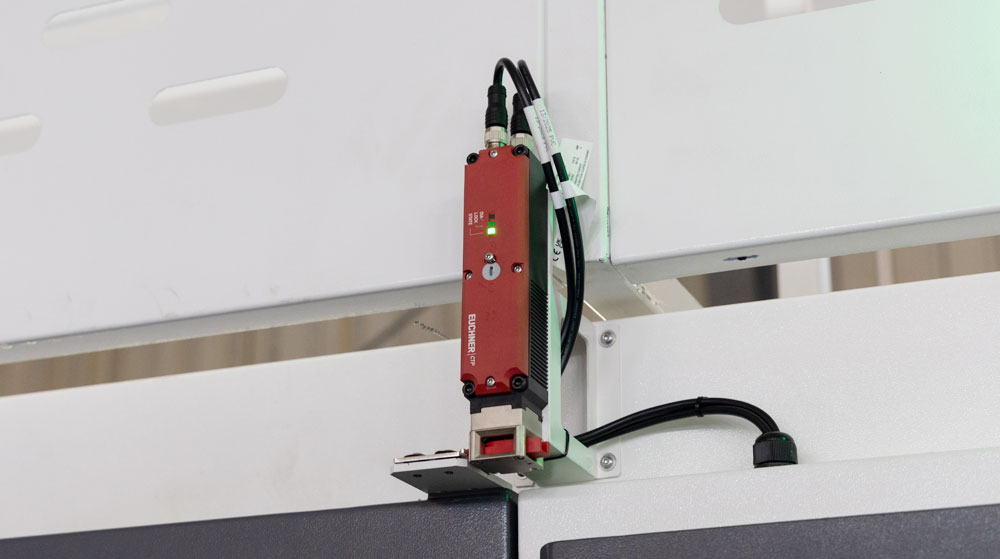

The safety door lock is an electromechanical locking device installed on the machine tool operation area door. When the machine is running, the safety door lock automatically locks to prevent operators from opening the door and entering the danger zone, ensuring personnel safety. The lock only releases after machining is complete or the equipment is stopped, allowing personnel access.
The safety door lock complies with industrial safety standards and is integrated with system alarms and emergency stop functions, improving the overall safety level of the gear skiving machine.
Equipped with sensors and vision detection devices to monitor workpiece status, clamping force, and tool wear in real-time, automatically adjusting parameters or issuing alarms to ensure machining quality and equipment safety.
Locking the door during processing prevents operators from entering, eliminating the risk of hand or body injuries.
Avoid machine stops or unexpected collisions caused by door openings, protecting the equipment.
Meets ISO and various national machinery safety standards, assisting enterprises in passing safety certifications.
Enforces operational procedures, improving workshop management and safety awareness.
Combining AI and big data for adaptive tool path optimization and fault prediction.
Supporting multi-specification switching to quickly respond to diversified market demands.
Optimizing energy consumption control to reduce environmental impact.
Achieving remote monitoring, equipment interconnection, and production data sharing.
With its high efficiency, precision, and safety, the automated gear skiving machine has become an indispensable advanced device in modern gear processing. By integrating automated loading/unloading, intelligent control, and safety door lock technologies, it not only significantly improves production efficiency but also ensures operational safety and product quality. It is a key equipment for manufacturing enterprises moving towards intelligent manufacturing.
Choosing a high-performance automated gear skiving machine is an important step for enterprises to enhance core competitiveness and meet fast market response demands.
