How Does A Gear Chamfering Machine Work?

What is gear chamfering machine?

Gear chamfering machines play an important role in gear machining and manufacturing; it is a process of finishing gear edges to create smooth transitions between angles, eliminating sharp edges, enhancing the aesthetics of gears, and ensuring proper gear meshing and smooth operation within the gear assembly.

How many types of gear chamfering machine processes are there?

1. Chamfering

The most common angle is the 45-degree angle cut, where a portion of material is removed from the gear tooth edge to form a flat angle. After the chamfering is completed, some burrs or rough surfaces may remain on the chamfered edges, which need to be removed with a deburring tool (brush) to make the chamfered surface smoother.

2. Rounding

The process of creating a small rounded transition area at the gear tooth edge and rounding the edge to a smooth finish. The addition of a rounded transition further reduces stress concentrations and improves the fatigue life of the gear, while also improving appearance. It is particularly suitable for gears that are subjected to high loads or high speeds, which are more susceptible to stress concentrations;

3. Fillet Chamfering

A composite treatment process characterized by gear chamfering and filleting, with simultaneous rounding and chamfering. Improves better stress distribution, ensures both ease and durability during assembly, and optimizes surface quality. Suitable for gears used in critical areas such as the aerospace and automotive industries.

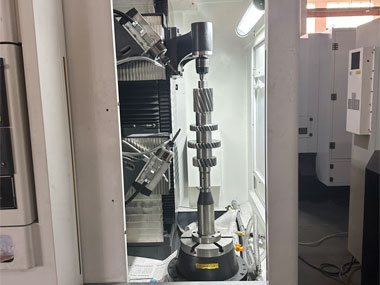

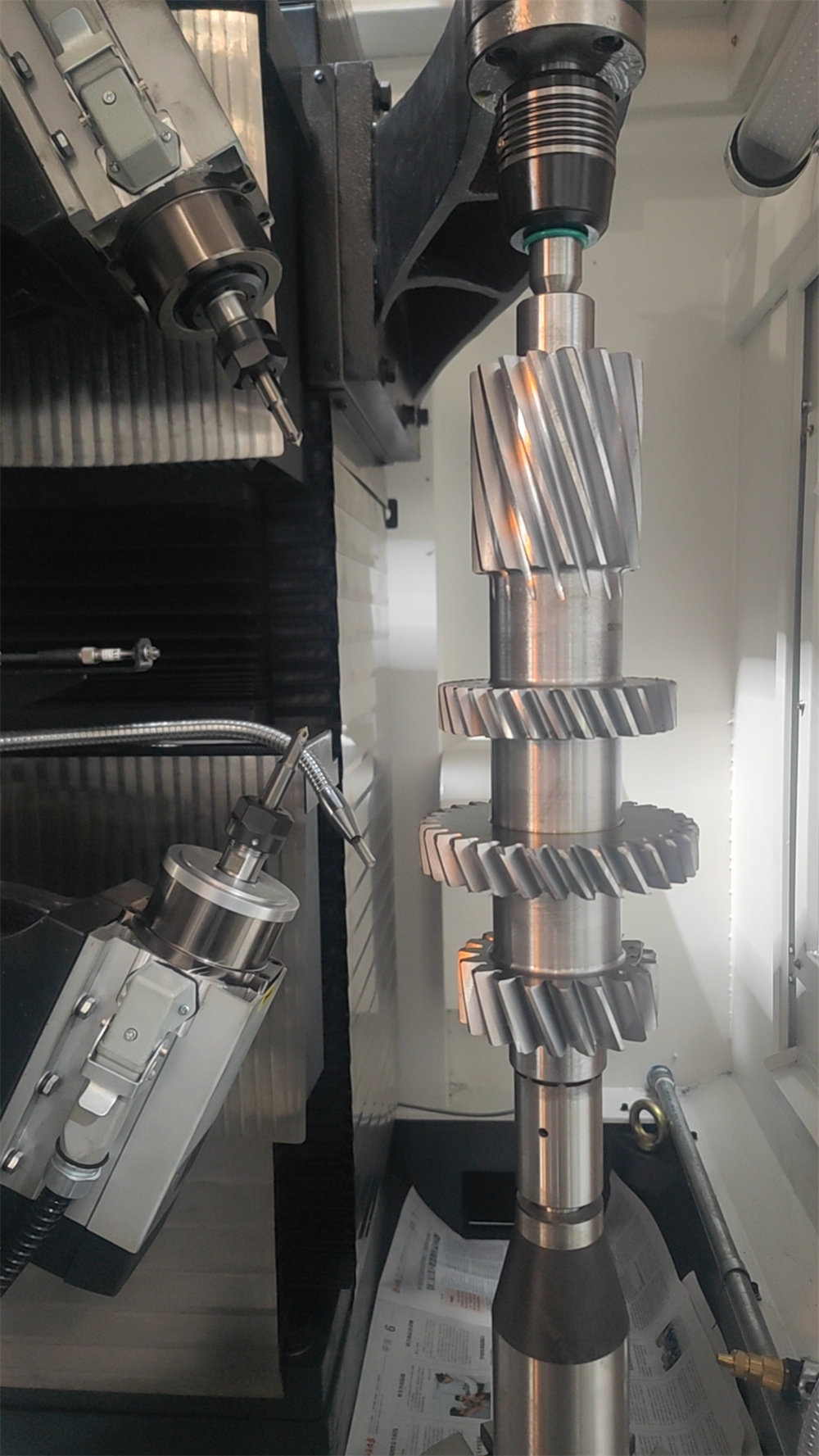

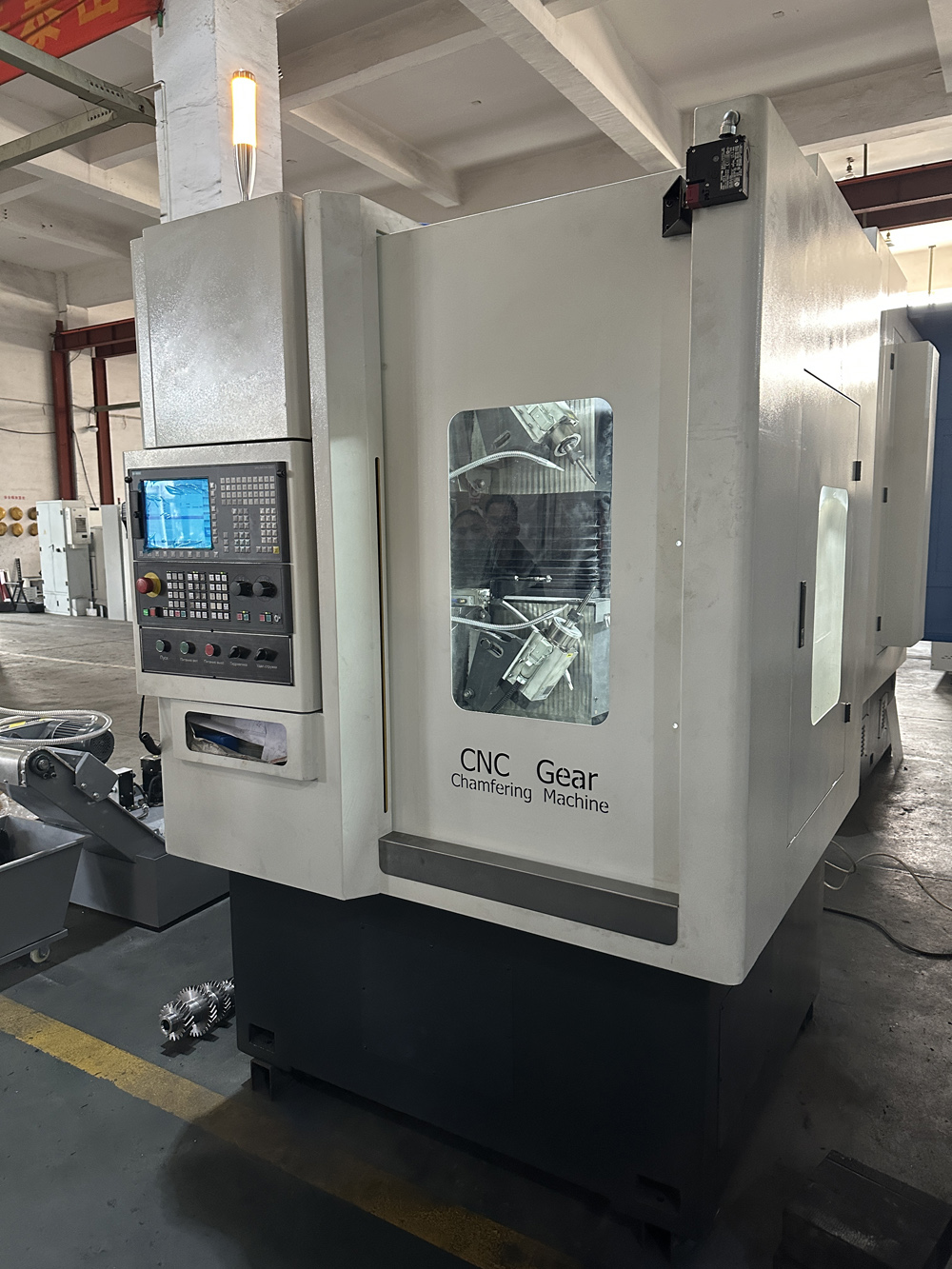

Our company has two types of chamfering machines, vertical and horizontal, as a comprehensive finishing system, it is capable of chamfering, fillet and fillet chamfering of any gears. Through online programming, the operator manually enters the adjustment parameters, and once the part has been loaded and verified to be free of errors, repeatability is achieved; the accuracy of the gear chamfering machine chamfering is the key, and the higher the accuracy, the better. If gears are not chamfered adequately, the sharp edges of the gears will slowly break off, the structure of the gears will be damaged, and meshing will be problematic; if it is a gear in a helicopter engine that fails, there is a great deal of danger.

When gears are chamfered properly, the entire assembly will perform optimally.

Applications for Gear Chamfering Machines

Gear chamfering machines are widely used in several industries due to their ability to effectively improve the assembly quality and operational performance of gears. Below is a detailed description of their applications:

1.Automotive:

Gears in automotive gearboxes, gears in drive systems require precise chamfering.

2.Aerospace:

In the aerospace industry, the reliability and durability of gears are of paramount importance. By chamfering, the risk of crack expansion can be significantly reduced, thus enhancing flight safety.

3.Construction Machinery:

Gears used in excavators, bulldozers and other construction machinery are often subjected to extreme loads, and good chamfering can extend their service life and reduce the need for maintenance.

4.Machine Tool Manufacturing:

One of the core components of a machine tool is the spindle gear, which requires high precision to ensure the quality of the workpiece. Gear chamfering machines provide these gears with the necessary edge preparation to ensure optimum performance.

5.Wind turbine gearboxes:

The gearboxes in wind turbines contain a large number of large gears that are subjected to enormous torque and shock loads. Chamfering can significantly improve their reliability and durability.

What are the benefits of a gear chamfering machine to a factory?

1. Enhance product quality:

Gear chamfering machine chamfering process can efficiently remove burrs generated during processing, effectively reduce the stress concentration at the gear tooth edge, reduce cracks;

2. Enhance the safety of assembly

The chamfered gears are easier to work with other parts, reducing scratches in the assembly process, improving assembly efficiency and enhancing the safety of the working environment;

3. Increase production efficiency:

Gear chamfering machine can be equipped with optional automated production line, which can realize continuous and rapid mass production, and greatly increase the working efficiency;

4. Reduce operating costs:

High-quality chamfering treatment, reduce the scrap rate caused by poor processing, directly reduce the waste of materials;

5. Comply with industry standards:

The use of professional gear chamfering machine can help factories to ensure that their products comply with international standards, which helps to enter specific markets and expand markets;

Summary

Gear chamfering machine can not only directly improve the performance and appearance of gear products, but also indirectly promote the overall operational efficiency and service level of the factory, which is a very valuable investment for high-end precision gear manufacturing companies. Gear chamfering machines can bring economic gains and long-term competitive advantages to factories.
