In the field of precision mechanical processing, external grinding machines play a crucial role. With advancements in technology and increasing demands for higher accuracy in manufacturing, automated CNC external grinding machines have become key equipment in modern factories for achieving high efficiency and quality production.

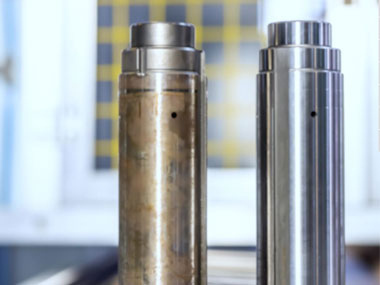

An external grinding machine is a type of machine tool used to process the outer surfaces of workpieces. It primarily achieves material removal through a rapidly rotating grinding wheel to meet required dimensional accuracy and surface finish. Essentially named for its cylindrical grinding spindle, these machines are controlled by a Computer Numerical Control (CNC) system. The grinding operations performed on a CNC external grinding machine involve pre-programming on a computer, after which the CNC system issues a series of commands to execute the operation. This programming process is known as CAD, standing for Computer-Aided Design.
Control System: Utilizing advanced CNC systems that precisely control the position and speed of the grinding wheel, ensuring stability and repeatability during the machining process.
Grinding Wheel Spindle: Responsible for supporting and driving the grinding wheel at high speeds; its rotational speed and power output directly impact the grinding performance.
Worktable: Used to secure the workpiece being machined, with some models featuring automatic loading and unloading devices to enhance productivity.
Measurement System: Equipped with either built-in or external measuring instruments such as laser distance meters or contact probes to monitor dimensions in real-time, ensuring product quality.

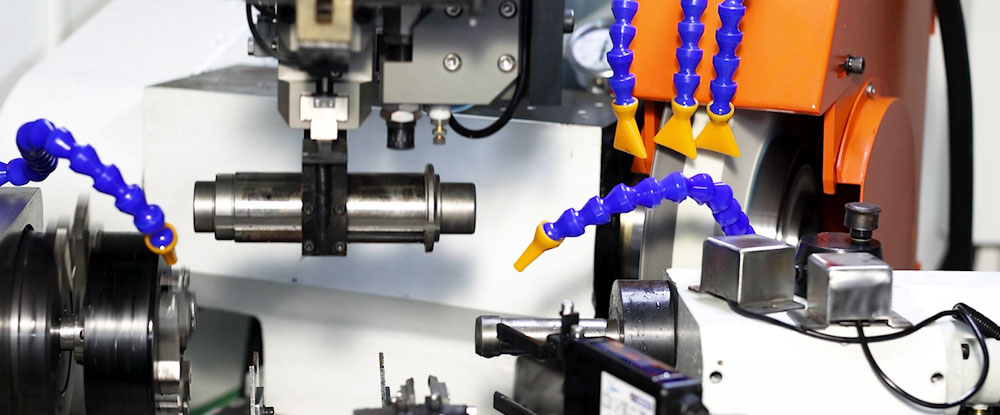

Cooling System: Provides necessary coolant spray to reduce heat generated during grinding, extending tool life and preventing workpiece deformation.
Chip Removal System: Effectively collects and processes waste chips produced during grinding to maintain a clean working environment.
Straight Feed Grinding: In this mode, the grinding wheel moves in a straight line along the axis of the workpiece, suitable for large-area uniform grinding of long shaft components. Its advantages include ease of programming and simplicity of operation, making it ideal for mass production.
Not suitable for complex shapes: If the workpiece surface has non-circular sections or other complex geometries, achieving optimal results with straight feed grinding can be challenging.
Potential vibration marks: Under certain conditions, especially when handling softer materials or irregular shapes, vibrations may leave marks affecting surface finish.
Angular Feed Grinding (also known as plunge grinding): The grinding wheel enters relative to the workpiece axis at an angle. This method allows for faster completion of complex shape processing, particularly useful for workpieces with steps or non-circular sections. Additionally, angular feed grinding improves surface finish due to more evenly distributed cutting forces.
Longer processing time: Compared to straight feed grinding, angular feed grinding requires more time to complete the same amount of work, especially for larger pieces.
Increased programming complexity: Achieving precise angular entry and multi-step processing increases programming difficulty and debugging effort.
Complex contour parts: For example, the connecting rod necks on engine crankshafts, cam profiles on camshafts, etc., which often contain various diameters and shape changes, are very suitable for angular feed grinding.
From early manual operations to today's highly integrated CNC systems, external grinding machines have undergone significant technological innovations. Early grinders relied on skilled workers for manual adjustments, whereas contemporary machines depend on sensor feedback and CAD/CAM technologies to achieve higher precision and lower costs.
External grinding machines are indispensable in meeting the stringent requirements for high-performance transmission systems across industries like high-speed trains, new energy vehicles, medical devices, and large wind turbines. Whether it’s the crankshaft and connecting rods of automotive engines, fine tubes in medical devices, or core components of large wind generators, all benefit from the precision machining services provided by external grinding machines. As new materials emerge and technical standards tighten, demand for external grinding machines continues to grow.

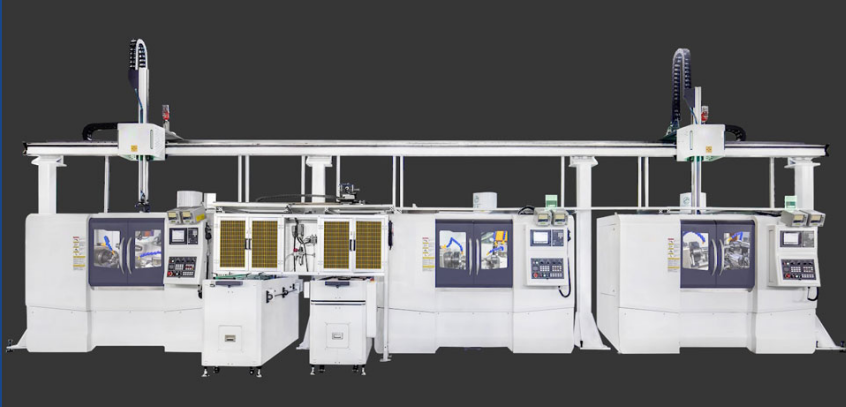

With the deepening concept of Industry 4.0, automated production lines are gradually becoming a new driver for industrial transformation and upgrading. Especially when external grinding machines are integrated into automated lines, they not only significantly boost production efficiency but also enable real-time monitoring and predictive maintenance through data connectivity. Equipped with remote monitoring systems, issues encountered at customer sites can be addressed remotely. Looking ahead, more companies will opt for highly automated external grinding machines to adapt to market changes and challenges.
In summary, external grinding machines are not only essential components of traditional mechanical processing but also indispensable forces driving the development of modern industry. From basic grinding functions to integrated advanced technologies offering comprehensive solutions, external grinding machines continue to evolve and innovate in step with the times.
